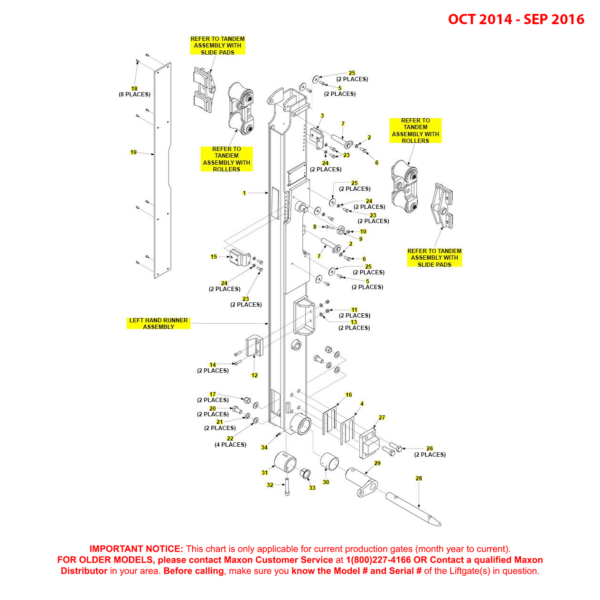

Maxon BMR (Oct 2014 - Sep 2016) Left Hand Runner Assembly Diagram

Maxon BMR (Oct 2014 – Sep 2016) Left Hand Runner Assembly Diagram

SKU: BMR-OCT14-SEP16-LHRA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 286235-01-100 - Runner Assembly BMR LH BLK W/Slide PadMaxon 286235-01-100 - Runner Assembly BMR LH BLK W/Slide Pad286235-01-100-MAXO$1,609.73
0Maxon 286235-01G-100 - Runner Assembly BMR LH GALV W/Slide PadMaxon 286235-01G-100 - Runner Assembly BMR LH GALV W/Slide Pad286235-01G-100-MAXO$3,599.70
0Maxon 286235-01G - Runner Assembly BMR LH GALVMaxon 286235-01G - Runner Assembly BMR LH GALV286235-01G-MAXO$3,079.05
1Maxon 286261-01G - Runner Weldment LH GALVMaxon 286261-01G - Runner Weldment LH GALV286261-01G-MAXO$2,132.33
2Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
3Maxon 287433-01 - Pad Assembly Upper LH RunnerMaxon 287433-01 - Pad Assembly Upper LH Runner287433-01-MAXO$42.23
4Maxon 288798-02 - Spacer .03 ThickMaxon 288798-02 - Spacer .03 Thick288798-02-MAXO$4.04
5Maxon 900763-04 - Screw BTN .31-18 X .75 SSMaxon 900763-04 - Screw BTN .31-18 X .75 SS900763-04-MAXO$0.78
6Maxon 900764-05 - Screw Hex Cap .38-16 X .88 Inch SSMaxon 900764-05 - Screw Hex Cap .38-16 X .88 Inch SS900764-05-MAXO$0.59
7Maxon 280067 - Arm WeldmentMaxon 280067 - Arm Weldment280067-MAXO$18.27
8Maxon 900004-8 - Screw Cap 1/4-20 X 2 Inch GR8 ZCMaxon 900004-8 - Screw Cap 1/4-20 X 2 Inch GR8 ZC900004-8-MAXO$0.53
9Maxon 269227-01 - Pin CollarMaxon 269227-01 - Pin Collar269227-01-MAXO$10.41
10Maxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SSMaxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SS903137-01-MAXO$0.48
11Maxon 903106-10 - Nut Nylon Insert Stop .313 -18 SSMaxon 903106-10 - Nut Nylon Insert Stop .313 -18 SS903106-10-MAXO$0.35
12Maxon 288940-01 - Bumper Platform StopMaxon 288940-01 - Bumper Platform Stop288940-01-MAXO$21.44
13Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
14Maxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch AlloyMaxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch Alloy900001-4-MAXO$1.97
15Maxon 287434-01 - Pad Assembly Bottom LH RunnerMaxon 287434-01 - Pad Assembly Bottom LH Runner287434-01-MAXO$41.76
16Maxon 288798-01 - Spacer .06 ThickMaxon 288798-01 - Spacer .06 Thick288798-01-MAXO$6.95
18Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565Maxon 904005-2 - Rivet - Blind Stainless Steel Dome - .187X.565904005-2-MAXO$0.72
19Maxon 253543 - Pad .28 DIAMaxon 253543 - Pad .28 DIA253543-MAXO$69.38
20Maxon 900055-1 - Screw Hex Head .625-11UNC X 1.25 InchMaxon 900055-1 - Screw Hex Head .625-11UNC X 1.25 Inch900055-1-MAXO$1.76
21Maxon 902019-9 - Washer Lock S/ST 1.073 OD X .641 ID InchMaxon 902019-9 - Washer Lock S/ST 1.073 OD X .641 ID Inch902019-9-MAXO$0.59
22Maxon 902000-18 - Flat Washer .625 .063 THKMaxon 902000-18 - Flat Washer .625 .063 THK902000-18-MAXO$0.38
23Maxon 901602-04 - Bolt Hex .313-18 X 0.75 Inch 18-8 SSMaxon 901602-04 - Bolt Hex .313-18 X 0.75 Inch 18-8 SS901602-04-MAXO$0.32
24Maxon 902019-4 - Washer Lock S/ST .583 OD X .322 ID InchMaxon 902019-4 - Washer Lock S/ST .583 OD X .322 ID Inch902019-4-MAXO$0.12
25Maxon 902008 - Washer Fender 1.5 X 13/32 X 1/16SSMaxon 902008 - Washer Fender 1.5 X 13/32 X 1/16SS902008-MAXO$0.78
26Maxon 900055-04 - Screw Hex Head .625-11UNC X 2 InchMaxon 900055-04 - Screw Hex Head .625-11UNC X 2 Inch900055-04-MAXO$1.77
28Maxon 280103 - Pin X 13 Inch Stainless SteelMaxon 280103 - Pin X 13 Inch Stainless Steel280103-MAXO$201.12
29Maxon 280623-01 - Coupling LH BMRsMaxon 280623-01 - Coupling LH BMRs280623-01-MAXO$306.56
30Maxon 908011-01 - BRG CMPST 2.25 X 2.50 X 2.13 Inch LGMaxon 908011-01 - BRG CMPST 2.25 X 2.50 X 2.13 Inch LG908011-01-MAXO$19.43
31Maxon 253696 - Pin Collar 2.31 ID X 2.75 LGMaxon 253696 - Pin Collar 2.31 ID X 2.75 LG253696-MAXO$75.54
32Maxon 908007-04 - Bearing Flanged 1.25 SHFT 1 Inch LGMaxon 908007-04 - Bearing Flanged 1.25 SHFT 1 Inch LG908007-04-MAXO$3.24
33Maxon 900037-11 - Screw SOCHD 1/2-20 X 3 GR8 ZCMaxon 900037-11 - Screw SOCHD 1/2-20 X 3 GR8 ZC900037-11-MAXO$2.90
34Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
