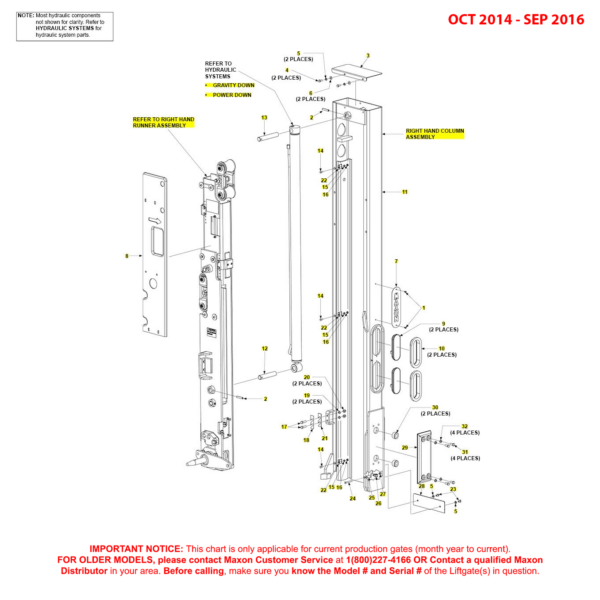

Maxon BMR (Oct 2014 - Sep 2016) Right Hand Column Assembly Diagram

Maxon BMR (Oct 2014 – Sep 2016) Right Hand Column Assembly Diagram

SKU: BMR-OCT14-SEP16-RHCA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 286320-01G - Column Assembly BMR44 RH 12V GD GALVMaxon 286320-01G - Column Assembly BMR44 RH 12V GD GALV286320-01G-MAXO$9,393.15
0Maxon 286320-02G - COL Assembly BMR66 RH 12V GD GALVMaxon 286320-02G - COL Assembly BMR66 RH 12V GD GALV286320-02G-MAXO$9,453.60
0Maxon 286320-12G-100 - Column Assembly BMR66 RH 12V PD GA W/Slide PadMaxon 286320-12G-100 - Column Assembly BMR66 RH 12V PD GA W/Slide Pad286320-12G-100-MAXO$9,294.68
0Maxon 286320-12G - Column Assembly BMR66 RH 12V PD GALVMaxon 286320-12G - Column Assembly BMR66 RH 12V PD GALV286320-12G-MAXO$9,544.28
1Maxon 207644 - Rivet BLND 0.19 X.58 DomeMaxon 207644 - Rivet BLND 0.19 X.58 Dome207644-MAXO$0.32
2Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
3Maxon 295744-12 - Cover RH Column Top GALVMaxon 295744-12 - Cover RH Column Top GALV295744-12-MAXO$18.74
4Maxon 901602-04 - Bolt Hex .313-18 X 0.75 Inch 18-8 SSMaxon 901602-04 - Bolt Hex .313-18 X 0.75 Inch 18-8 SS901602-04-MAXO$0.32
5Maxon 902019-4 - Washer Lock S/ST .583 OD X .322 ID InchMaxon 902019-4 - Washer Lock S/ST .583 OD X .322 ID Inch902019-4-MAXO$0.12
6Maxon 903409-02 - Washer Fend .34 X .75 OD Inch SSMaxon 903409-02 - Washer Fend .34 X .75 OD Inch SS903409-02-MAXO$0.20
7Maxon 260478 - Maxon VERT Plate 3 X 10.125 X .031 InchMaxon 260478 - Maxon VERT Plate 3 X 10.125 X .031 Inch260478-MAXO$23.52
8Maxon 286327-01 - Cover Column RHMaxon 286327-01 - Cover Column RH286327-01-MAXO$284.57
9Maxon 285371-02 - Lamp LED S/T and T Oval TRK-LITEMaxon 285371-02 - Lamp LED S/T and T Oval TRK-LITE285371-02-MAXO$63.53
10Maxon 261687-01 - GrommetMaxon 261687-01 - Grommet261687-01-MAXO$4.41
11Maxon 286241-01G - Column Weldment RH GALVMaxon 286241-01G - Column Weldment RH GALV286241-01G-MAXO$1,924.65
12Maxon 268068-05 - Pin SST 1 DIA X 5.38 Inch LGMaxon 268068-05 - Pin SST 1 DIA X 5.38 Inch LG268068-05-MAXO$35.61
13Maxon 268068-06 - Pin SST 1 DIA X 6.32 Inch LGMaxon 268068-06 - Pin SST 1 DIA X 6.32 Inch LG268068-06-MAXO$43.14
14Maxon 900711-03 - Screw SOC FL .25-20 X .75 Inch SSMaxon 900711-03 - Screw SOC FL .25-20 X .75 Inch SS900711-03-MAXO$0.30
15Maxon 902019-3 - Washer Lock S/ST .487 OD X .260 ID InchMaxon 902019-3 - Washer Lock S/ST .487 OD X .260 ID Inch902019-3-MAXO$0.12
16Maxon 903107-03 - Nut Hex .25-20 UNC SSMaxon 903107-03 - Nut Hex .25-20 UNC SS903107-03-MAXO$0.20
17Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZCMaxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC900014-5-MAXO$0.72
18Maxon 288799-01 - Spacer .06 ThickMaxon 288799-01 - Spacer .06 Thick288799-01-MAXO$4.71
19Maxon 903447-02 - Flat Washer .375 X .063 Inch THK SSMaxon 903447-02 - Flat Washer .375 X .063 Inch THK SS903447-02-MAXO$0.17
20Maxon 903134-01 - Nut Nylon Insert Stop .375-16 SSMaxon 903134-01 - Nut Nylon Insert Stop .375-16 SS903134-01-MAXO$0.38
21Maxon 288799-02 - Spacer .03 ThickMaxon 288799-02 - Spacer .03 Thick288799-02-MAXO$4.25
22Maxon 286276-01 - ClampMaxon 286276-01 - Clamp286276-01-MAXO$6.54
23Maxon 900009-4 - Screw Cap 5/16-18 X 1/2 Inch GR8 ZCMaxon 900009-4 - Screw Cap 5/16-18 X 1/2 Inch GR8 ZC900009-4-MAXO$0.27
24Maxon 260299 - Screw MACH 1/4-20 X 2.25 FLSL ZCMaxon 260299 - Screw MACH 1/4-20 X 2.25 FLSL ZC260299-MAXO$0.62
25Maxon 253621 - Bushing .50 O.D. X .049 W X 1.00LGMaxon 253621 - Bushing .50 O.D. X .049 W X 1.00LG253621-MAXO$1.50
26Maxon 224006 - Clamp #6 Rubber LoomMaxon 224006 - Clamp #6 Rubber Loom224006-MAXO$1.34
27Maxon 901000 - Nylon Nut 1/4-20 Inch ZincMaxon 901000 - Nylon Nut 1/4-20 Inch Zinc901000-MAXO$0.15
28Maxon 286265-01 - CoverMaxon 286265-01 - Cover286265-01-MAXO$19.59
29Maxon 286294-01 - Loading Dock Bumper BlackMaxon 286294-01 - Loading Dock Bumper Black286294-01-MAXO$78.15
31Maxon 900764-05 - Screw Hex Cap .38-16 X .88 Inch SSMaxon 900764-05 - Screw Hex Cap .38-16 X .88 Inch SS900764-05-MAXO$0.59
32Maxon 902019-5 - Washer Lock S/ST .680 OD X .385 ID InchMaxon 902019-5 - Washer Lock S/ST .680 OD X .385 ID Inch902019-5-MAXO$0.45

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
