Maxon BMR (Oct 2016 - Present) Aluminum Retention Ramp Assembly For Aluminum Platform

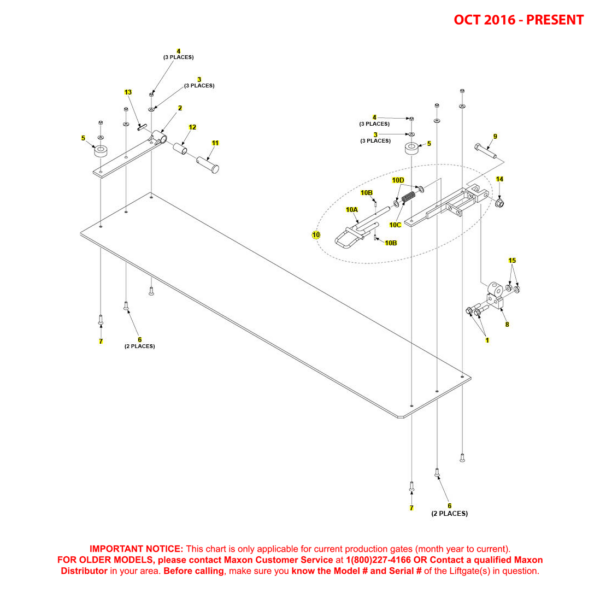

Maxon BMR (Oct 2016 – Present) Aluminum Retention Ramp Assembly For Aluminum Platform

SKU: BMR-OCT16-PRES-ALRRA-ALPF-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 286834-80 - 16 Inch ARR For 80 Inch AL F/OMaxon 286834-80 - 16 Inch ARR For 80 Inch AL F/O286834-80-MAXO$1,605.83
0Maxon 286834-85 - 16 Inch ARR For 85 Inch AL F/OMaxon 286834-85 - 16 Inch ARR For 85 Inch AL F/O286834-85-MAXO$1,537.58
1Maxon 901024-3 - Bolt Hex Frame .5-13 X 2.25 Inch LGMaxon 901024-3 - Bolt Hex Frame .5-13 X 2.25 Inch LG901024-3-MAXO$5.97
2Maxon 253526-01 - Hinge Arm Weldment L/H GALVMaxon 253526-01 - Hinge Arm Weldment L/H GALV253526-01-MAXO$76.35
3Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18
5Maxon 905363-01 - Rubber Bumper 2.0 X .88 InchMaxon 905363-01 - Rubber Bumper 2.0 X .88 Inch905363-01-MAXO$5.15
6Maxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZCMaxon 900040-5 - Screw FLHD SOC 3/8-16 X 1-1/4ZC900040-5-MAXO$1.47
7Maxon 900040-6 - Screw FLHD SOC 3/8-16 X 1-1/2ZCMaxon 900040-6 - Screw FLHD SOC 3/8-16 X 1-1/2ZC900040-6-MAXO$1.50
8Maxon 287530-02 - Hinge For ARR Casting Zinc PlateMaxon 287530-02 - Hinge For ARR Casting Zinc Plate287530-02-MAXO$144.12
9Maxon 900055-11 - Screw Hex Head .625-11UNC X 3.75 InchMaxon 900055-11 - Screw Hex Head .625-11UNC X 3.75 Inch900055-11-MAXO$3.23
10Maxon 287528-01 - Arm Assembly ARR RHMaxon 287528-01 - Arm Assembly ARR RH287528-01-MAXO$193.56
10Maxon 287575-01 - Pin-Locking Weldment ARRMaxon 287575-01 - Pin-Locking Weldment ARR287575-01-MAXO$53.91
10Maxon 903434-13 - Washer Flat M16 SSMaxon 903434-13 - Washer Flat M16 SS903434-13-MAXO$0.72
10Maxon 904719-09 - Pin Roll .188 X 1 Inch LG SSMaxon 904719-09 - Pin Roll .188 X 1 Inch LG SS904719-09-MAXO$0.38
10Maxon 908209-01 - Spring COMPMaxon 908209-01 - Spring COMP908209-01-MAXO$5.76
11Maxon 253528 - PinMaxon 253528 - Pin253528-MAXO$42.69
12Maxon 253541 - Bearing Self Lube 1X2Maxon 253541 - Bearing Self Lube 1X2253541-MAXO$22.46
13Maxon 904717-05 - Pin Roll .38 X 1.75 ZincMaxon 904717-05 - Pin Roll .38 X 1.75 Zinc904717-05-MAXO$0.98
14Maxon 901023-04 - Flange Lock Nut 63-11 ZCMaxon 901023-04 - Flange Lock Nut 63-11 ZC901023-04-MAXO$1.82
15Maxon 901023 - Flange Lock NutMaxon 901023 - Flange Lock Nut901023-MAXO$1.29

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
