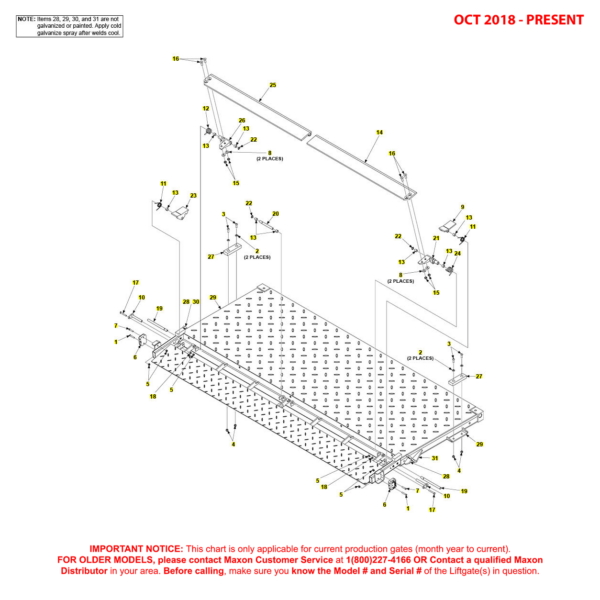

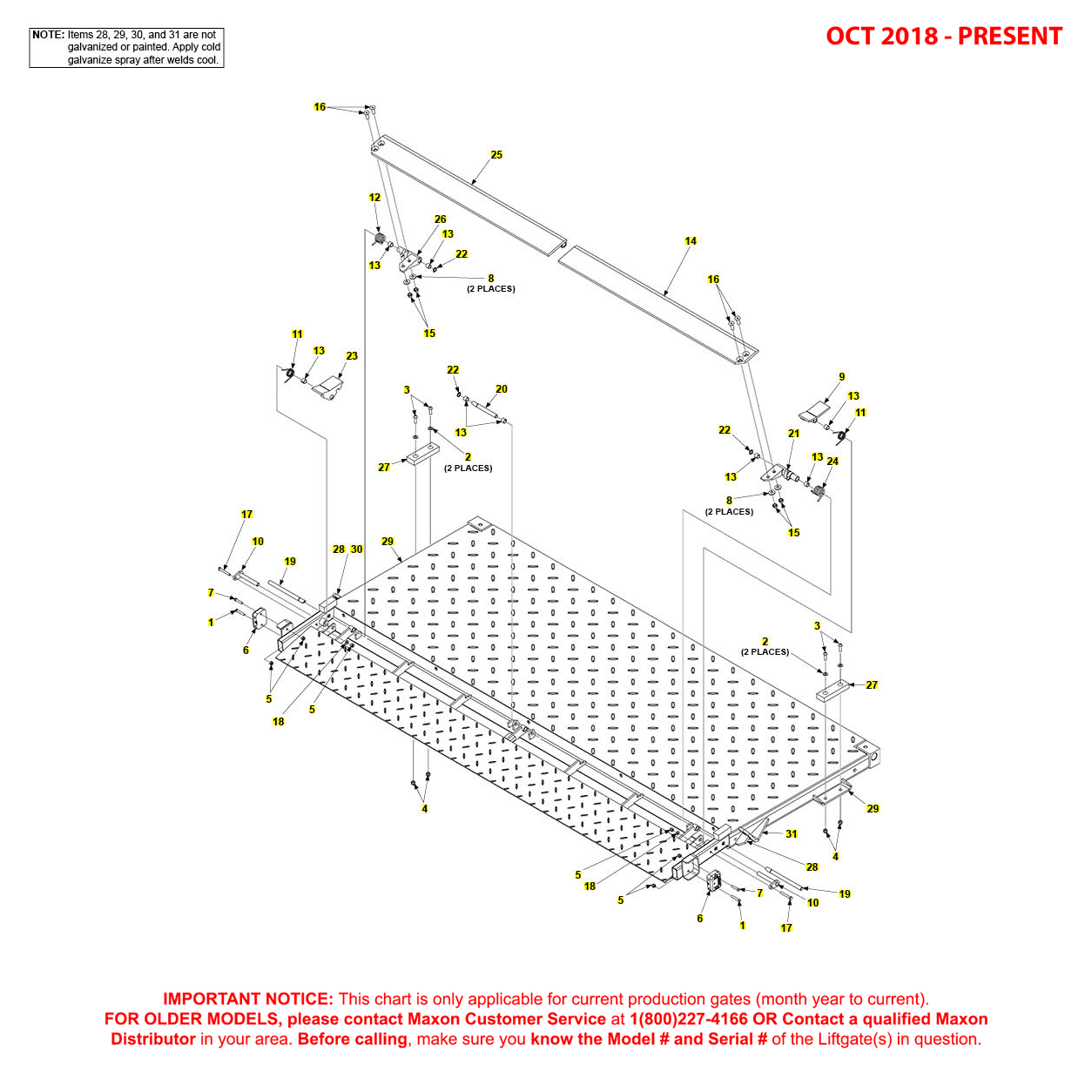

Maxon BMR (Oct 2018 - Present) Steel Flipover With Dual Cart Stops Diagram

Maxon BMR (Oct 2018 – Present) Steel Flipover With Dual Cart Stops Diagram

SKU: BMR-OCT18-PRES-SFO-DCS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 900719-09 - Screw Button .25-20 X 1.5 Inch SSMaxon 900719-09 - Screw Button .25-20 X 1.5 Inch SS900719-09-MAXO$0.54
2Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
3Maxon 900001-3 - Screw BUT 5/16-18 X 1 Inch AlloyMaxon 900001-3 - Screw BUT 5/16-18 X 1 Inch Alloy900001-3-MAXO$1.83
4Maxon 901001 - Nut - Nylon - 5/16-18 ZincMaxon 901001 - Nut - Nylon - 5/16-18 Zinc901001-MAXO$0.18
5Maxon 901000 - Nylon Nut 1/4-20 Inch ZincMaxon 901000 - Nylon Nut 1/4-20 Inch Zinc901000-MAXO$0.15
6Maxon 907362-01 - Flashing Safety LightMaxon 907362-01 - Flashing Safety Light907362-01-MAXO$96.99
7Maxon 900719-08 - Button Screw .25-20 X 1.25 Inch SSMaxon 900719-08 - Button Screw .25-20 X 1.25 Inch SS900719-08-MAXO$0.51
8Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18
9Maxon 260360-01 - Locking Hook L/H PaintedMaxon 260360-01 - Locking Hook L/H Painted260360-01-MAXO$254.75
10Maxon 261693 - Pin Locking Hook Support WeldmentMaxon 261693 - Pin Locking Hook Support Weldment261693-MAXO$17.01
11Maxon 252460 - Spring Torsion .095 X 3.5 LH 302SSMaxon 252460 - Spring Torsion .095 X 3.5 LH 302SS252460-MAXO$10.85
12Maxon 202528-02 - Spring Torsion Cart Stop R/SideMaxon 202528-02 - Spring Torsion Cart Stop R/Side202528-02-MAXO$63.84
13Maxon 253542 - Bearing Self Lube 1/2 X 1/2 InchMaxon 253542 - Bearing Self Lube 1/2 X 1/2 Inch253542-MAXO$13.04
14Maxon 253896 - CRT/ST Dual 3/8 AL D/PL RH 80 Inch RMPMaxon 253896 - CRT/ST Dual 3/8 AL D/PL RH 80 Inch RMP253896-MAXO$269.66
16Maxon 900061-5 - Flathead Screw SOC .375-16 1.25 Inch LG Stainless SteelMaxon 900061-5 - Flathead Screw SOC .375-16 1.25 Inch LG Stainless Steel900061-5-MAXO$2.36
17Maxon 260558 - Bolt Hex 1/4-20 X 2 GR8 ZCMaxon 260558 - Bolt Hex 1/4-20 X 2 GR8 ZC260558-MAXO$0.80
18Maxon 902013-09 - Washer 1/4 Inch Zinc - Same 030564Maxon 902013-09 - Washer 1/4 Inch Zinc - Same 030564902013-09-MAXO$0.11
19Maxon 261496-02 - Pin 7.1 Inch LGMaxon 261496-02 - Pin 7.1 Inch LG261496-02-MAXO$93.71
20Maxon 261496-01 - Pin 4.8 Inch LGMaxon 261496-01 - Pin 4.8 Inch LG261496-01-MAXO$84.35
21Maxon 260321 - Locking Cam R/HMaxon 260321 - Locking Cam R/H260321-MAXO$256.43
22Maxon 260930-01 - Retaining Ring .50 X .050 SS HDMaxon 260930-01 - Retaining Ring .50 X .050 SS HD260930-01-MAXO$8.67
23Maxon 260360 - Locking Hook R/H PaintedMaxon 260360 - Locking Hook R/H Painted260360-MAXO$254.75
24Maxon 202528-01 - Spring Torsion Cart Stop L/SideMaxon 202528-01 - Spring Torsion Cart Stop L/Side202528-01-MAXO$63.84
25Maxon 253896-01 - CRT/ST Dual 3/8 AL D/PL LH 80 Inch RMPMaxon 253896-01 - CRT/ST Dual 3/8 AL D/PL LH 80 Inch RMP253896-01-MAXO$269.66
26Maxon 260321-01 - Locking Cam L/HMaxon 260321-01 - Locking Cam L/H260321-01-MAXO$256.43
27Maxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 HoleMaxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 Hole225278-02-MAXO$24.86
29Maxon 287579-01 - Bracket Bumper HolderMaxon 287579-01 - Bracket Bumper Holder287579-01-MAXO$57.93

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
