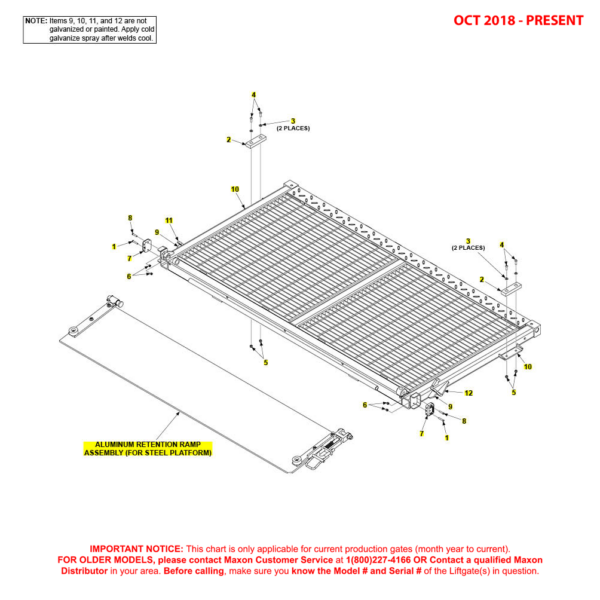

Maxon BMR (Oct 2018 - Present) Steel Platform Flipover And Chain Assembly With Fixed Ramp Diagram From ITEParts.com

ID	Title	SKU	Price
0	Maxon 298815-613G - F/O Assembly GR-ST 85 X 42+16 ARR GALV BMR	298815-613G-MAXO	$5,659.88
1	Maxon 900719-09 - Screw Button .25-20 X 1.5 Inch SS	900719-09-MAXO	$0.54
2	Maxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 Hole	225278-02-MAXO	$24.86
3	Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZC	902013-10-MAXO	$0.18
4	Maxon 900001-3 - Screw BUT 5/16-18 X 1 Inch Alloy	900001-3-MAXO	$1.83
5	Maxon 901001 - Nut - Nylon - 5/16-18 Zinc	901001-MAXO	$0.18
6	Maxon 903137-01 - Nut - Nylon Insert Stop - .25-20 SS	903137-01-MAXO	$0.48
7	Maxon 907362-01 - Flashing Safety Light	907362-01-MAXO	$96.99
8	Maxon 900719-08 - Button Screw .25-20 X 1.25 Inch SS	900719-08-MAXO	$0.51
10	Maxon 287579-01 - Bracket Bumper Holder	287579-01-MAXO	$57.93

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
