| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 2 |  | Maxon 253516 - Bumper 2 X 1 Inch Rubber | 253516-MAXO | $21.08 | ||
| 3 | | Maxon 260181-01 - Bolt .75-10 UNC X 1.13 SMH X AL ZC | 260181-01-MAXO | $17.51 | ||
| 4 | | Maxon 900055-14 - Screw Hex Head .625-11UNC X 4.5 Inch | 900055-14-MAXO | $4.25 | ||
| 5 | | Maxon 269222-01G - Opener Assembly LH 30+30 P/F GALV | 269222-01G-MAXO | $196.29 | ||
| 5 | | Maxon 269222-03G - Opener Assembly LH 36+36 P/F GALV | 269222-03G-MAXO | $196.29 | ||
| 5 | | Maxon 269222-05G - Opener Assembly LH 42+42 P/F GALV | 269222-05G-MAXO | $177.66 | ||
| 6 | | Maxon 260917-05 - Bearing Self Lube 3/4 X 1-3/8 Inch | 260917-05-MAXO | $20.16 | ||
| 6 | | Maxon 269222-02G - Opener Assembly RH 30+30 P/F GALV | 269222-02G-MAXO | $196.29 | ||
| 6 | | Maxon 269222-04G - Opener Assembly RH 36+36 P/F GALV | 269222-04G-MAXO | $196.29 | ||
| 6 | | Maxon 269222-06G - Opener Assembly RH 42+42 P/F GALV | 269222-06G-MAXO | $177.66 | ||
| 6 | | Maxon 280644-01 - Anchor Shackle | 280644-01-MAXO | $15.84 | ||
| 6 | | Maxon 905136-01 - Pin Clevis .500 X 1.906 Inch GR8 | 905136-01-MAXO | $4.98 | ||
| 7 | | Maxon 280195 - Pin | 280195-MAXO | $22.86 | ||
| 8 | | Maxon 285963-01 - Pin Hinge Assembly 19.76 | 285963-01-MAXO | $56.31 | ||
| 9 | | Maxon 282621-03 - Connector Bar Weldment 102 Inch GALV | 282621-03-MAXO | $1,198.28 | ||
| 9 | | Maxon 282621-04 - Connector Bar Weldment 96 Inch GALV | 282621-04-MAXO | $1,153.43 | ||
| 10 | | Maxon 282854-01 - U-Bolt | 282854-01-MAXO | $6.29 | ||
| 11 | | Maxon 311046-10 - Link Spacer 1 LG | 311046-10-MAXO | $8.37 | ||
| 12 | | Maxon 311046-11 - Link Spacer .50 LG | 311046-11-MAXO | $7.44 | ||
| 13 | | Maxon 903136-05 - Flange Lock Nut .63-11 PL | 903136-05-MAXO | $1.55 |
BMRA (Sep 2013 - Dec 2015) Diagrams

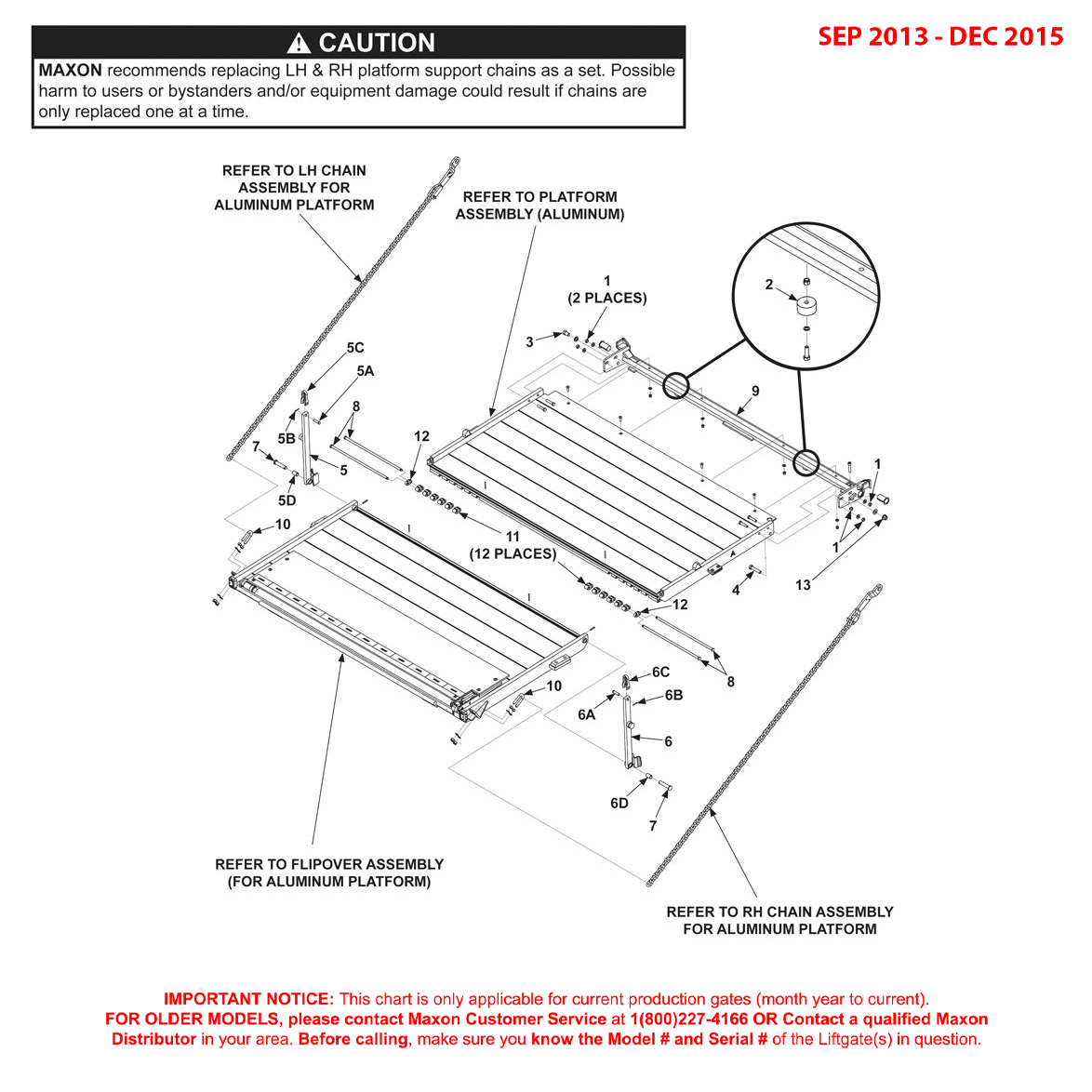

Maxon BMRA (Sep 2013 – Dec 2015) Aluminum Platform Flipover And Chain Assembly Diagram – 1A
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
