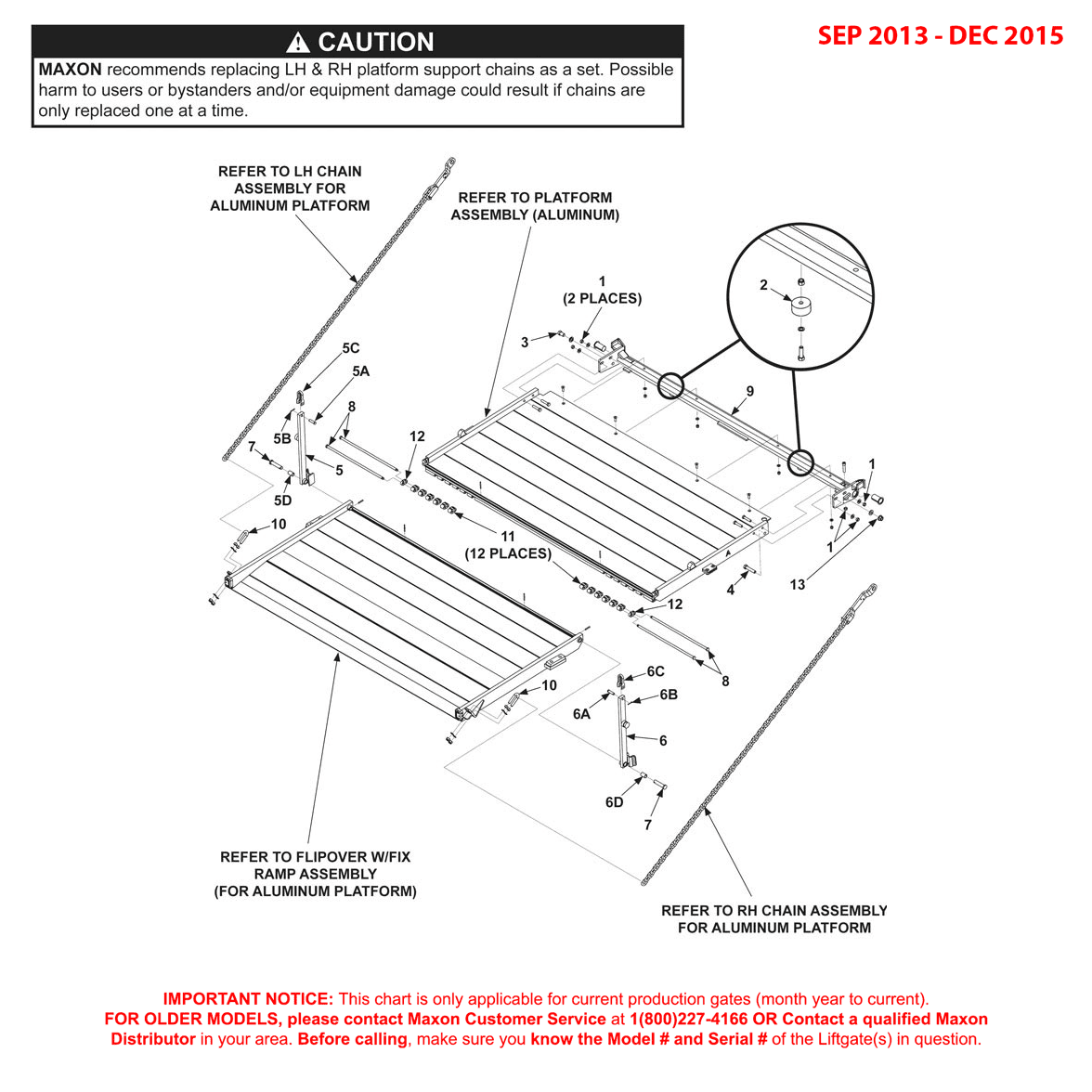

Maxon BMRA (Sep 2013 - Dec 2015) Aluminum Platform Flipover And Chain Assembly Diagram - 2A

Maxon BMRA (Sep 2013 – Dec 2015) Aluminum Platform Flipover And Chain Assembly Diagram – 2A

SKU: BMRA-SEP13-DEC15-ALPFFOCA-DG2A Category:
ID Image Title SKU Price Quantity Add to Cart
2Maxon 253516 - Bumper 2 X 1 Inch RubberMaxon 253516 - Bumper 2 X 1 Inch Rubber253516-MAXO$21.08
3Maxon 260181-01 - Bolt .75-10 UNC X 1.13 SMH X AL ZCMaxon 260181-01 - Bolt .75-10 UNC X 1.13 SMH X AL ZC260181-01-MAXO$17.51
4Maxon 900055-14 - Screw Hex Head .625-11UNC X 4.5 InchMaxon 900055-14 - Screw Hex Head .625-11UNC X 4.5 Inch900055-14-MAXO$4.25
5Maxon 269222-01G - Opener Assembly LH 30+30 P/F GALVMaxon 269222-01G - Opener Assembly LH 30+30 P/F GALV269222-01G-MAXO$196.29
5Maxon 269222-03G - Opener Assembly LH 36+36 P/F GALVMaxon 269222-03G - Opener Assembly LH 36+36 P/F GALV269222-03G-MAXO$196.29
5Maxon 269222-05G - Opener Assembly LH 42+42 P/F GALVMaxon 269222-05G - Opener Assembly LH 42+42 P/F GALV269222-05G-MAXO$177.66
6Maxon 260917-05 - Bearing Self Lube 3/4 X 1-3/8 InchMaxon 260917-05 - Bearing Self Lube 3/4 X 1-3/8 Inch260917-05-MAXO$20.16
6Maxon 269222-02G - Opener Assembly RH 30+30 P/F GALVMaxon 269222-02G - Opener Assembly RH 30+30 P/F GALV269222-02G-MAXO$196.29
6Maxon 269222-04G - Opener Assembly RH 36+36 P/F GALVMaxon 269222-04G - Opener Assembly RH 36+36 P/F GALV269222-04G-MAXO$196.29
6Maxon 269222-06G - Opener Assembly RH 42+42 P/F GALVMaxon 269222-06G - Opener Assembly RH 42+42 P/F GALV269222-06G-MAXO$177.66
6Maxon 280644-01 - Anchor ShackleMaxon 280644-01 - Anchor Shackle280644-01-MAXO$15.84
6Maxon 905136-01 - Pin Clevis .500 X 1.906 Inch GR8Maxon 905136-01 - Pin Clevis .500 X 1.906 Inch GR8905136-01-MAXO$4.98
7Maxon 280195 - PinMaxon 280195 - Pin280195-MAXO$22.86
8Maxon 285963-01 - Pin Hinge Assembly 19.76Maxon 285963-01 - Pin Hinge Assembly 19.76285963-01-MAXO$56.31
9Maxon 282621-03 - Connector Bar Weldment 102 Inch GALVMaxon 282621-03 - Connector Bar Weldment 102 Inch GALV282621-03-MAXO$1,198.28
9Maxon 282621-04 - Connector Bar Weldment 96 Inch GALVMaxon 282621-04 - Connector Bar Weldment 96 Inch GALV282621-04-MAXO$1,153.43
10Maxon 282854-01 - U-BoltMaxon 282854-01 - U-Bolt282854-01-MAXO$6.29
11Maxon 311046-10 - Link Spacer 1 LGMaxon 311046-10 - Link Spacer 1 LG311046-10-MAXO$8.37
12Maxon 311046-11 - Link Spacer .50 LGMaxon 311046-11 - Link Spacer .50 LG311046-11-MAXO$7.44
13Maxon 903136-05 - Flange Lock Nut .63-11 PLMaxon 903136-05 - Flange Lock Nut .63-11 PL903136-05-MAXO$1.55

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
