Maxon BMRA (Sep 2013 - Dec 2015) Battery Box Electrical Components Diagram

BMR-A-CS Diagrams, BMRA (Sep 2013 - Dec 2015) Diagrams

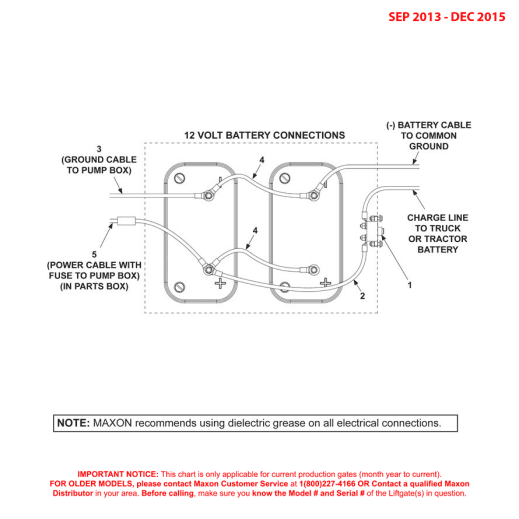

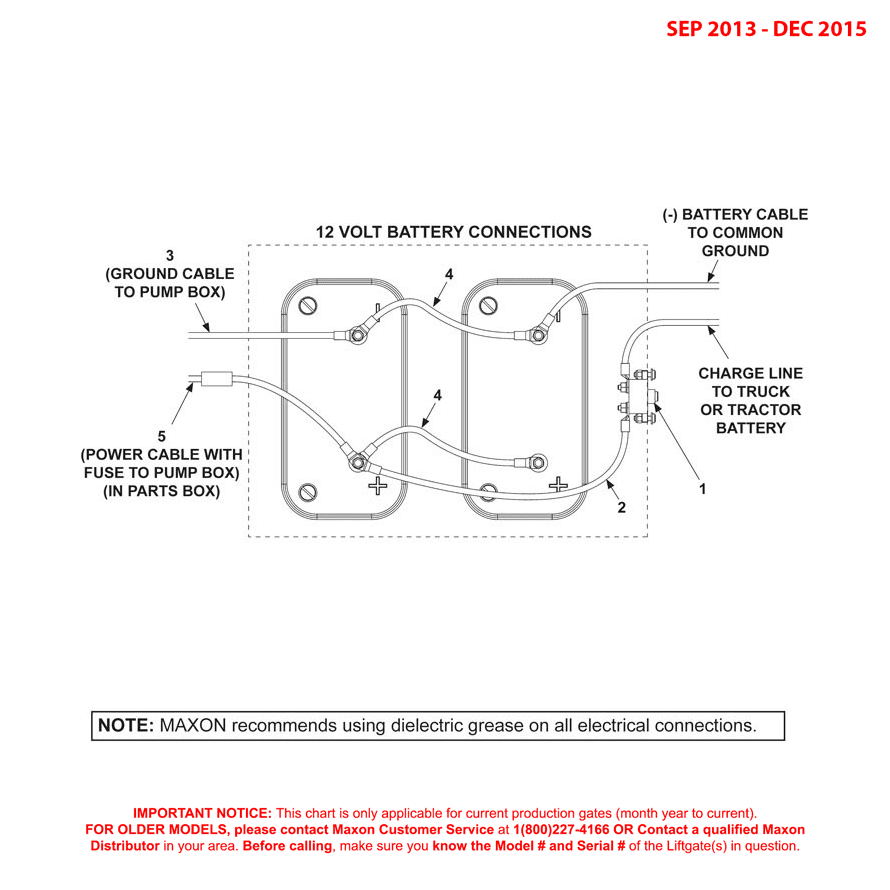

Maxon BMRA (Sep 2013 – Dec 2015) Battery Box Electrical Components Diagram

SKU: BMRA-SEP13-DEC15-BBEC-DG Categories: BMR-A-CS Diagrams, BMRA (Sep 2013 - Dec 2015) Diagrams

Options
Description

ID	Image	Title	SKU	Price	Quantity	Add to Cart
1		Maxon 221736 - Circuit Breaker 150A MAN RESET	221736-MAXO	$94.17
2		Maxon 268226-07 - Cable Assembly 2GA .31 / .38 RING 18 Inch	268226-07-MAXO	$29.16
3		Maxon 268226-06 - Cable Assembly 2GA .31 / .38 RING 74 Inch	268226-06-MAXO	$64.22
4		Maxon 251871-14 - Cable 2 GA Assembly 8 Inch	251871-14-MAXO	$29.16
5		Maxon 285487-02 - Cable Assembly 2GA Red 200AMP 3.5FT	285487-02-MAXO	$96.98

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
