Maxon BMRA (Sep 2013 - Dec 2015) Carrier Guard Mounting Diagram

BMRA (Sep 2013 - Dec 2015) Diagrams

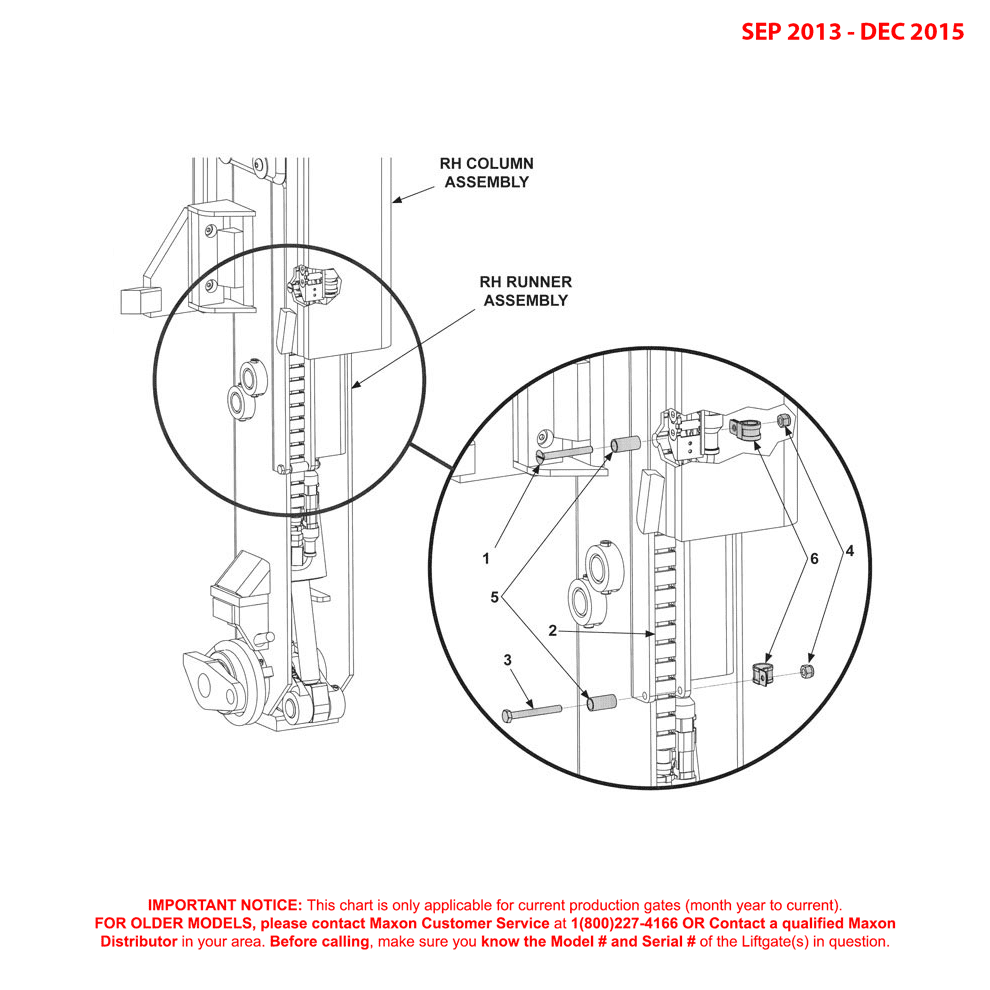

Maxon BMRA (Sep 2013 – Dec 2015) Carrier Guard Mounting Diagram

SKU: BMRA-SEP13-DEC15-CGM-DG Category: BMRA (Sep 2013 - Dec 2015) Diagrams

Options
Description

ID	Image	Title	SKU	Price	Quantity	Add to Cart
1		Maxon 260299 - Screw MACH 1/4-20 X 2.25 FLSL ZC	260299-MAXO	$0.62
3		Maxon 900000-9 - Bolt HX 1/4-20 X 2-1/4 GR8 ZC	900000-9-MAXO	$0.78
4		Maxon 901000 - Nylon Nut 1/4-20 Inch Zinc	901000-MAXO	$0.15
5		Maxon 253621 - Bushing .50 O.D. X .049 W X 1.00LG	253621-MAXO	$1.50
6		Maxon 214663 - Clamp #8 Rubber Loom	214663-MAXO	$0.87

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
