Maxon BMRA (Sep 2013 - Dec 2015) Electrical Components For Dual Pump Box Diagram
,

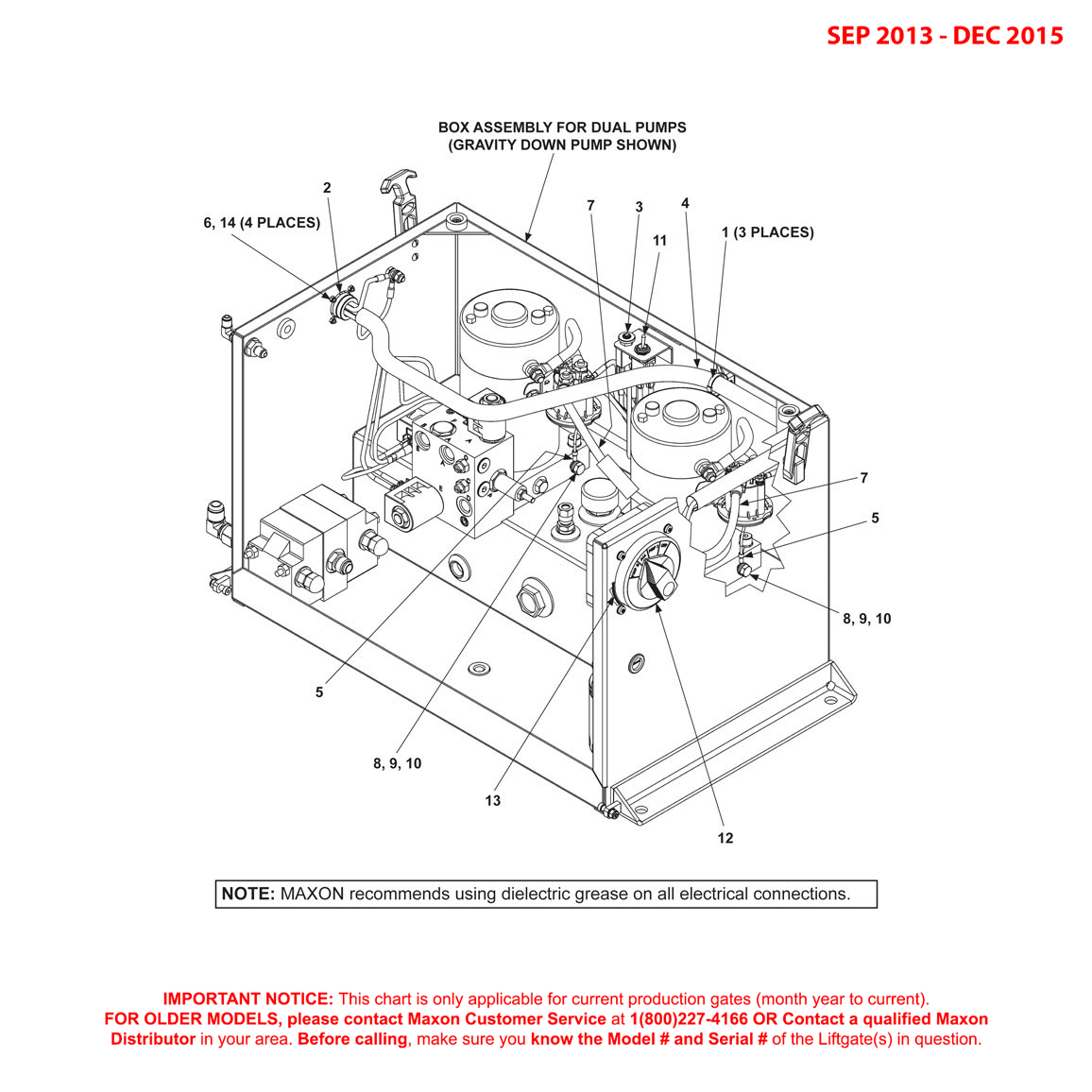

Maxon BMRA (Sep 2013 – Dec 2015) Electrical Components For Dual Pump Box Diagram

SKU: BMRA-SEP13-DEC15-EC-DPB-DG Categories: ,
ID Image Title SKU Price Quantity Add to Cart
1Maxon 205780 - Tie Plastic 7 Inch (50 LB)Maxon 205780 - Tie Plastic 7 Inch (50 LB)205780-MAXO$0.30
2Maxon 263802-02 - Gasket Connector 6 PinMaxon 263802-02 - Gasket Connector 6 Pin263802-02-MAXO$2.42
3Maxon 264179 - Circuit Breaker 10AMP EXT MTMaxon 264179 - Circuit Breaker 10AMP EXT MT264179-MAXO$22.80
4Maxon 283062-01 - Harness Dual Pump P/D BMRAMaxon 283062-01 - Harness Dual Pump P/D BMRA283062-01-MAXO$239.22
4Maxon 283072-01 - Harness Dual Pump G/D BMRAMaxon 283072-01 - Harness Dual Pump G/D BMRA283072-01-MAXO$233.09
5Maxon 283312-01 - Wire Assembly 16GA #10/.31 Ring 9 InchMaxon 283312-01 - Wire Assembly 16GA #10/.31 Ring 9 Inch283312-01-MAXO$13.19
6Maxon 901007 - Nut Nylon .112-40 ZincMaxon 901007 - Nut Nylon .112-40 Zinc901007-MAXO$0.11
7Maxon 284416-05 - Cable Assembly 2GA Red 175AMP 1.4FMaxon 284416-05 - Cable Assembly 2GA Red 175AMP 1.4F284416-05-MAXO$75.96
8Maxon 900009-1 - Screw Cap 5/16-18 X 5/8 Inch GR8 ZCMaxon 900009-1 - Screw Cap 5/16-18 X 5/8 Inch GR8 ZC900009-1-MAXO$0.30
9Maxon 902000-8 - Flat Washer - .312 .063 THKMaxon 902000-8 - Flat Washer - .312 .063 THK902000-8-MAXO$0.32
10Maxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZCMaxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZC902011-3-MAXO$0.11
11Maxon 906577-01 - TGL SW SP 2 POSNMaxon 906577-01 - TGL SW SP 2 POSN906577-01-MAXO$74.22
12Maxon 906590-01 - Switch Master DISCONN D/PumpMaxon 906590-01 - Switch Master DISCONN D/Pump906590-01-MAXO$106.20
13Maxon 906591-01 - O-Ring Master Disc SwitchMaxon 906591-01 - O-Ring Master Disc Switch906591-01-MAXO$2.34
14Maxon 900709-08 - Screw PH Pan HD 4-40 X .5 SSMaxon 900709-08 - Screw PH Pan HD 4-40 X .5 SS900709-08-MAXO$0.12

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
