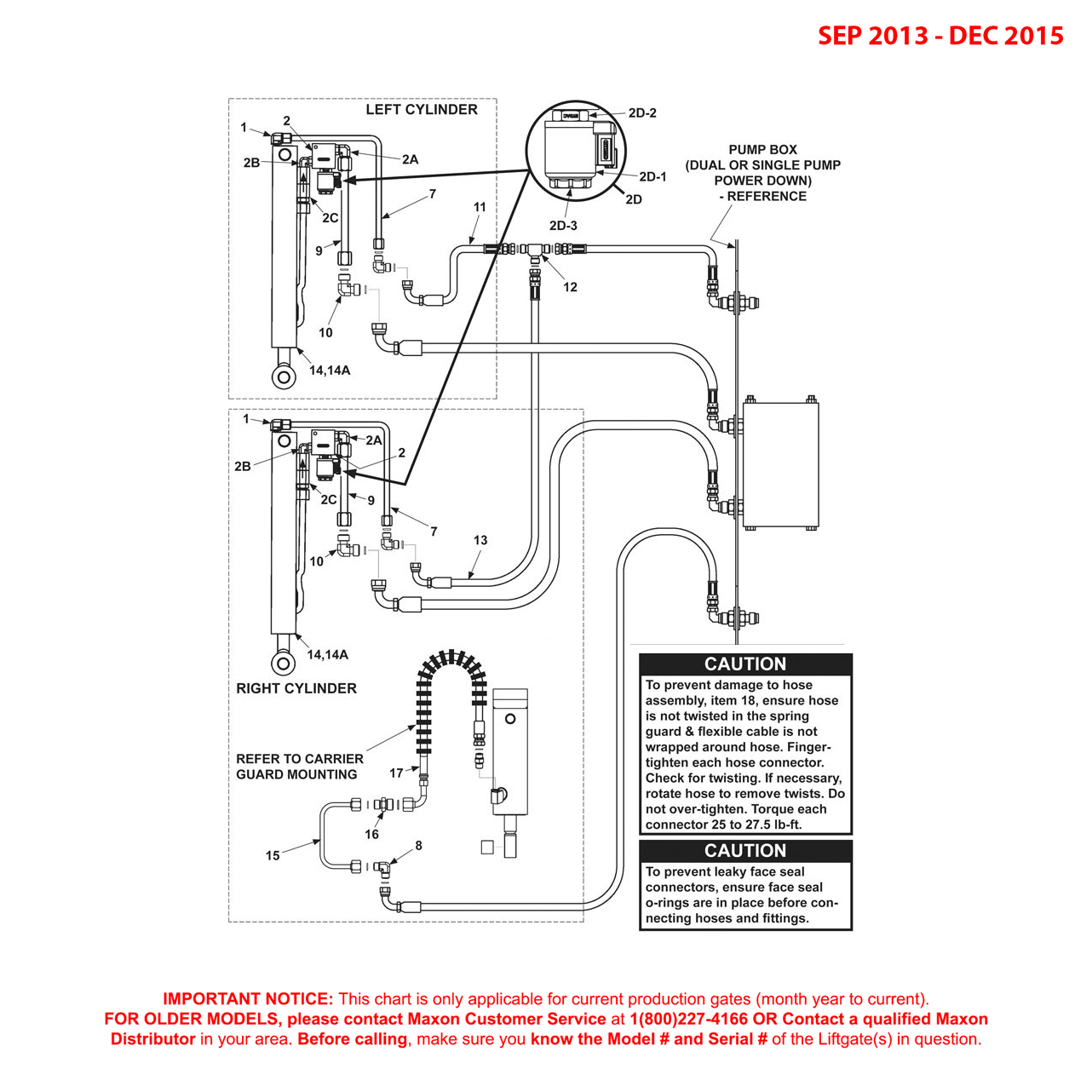

Maxon BMRA (Sep 2013 - Dec 2015) Power Down Hydraulic Components Diagram (1 OF 2)
,

Maxon BMRA (Sep 2013 – Dec 2015) Power Down Hydraulic Components Diagram (1 OF 2)

SKU: BMRA-SEP13-DEC15-PD-HYDC-DG1 Categories: ,
ID Image Title SKU Price Quantity Add to Cart
0Maxon 906840-01 - Cartridge Valve and Nut 2W2PMaxon 906840-01 - Cartridge Valve and Nut 2W2P906840-01-MAXO$102.23
0Maxon 906840-02 - Nut Cartridge ValveMaxon 906840-02 - Nut Cartridge Valve906840-02-MAXO$5.42
0Maxon 906841-01 - Solenoid Coil 12 VDCMaxon 906841-01 - Solenoid Coil 12 VDC906841-01-MAXO$54.45
1Maxon 905157 - Elbow 3/8 F/S 1/4 NPTF M-MMaxon 905157 - Elbow 3/8 F/S 1/4 NPTF M-M905157-MAXO$32.58
2Maxon 260164 - ELB 90ST TR O-Ring #6M-M1/4NPTFMaxon 260164 - ELB 90ST TR O-Ring #6M-M1/4NPTF260164-MAXO$24.98
2Maxon 264307 - HYD Lock and Press Comp VLV AssemblyMaxon 264307 - HYD Lock and Press Comp VLV Assembly264307-MAXO$364.47
2Maxon 269132-01 - Pressure COMP Valve Assembly 3GPMMaxon 269132-01 - Pressure COMP Valve Assembly 3GPM269132-01-MAXO$82.64
2Maxon 282999-01 - Lock Valve Assembly 12VMaxon 282999-01 - Lock Valve Assembly 12V282999-01-MAXO$133.85
2Maxon 905158 - Elbow Straight F/S#-O-R #6Maxon 905158 - Elbow Straight F/S#-O-R #6905158-MAXO$69.20
7Maxon 280629-01 - F/S Tube Assembly RTN Line BMRAMaxon 280629-01 - F/S Tube Assembly RTN Line BMRA280629-01-MAXO$92.94
8Maxon 906792-01 - Union Elbow F/S #4M-#4M 90DEGMaxon 906792-01 - Union Elbow F/S #4M-#4M 90DEG906792-01-MAXO$5.87
9Maxon 280628-01 - F/S Tube Assembly LFT Line BMRAMaxon 280628-01 - F/S Tube Assembly LFT Line BMRA280628-01-MAXO$111.24
10Maxon 906830-01 - Union Elbow F/S #8M-#8M 90DEGMaxon 906830-01 - Union Elbow F/S #8M-#8M 90DEG906830-01-MAXO$6.47
11Maxon 264294-02 - Hose/A HP .25 F/S NO.6 90 Degrees F-F/S NO.6 F 100 INMaxon 264294-02 - Hose/A HP .25 F/S NO.6 90 Degrees F-F/S NO.6 F 100 IN264294-02-MAXO$69.45
12Maxon 905150 - Tee Union 3/8 FS Male 6-JLOMaxon 905150 - Tee Union 3/8 FS Male 6-JLO905150-MAXO$12.77
12Maxon 906712-02 - Tube End O-Ring #6 3/8 ORFSMaxon 906712-02 - Tube End O-Ring #6 3/8 ORFS906712-02-MAXO$1.30
13Maxon 264294-03 - Hose/A HP .25 F/S NO. 6 90 Degrees F-F/S NO. 6 F 24 INMaxon 264294-03 - Hose/A HP .25 F/S NO. 6 90 Degrees F-F/S NO. 6 F 24 IN264294-03-MAXO$29.07
14Maxon 280663-01 - Hydraulic Cylinder DBL ACT 1.75 X 53.13 X 1 InchMaxon 280663-01 - Hydraulic Cylinder DBL ACT 1.75 X 53.13 X 1 Inch280663-01-MAXO$924.81
14Maxon 280663-02 - Hydraulic Cylinder DBL ACT 2.00 X 53.13 X 1Maxon 280663-02 - Hydraulic Cylinder DBL ACT 2.00 X 53.13 X 1280663-02-MAXO$707.45
15Maxon 284894-01 - TUBE ASSY #4FS CL LINE BMRAMaxon 284894-01 - TUBE ASSY #4FS CL LINE BMRA284894-01-MAXO$34.71
16Maxon 905180 - Union F/S 6-4 HLO 1/4M-3/8MMaxon 905180 - Union F/S 6-4 HLO 1/4M-3/8M905180-MAXO$87.50
17Maxon 264109 - Hose Assembly .25 F/S #4 and #6 F-FMaxon 264109 - Hose Assembly .25 F/S #4 and #6 F-F264109-MAXO$149.13

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
