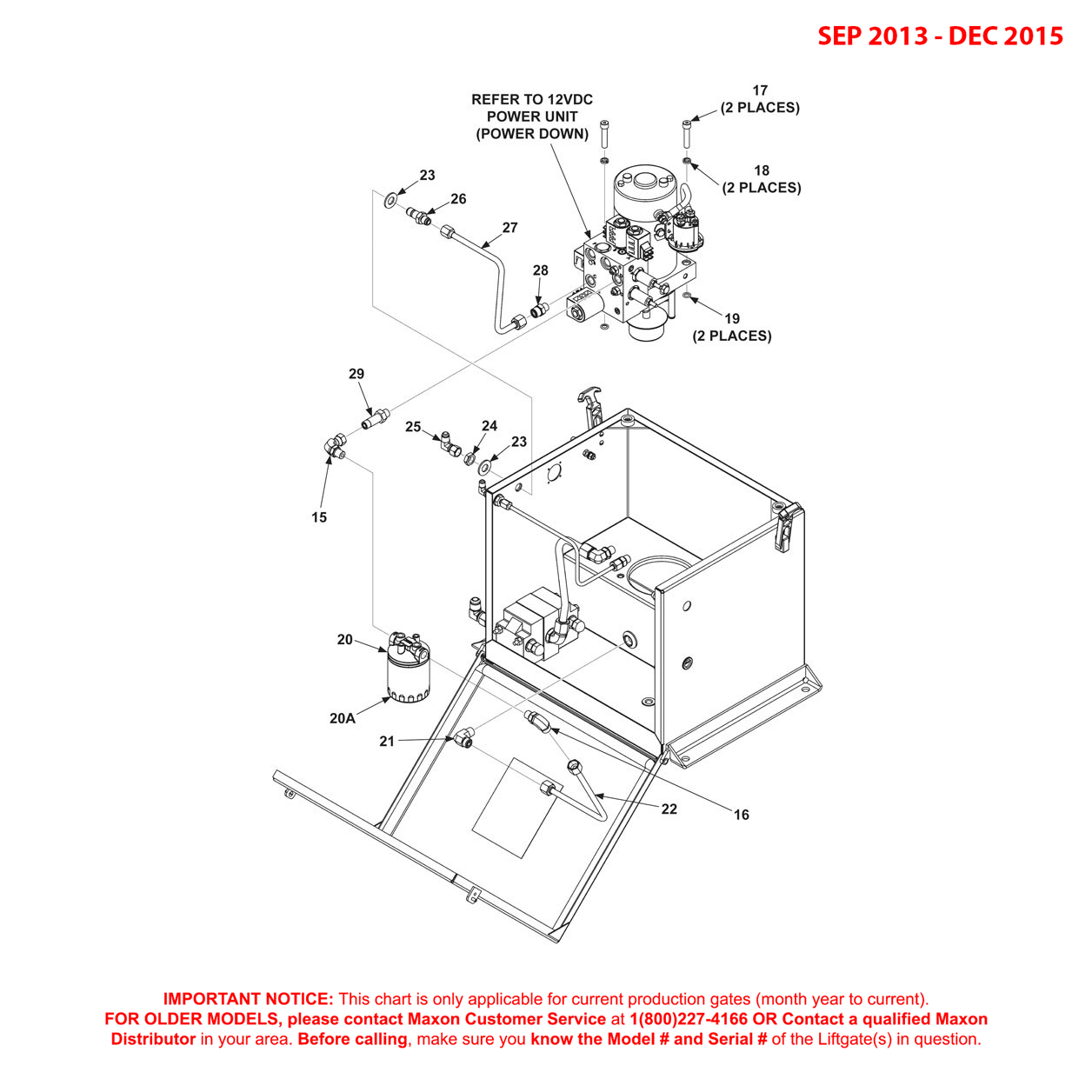

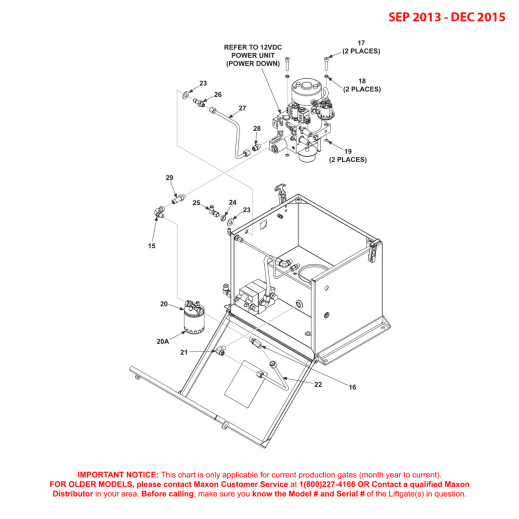

Maxon BMRA (Sep 2013 - Dec 2015) Power Down Single Pump Assembly Diagram (2 OF 2)
,

Maxon BMRA (Sep 2013 – Dec 2015) Power Down Single Pump Assembly Diagram (2 OF 2)

SKU: BMRA-SEP13-DEC15-PDSPA-DG2 Categories: ,
ID Image Title SKU Price Quantity Add to Cart
15Maxon 906708-01 - Elbow - NPSC SAE #6 O-R M-F SWMaxon 906708-01 - Elbow - NPSC SAE #6 O-R M-F SW906708-01-MAXO$43.65
16Maxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-MMaxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-M906707-01-MAXO$8.45
17Maxon 263951 - Cap Screw 3/8-16 X 1 3/4Maxon 263951 - Cap Screw 3/8-16 X 1 3/4263951-MAXO$0.72
18Maxon 263952 - Washer Lock 3/8 Inch ZincMaxon 263952 - Washer Lock 3/8 Inch Zinc263952-MAXO$0.18
19Maxon 908025-01 - O-RingMaxon 908025-01 - O-Ring908025-01-MAXO$0.18
20Maxon 268835-01 - Filter Spin-On SAE #6 PortMaxon 268835-01 - Filter Spin-On SAE #6 Port268835-01-MAXO$92.52
21Maxon 906735-01 - Elbow #6 M 0-Ring M 3/8 NPTMaxon 906735-01 - Elbow #6 M 0-Ring M 3/8 NPT906735-01-MAXO$25.70
22Maxon 269380-01 - F/S Tube Assembly .30 Oil FilterMaxon 269380-01 - F/S Tube Assembly .30 Oil Filter269380-01-MAXO$25.01
23Maxon 902013-14 - Washer Flat 9/16 Inch SAE ZCMaxon 902013-14 - Washer Flat 9/16 Inch SAE ZC902013-14-MAXO$0.48
24Maxon 905086 - Nut Bulkhead JIC #6Maxon 905086 - Nut Bulkhead JIC #6905086-MAXO$2.45
25Maxon 905154 - Elbow 90Degree SAE 37DEG JIC#6 M-JIC#6FMaxon 905154 - Elbow 90Degree SAE 37DEG JIC#6 M-JIC#6F905154-MAXO$21.54
26Maxon 905100 - ST Union Fitting Bulkhead M JIC#6Maxon 905100 - ST Union Fitting Bulkhead M JIC#6905100-MAXO$19.74
27Maxon 269378-01 - F/S Tube Assembly .38 Power DownMaxon 269378-01 - F/S Tube Assembly .38 Power Down269378-01-MAXO$29.63
28Maxon 905173 - Connector F/S#6 and O-R#6 M-MMaxon 905173 - Connector F/S#6 and O-R#6 M-M905173-MAXO$3.51
29Maxon 906705-01 - Connect. Long NPSC SAE #6Maxon 906705-01 - Connect. Long NPSC SAE #6906705-01-MAXO$33.32

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
