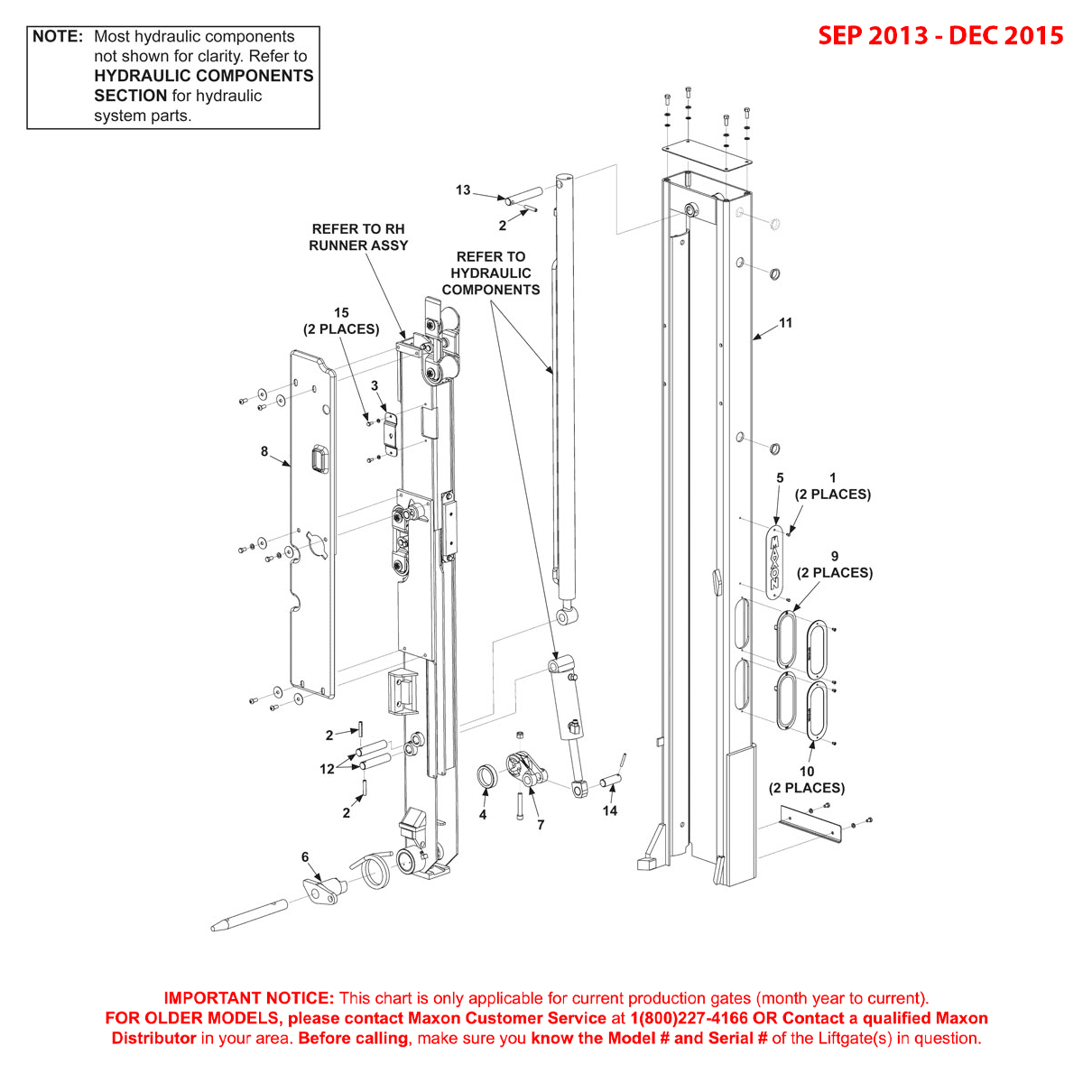

Maxon BMRA (Sep 2013 - Dec 2015) Right Hand Column Assembly Diagram (1 OF 2)

Maxon BMRA (Sep 2013 – Dec 2015) Right Hand Column Assembly Diagram (1 OF 2)

SKU: BMRA-SEP13-DEC15-RHCA-DG1 Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 207644 - Rivet BLND 0.19 X.58 DomeMaxon 207644 - Rivet BLND 0.19 X.58 Dome207644-MAXO$0.32
2Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
3Maxon 253694 - Switch Plate BMRMaxon 253694 - Switch Plate BMR253694-MAXO$12.68
4Maxon 253695 - Bushing X 3/4 InchMaxon 253695 - Bushing X 3/4 Inch253695-MAXO$34.44
5Maxon 260478 - Maxon VERT Plate 3 X 10.125 X .031 InchMaxon 260478 - Maxon VERT Plate 3 X 10.125 X .031 Inch260478-MAXO$23.52
6Maxon 285133-02 - Coupling-Outside BMRSD PaintedMaxon 285133-02 - Coupling-Outside BMRSD Painted285133-02-MAXO$349.95
7Maxon 253589 - Coupling WeldmentMaxon 253589 - Coupling Weldment253589-MAXO$361.98
8Maxon 284604-01 - Cover Column BMRA RHMaxon 284604-01 - Cover Column BMRA RH284604-01-MAXO$124.20
9Maxon 285135-01 - LED LT FLG MTG Oval Truck-LITEMaxon 285135-01 - LED LT FLG MTG Oval Truck-LITE285135-01-MAXO$52.47
10Maxon 285135-02 - Flange SST Oval LT Truck-LITEMaxon 285135-02 - Flange SST Oval LT Truck-LITE285135-02-MAXO$9.68
11Maxon 284893-01G - COL WLDMT RH BMRA GALVMaxon 284893-01G - COL WLDMT RH BMRA GALV284893-01G-MAXO$2,853.83
11Maxon 284893-01 - COL WLDMT RH BMRAMaxon 284893-01 - COL WLDMT RH BMRA284893-01-MAXO$2,078.70
12Maxon 268068-01 - Pin SST 1 X 4.75 Inch LGMaxon 268068-01 - Pin SST 1 X 4.75 Inch LG268068-01-MAXO$42.56
13Maxon 268068-02 - Pin SST 1 X 5.88 Inch LGMaxon 268068-02 - Pin SST 1 X 5.88 Inch LG268068-02-MAXO$50.49
14Maxon 268068-04 - Pin SST 1 X 2.94 Inch LGMaxon 268068-04 - Pin SST 1 X 2.94 Inch LG268068-04-MAXO$31.41
15Maxon 900000-1 - Bolt HX 1/4-20 X 5/8 GR8 ZCMaxon 900000-1 - Bolt HX 1/4-20 X 5/8 GR8 ZC900000-1-MAXO$0.23

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
