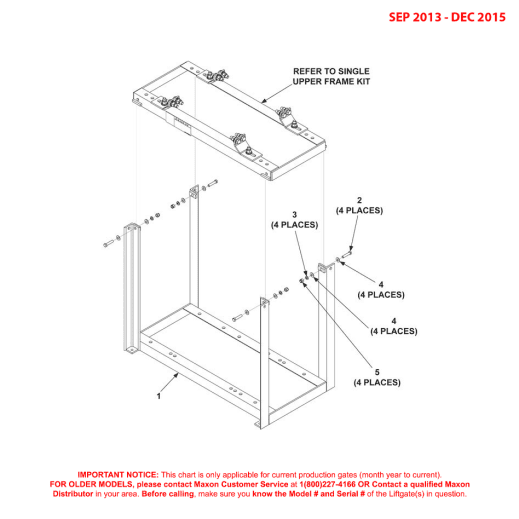

Maxon BMRA (Sep 2013 - Dec 2015) Single Frame Assembly Diagram

BMR-A-CS Diagrams, BMRA (Sep 2013 - Dec 2015) Diagrams

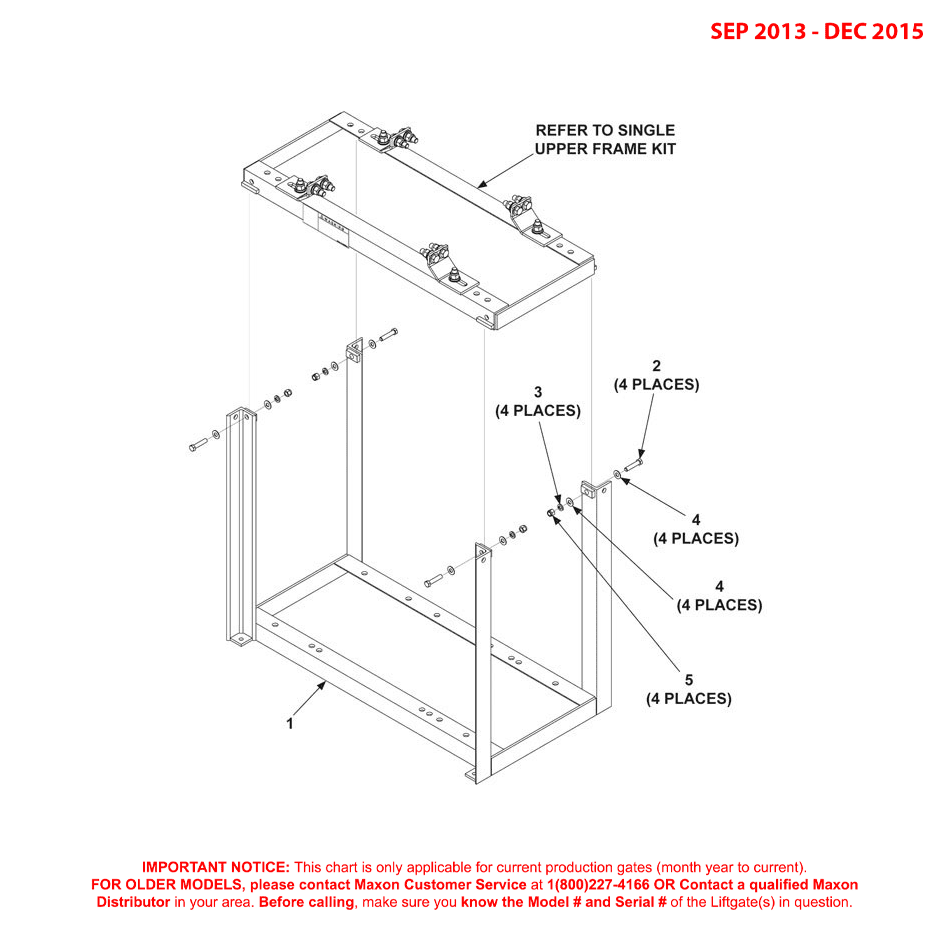

Maxon BMRA (Sep 2013 – Dec 2015) Single Frame Assembly Diagram

SKU: BMRA-SEP13-DEC15-SFA-DG Categories: BMR-A-CS Diagrams, BMRA (Sep 2013 - Dec 2015) Diagrams

Options
Description

ID	Image	Title	SKU	Price	Quantity	Add to Cart
0		Maxon 285720-11G - Single Frame Assembly	285720-11G-MAXO	$879.38
0		Maxon 285720-11 - Single Frame Assembly	285720-11-MAXO	$775.83
2		Maxon 900014-7 - Screw Hex Cap 0.38-16 X 1.75 Inch - G8 - ZC	900014-7-MAXO	$0.90
3		Maxon 902011-4 - Washer Lock 3/8 X .094 ZC	902011-4-MAXO	$0.15
4		Maxon 903409-03 - Washer - FEND .41 X .88 Inch OD SS	903409-03-MAXO	$0.14
5		Maxon 901002 - Nut Nylon 3/8-16 Zinc	901002-MAXO	$0.36

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
