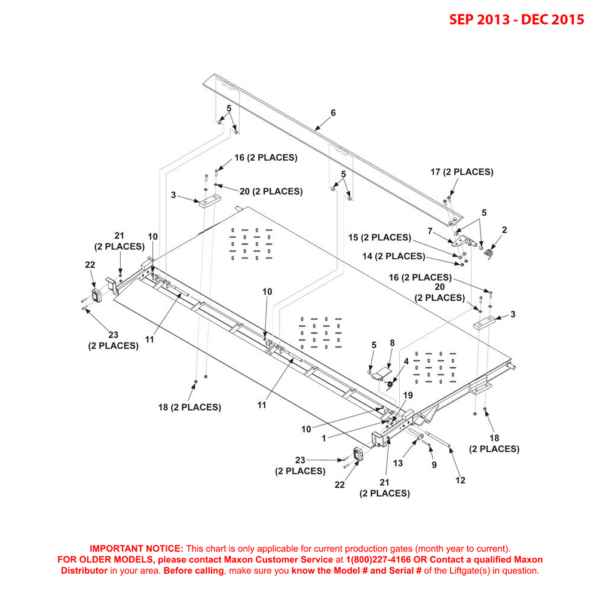

Maxon BMRA (Sep 2013 - Dec 2015) Steel Flipover With Single Cart Stop Diagram

Maxon BMRA (Sep 2013 – Dec 2015) Steel Flipover With Single Cart Stop Diagram

SKU: BMRA-SEP13-DEC15-SFOSCS-DG Category:
ID Image Title SKU Price Quantity Add to Cart
2Maxon 202528-02 - Spring Torsion Cart Stop R/SideMaxon 202528-02 - Spring Torsion Cart Stop R/Side202528-02-MAXO$63.84
3Maxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 HoleMaxon 225278-02 - Rubber Bumper 3/4 x 1.5 x 5 - 2 Hole225278-02-MAXO$24.86
4Maxon 252460 - Spring Torsion .095 X 3.5 LH 302SSMaxon 252460 - Spring Torsion .095 X 3.5 LH 302SS252460-MAXO$10.85
5Maxon 253542 - Bearing Self Lube 1/2 X 1/2 InchMaxon 253542 - Bearing Self Lube 1/2 X 1/2 Inch253542-MAXO$13.04
6Maxon 253850-01 - C/STOP 3/8AL DIA PL Weldment 86 InchMaxon 253850-01 - C/STOP 3/8AL DIA PL Weldment 86 Inch253850-01-MAXO$614.60
6Maxon 253850 - C/STOP 3/8AL DIA PL Weldment 80 InchMaxon 253850 - C/STOP 3/8AL DIA PL Weldment 80 Inch253850-MAXO$717.92
7Maxon 260321 - Locking Cam R/HMaxon 260321 - Locking Cam R/H260321-MAXO$256.43
8Maxon 260360 - Locking Hook R/H PaintedMaxon 260360 - Locking Hook R/H Painted260360-MAXO$254.75
9Maxon 260558 - Bolt Hex 1/4-20 X 2 GR8 ZCMaxon 260558 - Bolt Hex 1/4-20 X 2 GR8 ZC260558-MAXO$0.80
10Maxon 260930 - Retaining Ring 1 X .078 SS HDMaxon 260930 - Retaining Ring 1 X .078 SS HD260930-MAXO$11.85
11Maxon 261496-01 - Pin 4.8 Inch LGMaxon 261496-01 - Pin 4.8 Inch LG261496-01-MAXO$84.35
12Maxon 261496-02 - Pin 7.1 Inch LGMaxon 261496-02 - Pin 7.1 Inch LG261496-02-MAXO$93.71
13Maxon 261693 - Pin Locking Hook Support WeldmentMaxon 261693 - Pin Locking Hook Support Weldment261693-MAXO$17.01
15Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18
16Maxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch AlloyMaxon 900001-4 - Screw BUT 5/16-18 X 1-1/4 Inch Alloy900001-4-MAXO$1.97
17Maxon 900061-5 - Flathead Screw SOC .375-16 1.25 Inch LG Stainless SteelMaxon 900061-5 - Flathead Screw SOC .375-16 1.25 Inch LG Stainless Steel900061-5-MAXO$2.36
18Maxon 901001 - Nut - Nylon - 5/16-18 ZincMaxon 901001 - Nut - Nylon - 5/16-18 Zinc901001-MAXO$0.18
19Maxon 902013-09 - Washer 1/4 Inch Zinc - Same 030564Maxon 902013-09 - Washer 1/4 Inch Zinc - Same 030564902013-09-MAXO$0.11
20Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
21Maxon 901000 - Nylon Nut 1/4-20 Inch ZincMaxon 901000 - Nylon Nut 1/4-20 Inch Zinc901000-MAXO$0.15
23Maxon 900719-08 - Button Screw .25-20 X 1.25 Inch SSMaxon 900719-08 - Button Screw .25-20 X 1.25 Inch SS900719-08-MAXO$0.51

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
