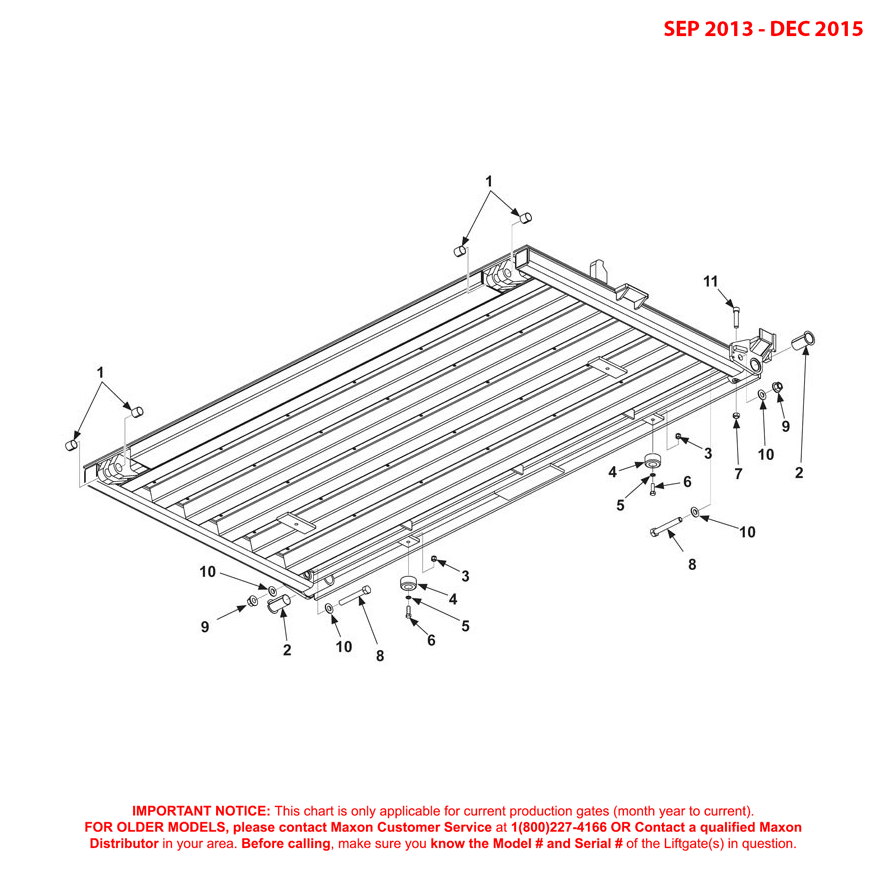

Maxon BMRA (Sep 2013 – Dec 2015) Steel Platform Assembly Diagram

SKU: BMRA-SEP13-DEC15-SPFA-DG Category: BMRA (Sep 2013 - Dec 2015) Diagrams

ID	Title	SKU	Price
1	Maxon 253657 - Bearing Self Lube 1 X 1 Inch	253657-MAXO	$17.85
2	Maxon 905200 - Bearing Self-Lube 1.25ID X 2.5LG	905200-MAXO	$49.58
3	Maxon 901002 - Nut Nylon 3/8-16 Zinc	901002-MAXO	$0.36
4	Maxon 253516 - Bumper 2 X 1 Inch Rubber	253516-MAXO	$21.08
5	Maxon 902000-10 - Washer Flat .375 X .063 THK	902000-10-MAXO	$0.36
6	Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC	900014-5-MAXO	$0.72
8	Maxon 900055-14 - Screw Hex Head .625-11UNC X 4.5 Inch	900055-14-MAXO	$4.25
9	Maxon 903136-05 - Flange Lock Nut .63-11 PL	903136-05-MAXO	$1.55
10	Maxon 902013-15 - Flat Washer 5/8 Inch ZC	902013-15-MAXO	$0.44
11	Maxon 900036-10 - Screw SOC 1/2-13 X 2-1/4 Inch GR8 ZC	900036-10-MAXO	$2.37

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
