| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 261685 - Washer 1-1/4 X 3/4 X .030 Inch SS | 261685-MAXO | $1.13 | ||
| 2 | | Maxon 269222-09G - Opener Assembly LH 42+30 P/F GALV | 269222-09G-MAXO | $233.66 | ||
| 3 | | Maxon 260917-05 - Bearing Self Lube 3/4 X 1-3/8 Inch | 260917-05-MAXO | $20.16 | ||
| 3 | | Maxon 269222-10G - Opener Assembly RH 42+30 P/F GALV | 269222-10G-MAXO | $231.81 | ||
| 3 | | Maxon 280644-01 - Anchor Shackle | 280644-01-MAXO | $15.84 | ||
| 3 | | Maxon 905136-01 - Pin Clevis .500 X 1.906 Inch GR8 | 905136-01-MAXO | $4.98 | ||
| 4 | | Maxon 282854-01 - U-Bolt | 282854-01-MAXO | $6.29 | ||
| 5 | | Maxon 905015-3 - Pin Roll .188 X 1.5 Inch Zinc | 905015-3-MAXO | $0.24 | ||
| 6 | | Maxon 268068-03 - Pin SST 1 X 5.5 Inch LG | 268068-03-MAXO | $47.49 | ||
| 7 | | Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches | 904717-06-MAXO | $0.60 | ||
| 8 | | Maxon 905136-01 - Pin Clevis .500 X 1.906 Inch GR8 | 905136-01-MAXO | $4.98 | ||
| 10 | | Maxon 280644-01 - Anchor Shackle | 280644-01-MAXO | $15.84 | ||
| 11 | | Maxon 901011-9 - Nut Hex Head .500-13 UNC-2B | 901011-9-MAXO | $0.38 | ||
| 12 | | Maxon 901010 - Nylon Lock Nut 1/2-13 ZC | 901010-MAXO | $0.54 | ||
| 13 | | Maxon 902000-14 - Flat Washer .500 X .063 THK | 902000-14-MAXO | $0.98 |
BMRA (Sep 2013 - Dec 2015) Diagrams

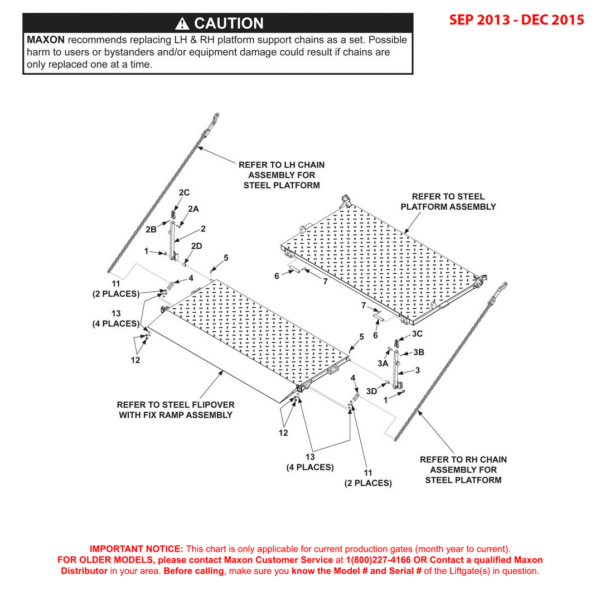

Maxon BMRA (Sep 2013 – Dec 2015) Steel Platform Flipover And Chain Assembly Diagram (2 OF 3)
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
