| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 205780 - Tie Plastic 7 Inch (50 LB) | 205780-MAXO | $0.30 | ||
| 2 | | Maxon 263802-02 - Gasket Connector 6 Pin | 263802-02-MAXO | $2.42 | ||
| 3 | | Maxon 264179 - Circuit Breaker 10AMP EXT MT | 264179-MAXO | $22.80 | ||
| 4 | | Maxon 282824-02 - P/D ON Demand SW Assembly 5 Wire | 282824-02-MAXO | $213.54 | ||
| 5 | | Maxon 268226-02 - Cable Assembly 2GA .31 / .38 RING 28 Inch | 268226-02-MAXO | $27.87 | ||
| 6 | | Maxon 268226-04 - Cable Assembly 2GA .31 / .38 RING 16 Inch | 268226-04-MAXO | $49.71 | ||
| 7 | | Maxon 285506-01 - Cable Assembly 2GA R .31/.38 Ring 10 | 285506-01-MAXO | $20.91 | ||
| 8 | | Maxon 285506-02 - Cable Assembly 2GA R .31/.38 Ring 21 | 285506-02-MAXO | $34.10 | ||
| 9 | | Maxon 268342-01 - Wire Assembly 16GA 7 Inch LG | 268342-01-MAXO | $7.13 | ||
| 10 | | Maxon 283082-01 - Harness Dual Pump BMRSD | 283082-01-MAXO | $293.85 | ||
| 11 | | Maxon 906577-01 - TGL SW SP 2 POSN | 906577-01-MAXO | $74.22 | ||
| 12 | | Maxon 900709-08 - Screw PH Pan HD 4-40 X .5 SS | 900709-08-MAXO | $0.12 | ||
| 13 | | Maxon 901007 - Nut Nylon .112-40 Zinc | 901007-MAXO | $0.11 | ||
| 14 | | Maxon 900753-15 - Pan Screw - Phillips Head 10-24 X 2.25 Inch SS | 900753-15-MAXO | $0.77 | ||
| 15 | | Maxon 903444-01 - Washer Flat #10 SS | 903444-01-MAXO | $0.50 | ||
| 16 | | Maxon 901003 - Nut Nylon 10-24 2B ZC | 901003-MAXO | $0.11 | ||
| 17 | | Maxon 906590-01 - Switch Master DISCONN D/Pump | 906590-01-MAXO | $106.20 | ||
| 18 | | Maxon 906591-01 - O-Ring Master Disc Switch | 906591-01-MAXO | $2.34 | ||
| 19 | | Maxon 900009-1 - Screw Cap 5/16-18 X 5/8 Inch GR8 ZC | 900009-1-MAXO | $0.30 | ||
| 20 | | Maxon 902000-8 - Flat Washer - .312 .063 THK | 902000-8-MAXO | $0.32 | ||
| 21 | | Maxon 902011-3 - Lock Washer 5/16 X 5/64 Inch G8 ZC | 902011-3-MAXO | $0.11 | ||
| 22 | | Maxon 902013-07 - Washer Flat #10 ZC | 902013-07-MAXO | $0.11 | ||
| 23 | | Maxon 900753-09 - Pan Screw - Phillips Head 10-24 X 1 Inch SS | 900753-09-MAXO | $0.27 |
BMRSD (Sep 2013 - Dec 2015) Diagrams

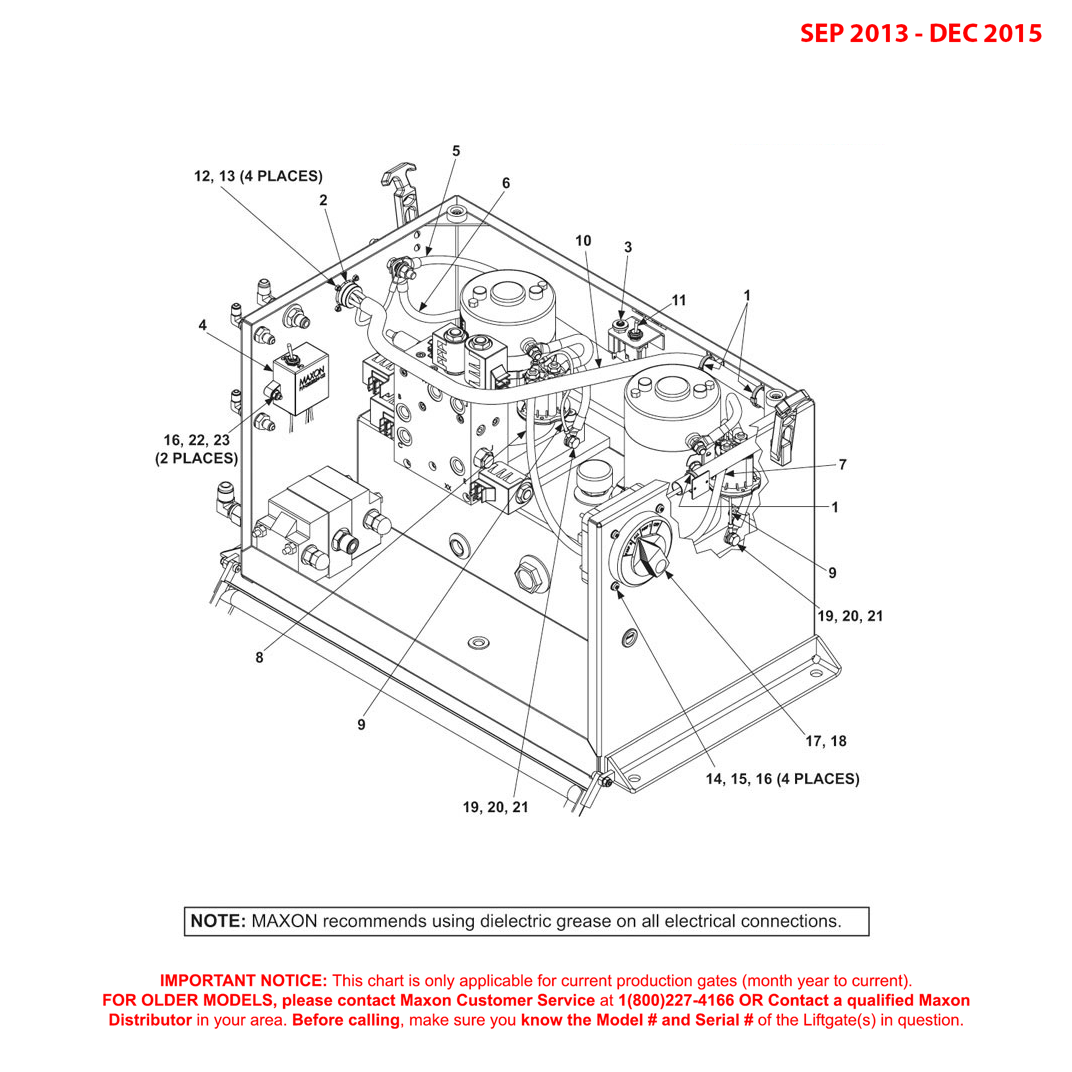

Maxon BMRSD (Sep 2013 – Dec 2015) Dual Pump Box Electrical Components Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
