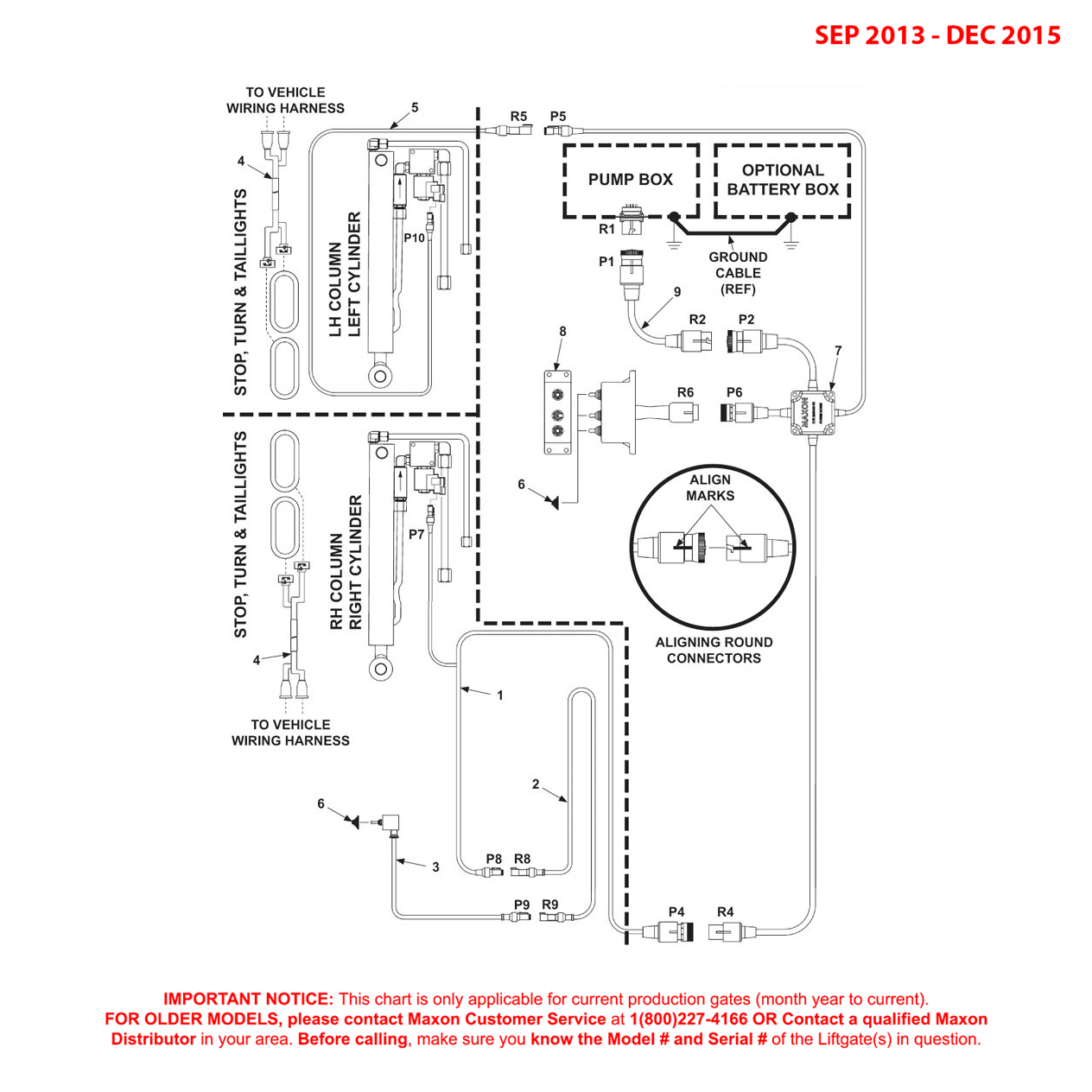

Maxon BMRSD (Sep 2013 - Dec 2015) Electrical Components Diagram

Maxon BMRSD (Sep 2013 – Dec 2015) Electrical Components Diagram

SKU: BMRSD-SEP13-DEC15-ELEC-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 269042-01 - Harness RH Column BMRSD MoldedMaxon 269042-01 - Harness RH Column BMRSD Molded269042-01-MAXO$164.40
2Maxon 268141-01 - Cable Flexible MoldedMaxon 268141-01 - Cable Flexible Molded268141-01-MAXO$85.91
3Maxon 268142-01 - Switch and Cable MoldedMaxon 268142-01 - Switch and Cable Molded268142-01-MAXO$220.34
4Maxon 906621-01 - Harness AssemblyMaxon 906621-01 - Harness Assembly906621-01-MAXO$106.25
5Maxon 268146-01 - Cable Molded 90 Inch LGMaxon 268146-01 - Cable Molded 90 Inch LG268146-01-MAXO$60.69
6Maxon 905206 - Half-Toggle Switch Seal BootMaxon 905206 - Half-Toggle Switch Seal Boot905206-MAXO$12.63
7Maxon 268144-01 - Harness INTCON P/Down MoldedMaxon 268144-01 - Harness INTCON P/Down Molded268144-01-MAXO$184.82
8Maxon 268145-01 - Control Box P/Down P/OpenMaxon 268145-01 - Control Box P/Down P/Open268145-01-MAXO$352.47
9Maxon 268143-02 - Cable EXT Molded 63 Inch LGMaxon 268143-02 - Cable EXT Molded 63 Inch LG268143-02-MAXO$130.74
9Maxon 268143-03 - Cable EXT Molded 147 Inch LGMaxon 268143-03 - Cable EXT Molded 147 Inch LG268143-03-MAXO$156.92
9Maxon 268143-04 - Cable EXT Molded 267 Inch LGMaxon 268143-04 - Cable EXT Molded 267 Inch LG268143-04-MAXO$387.87
9Maxon 268143-05 - Cable EXT Molded 363 Inch LGMaxon 268143-05 - Cable EXT Molded 363 Inch LG268143-05-MAXO$223.40

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
