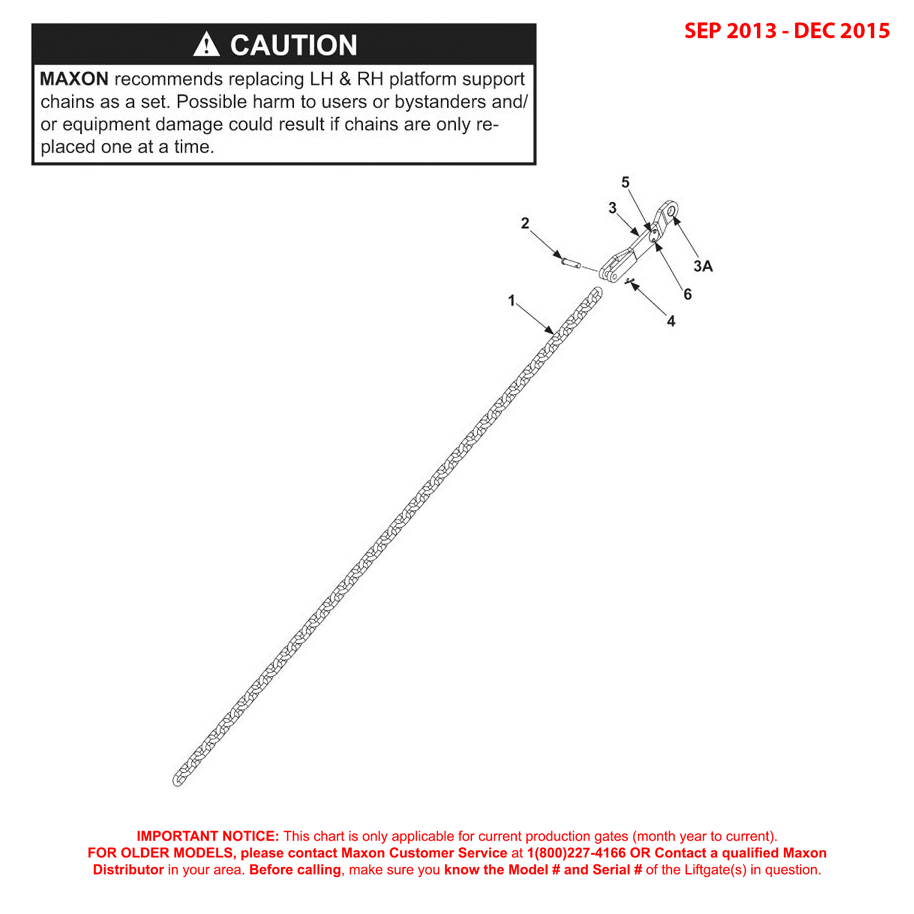

Maxon BMRSD (Sep 2013 - Dec 2015) Left Chain Assembly For Steel Platform Diagram

Maxon BMRSD (Sep 2013 – Dec 2015) Left Chain Assembly For Steel Platform Diagram

SKU: BMRSD-SEP13-DEC15-LHCA-SPF-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 282866-01 - Chain .38 X 72.7 Inch LGMaxon 282866-01 - Chain .38 X 72.7 Inch LG282866-01-MAXO$165.87
1Maxon 282866-02 - Chain .38 X 83.3 Inch LGMaxon 282866-02 - Chain .38 X 83.3 Inch LG282866-02-MAXO$132.53
1Maxon 282867-01 - Chain Assembly LH BMRA 72 Inch P/FMaxon 282867-01 - Chain Assembly LH BMRA 72 Inch P/F282867-01-MAXO$295.25
1Maxon 282867-03 - Chain Assembly LH BMRA 84 Inch P/FMaxon 282867-03 - Chain Assembly LH BMRA 84 Inch P/F282867-03-MAXO$335.30
2Maxon 905136-01 - Pin Clevis .500 X 1.906 Inch GR8Maxon 905136-01 - Pin Clevis .500 X 1.906 Inch GR8905136-01-MAXO$4.98
3Maxon 260078 - Bearing Self Lube 1 X 1/2 InchMaxon 260078 - Bearing Self Lube 1 X 1/2 Inch260078-MAXO$14.10
3Maxon 280505-01 - Tear Drop Assembly LH BMRA GalvanizedMaxon 280505-01 - Tear Drop Assembly LH BMRA Galvanized280505-01-MAXO$108.24

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
