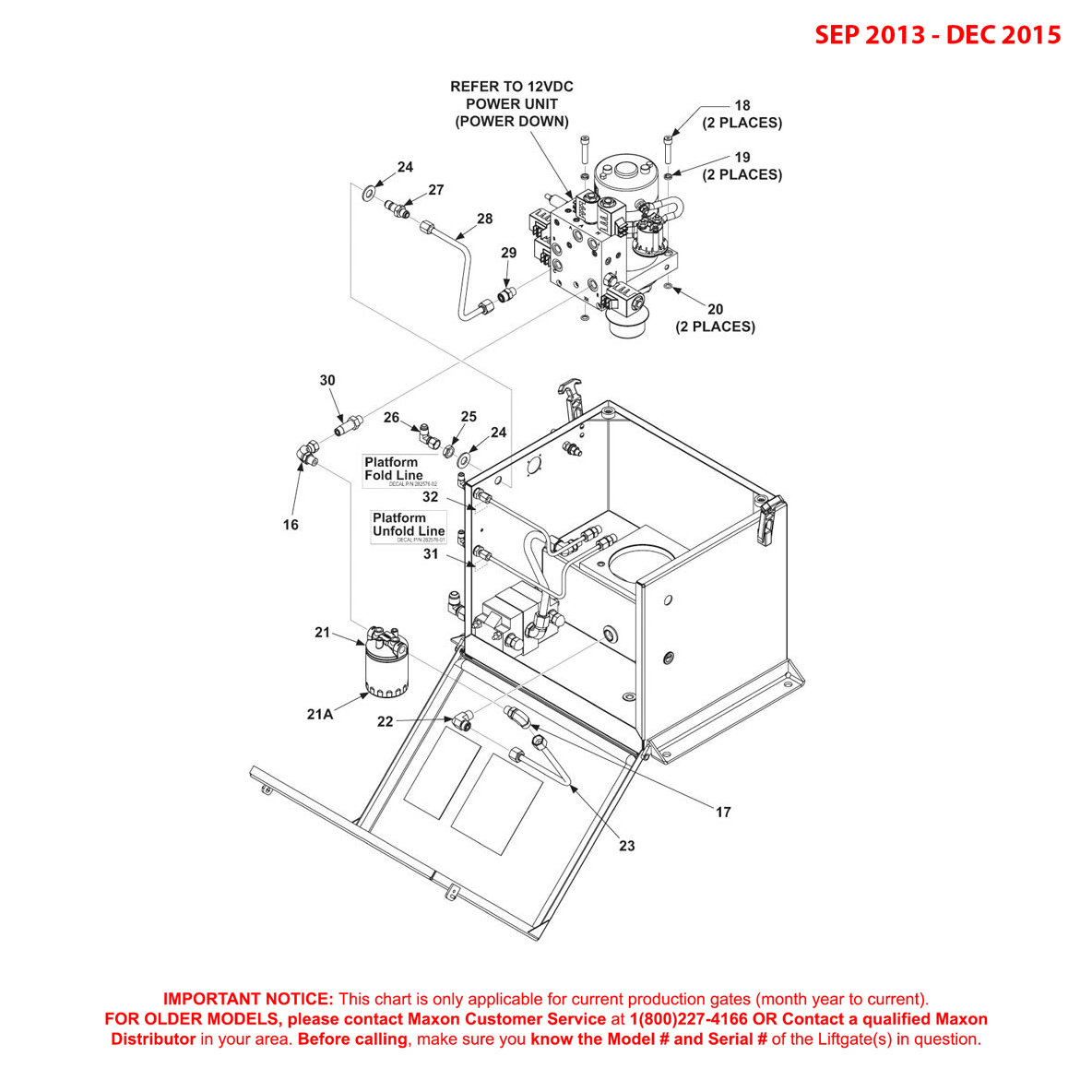

Maxon BMRSD (Sep 2013 - Dec 2015) Single Pump Assembly Diagram (2 OF 2)

Maxon BMRSD (Sep 2013 – Dec 2015) Single Pump Assembly Diagram (2 OF 2)

SKU: BMRSD-SEP13-DEC15-SPA-DG2 Category:
ID Image Title SKU Price Quantity Add to Cart
16Maxon 906708-01 - Elbow - NPSC SAE #6 O-R M-F SWMaxon 906708-01 - Elbow - NPSC SAE #6 O-R M-F SW906708-01-MAXO$43.65
17Maxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-MMaxon 906707-01 - Elbow NPSC SAE #6 F/S O-R M-M906707-01-MAXO$8.45
18Maxon 263951 - Cap Screw 3/8-16 X 1 3/4Maxon 263951 - Cap Screw 3/8-16 X 1 3/4263951-MAXO$0.72
19Maxon 263952 - Washer Lock 3/8 Inch ZincMaxon 263952 - Washer Lock 3/8 Inch Zinc263952-MAXO$0.18
20Maxon 908025-01 - O-RingMaxon 908025-01 - O-Ring908025-01-MAXO$0.18
21Maxon 268835-01 - Filter Spin-On SAE #6 PortMaxon 268835-01 - Filter Spin-On SAE #6 Port268835-01-MAXO$92.52
22Maxon 906735-01 - Elbow #6 M 0-Ring M 3/8 NPTMaxon 906735-01 - Elbow #6 M 0-Ring M 3/8 NPT906735-01-MAXO$25.70
23Maxon 269385-01 - F/S Tube Assembly .38 Oil FilterMaxon 269385-01 - F/S Tube Assembly .38 Oil Filter269385-01-MAXO$25.01
24Maxon 905086 - Nut Bulkhead JIC #6Maxon 905086 - Nut Bulkhead JIC #6905086-MAXO$2.45
26Maxon 905154 - Elbow 90Degree SAE 37DEG JIC#6 M-JIC#6FMaxon 905154 - Elbow 90Degree SAE 37DEG JIC#6 M-JIC#6F905154-MAXO$21.54
27Maxon 905100 - ST Union Fitting Bulkhead M JIC#6Maxon 905100 - ST Union Fitting Bulkhead M JIC#6905100-MAXO$19.74
28Maxon 269383-01 - F/S Tube Assembly .38 Power DownMaxon 269383-01 - F/S Tube Assembly .38 Power Down269383-01-MAXO$29.63
29Maxon 905173 - Connector F/S#6 and O-R#6 M-MMaxon 905173 - Connector F/S#6 and O-R#6 M-M905173-MAXO$3.51
30Maxon 906705-01 - Connect. Long NPSC SAE #6Maxon 906705-01 - Connect. Long NPSC SAE #6906705-01-MAXO$33.32

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
