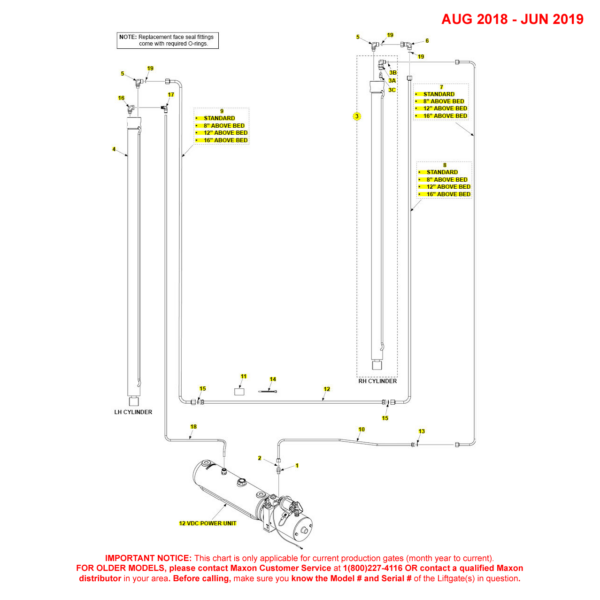

Maxon DMD (Aug 2018 - Jun 2019) Hydraulic Systems With Manual Closer Diagram

Maxon DMD (Aug 2018 – Jun 2019) Hydraulic Systems With Manual Closer Diagram

SKU: DMD-AUG18-JUN18-HYDS-MC-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 905173 - Connector F/S#6 and O-R#6 M-MMaxon 905173 - Connector F/S#6 and O-R#6 M-M905173-MAXO$3.51
3Maxon 290269 - Flow Control Valve 3.0 GPMMaxon 290269 - Flow Control Valve 3.0 GPM290269-MAXO$176.30
3Maxon 290270 - Elbow 90 SAE6-8 ORFSMaxon 290270 - Elbow 90 SAE6-8 ORFS290270-MAXO$233.07
3Maxon 296916-01 - Master Cylinder 2.016 X 52.31 X 1 InchMaxon 296916-01 - Master Cylinder 2.016 X 52.31 X 1 Inch296916-01-MAXO$1,491.75
3Maxon 906712-02 - Tube End O-Ring #6 3/8 ORFSMaxon 906712-02 - Tube End O-Ring #6 3/8 ORFS906712-02-MAXO$1.30
4Maxon 296917-01 - Slave Cylinder 2.25 X 52.31 X 1 InchMaxon 296917-01 - Slave Cylinder 2.25 X 52.31 X 1 Inch296917-01-MAXO$1,269.45
5Maxon 905158 - Elbow Straight F/S#-O-R #6Maxon 905158 - Elbow Straight F/S#-O-R #6905158-MAXO$69.20
6Maxon 906800-02 - Elbow SW Nut ORFS M/F #8Maxon 906800-02 - Elbow SW Nut ORFS M/F #8906800-02-MAXO$14.54
7Maxon 297001-01 - F/S Tube Assembly RH 64.13 Inch LG STDMaxon 297001-01 - F/S Tube Assembly RH 64.13 Inch LG STD297001-01-MAXO$78.80
7Maxon 297001-03 - F/S Tube Assembly RH 76.13 Inch LG 12 Inch ABMaxon 297001-03 - F/S Tube Assembly RH 76.13 Inch LG 12 Inch AB297001-03-MAXO$84.39
8Maxon 296994-01 - F/S Tube Assembly Return Line RH STDMaxon 296994-01 - F/S Tube Assembly Return Line RH STD296994-01-MAXO$80.91
8Maxon 296994-03 - F/S Tube Assembly RH 72.88 Inch LGMaxon 296994-03 - F/S Tube Assembly RH 72.88 Inch LG296994-03-MAXO$90.54
13Maxon 283193-01 - 3/8 ORFS Flange SealMaxon 283193-01 - 3/8 ORFS Flange Seal283193-01-MAXO$3.75
14Maxon 205780 - Tie Plastic 7 Inch (50 LB)Maxon 205780 - Tie Plastic 7 Inch (50 LB)205780-MAXO$0.30
15Maxon 283193-02 - 1/2 ORFS Flange SealMaxon 283193-02 - 1/2 ORFS Flange Seal283193-02-MAXO$3.50
19Maxon 906712-03 - Tube End O-Ring #8 1/2 ORFSMaxon 906712-03 - Tube End O-Ring #8 1/2 ORFS906712-03-MAXO$1.39

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
