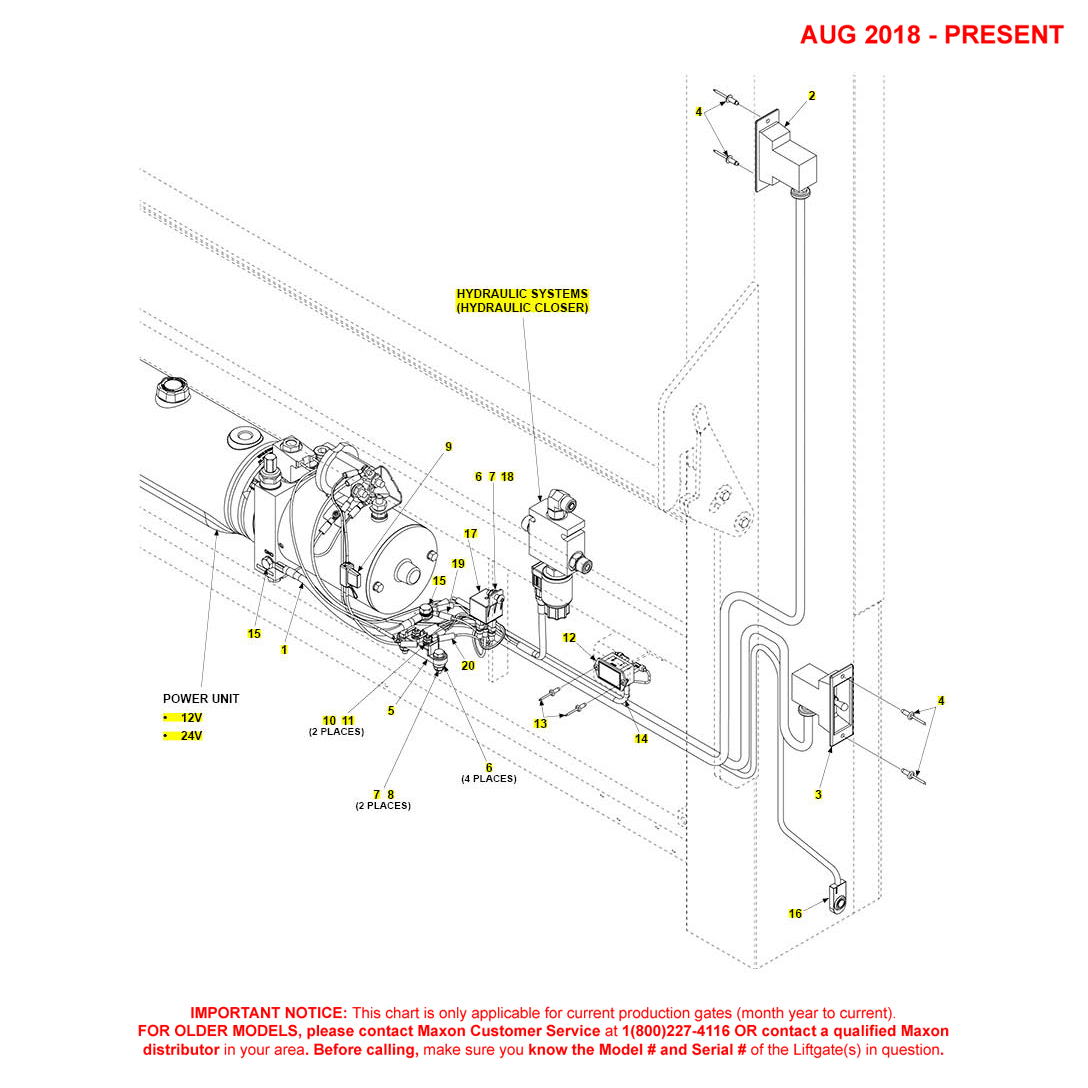

Maxon DMD (Aug 2018 - Present) Electrical Systems With Hydraulic Closer Diagram

Maxon DMD (Aug 2018 – Present) Electrical Systems With Hydraulic Closer Diagram

SKU: DMD-AUG18-PRES-ELECS-HC-DG Category:
ID Image Title SKU Price Quantity Add to Cart
3Maxon 297018-02 - Outer Switch Assembly U/DMaxon 297018-02 - Outer Switch Assembly U/D297018-02-MAXO$106.62
4Maxon 207644 - Rivet BLND 0.19 X.58 DomeMaxon 207644 - Rivet BLND 0.19 X.58 Dome207644-MAXO$0.32
5Maxon 907279-01 - Junction Block - Two StudMaxon 907279-01 - Junction Block - Two Stud907279-01-MAXO$24.69
6Maxon 903412-01 - Flat Washer .25 SSMaxon 903412-01 - Flat Washer .25 SS903412-01-MAXO$0.20
7Maxon 903132-01 - Nut Nylon Insert THN .25-20 SSMaxon 903132-01 - Nut Nylon Insert THN .25-20 SS903132-01-MAXO$0.24
11Maxon 903107-06 - Hex Nut 10-24 UNC SSMaxon 903107-06 - Hex Nut 10-24 UNC SS903107-06-MAXO$0.11
12Maxon 297269-01 - Digital Cycle CounterMaxon 297269-01 - Digital Cycle Counter297269-01-MAXO$103.50
13Maxon 903721-02 - Rivet BL/DM SS .16 X .13-.19 InchMaxon 903721-02 - Rivet BL/DM SS .16 X .13-.19 Inch903721-02-MAXO$0.24
14Maxon 298684-01 - Cycle Counter HarnessMaxon 298684-01 - Cycle Counter Harness298684-01-MAXO$14.87
16Maxon 298662-01 - H/C Switch AssemblyMaxon 298662-01 - H/C Switch Assembly298662-01-MAXO$215.30
17Maxon 906578-01 - Relay 12VDC 5 PinMaxon 906578-01 - Relay 12VDC 5 Pin906578-01-MAXO$6.44
17Maxon 907125-01 - Relay 24 VDC 5 PinMaxon 907125-01 - Relay 24 VDC 5 Pin907125-01-MAXO$27.23
18Maxon 900719-05 - Screw Button .25-20 X .75 Inch SSMaxon 900719-05 - Screw Button .25-20 X .75 Inch SS900719-05-MAXO$0.38

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
