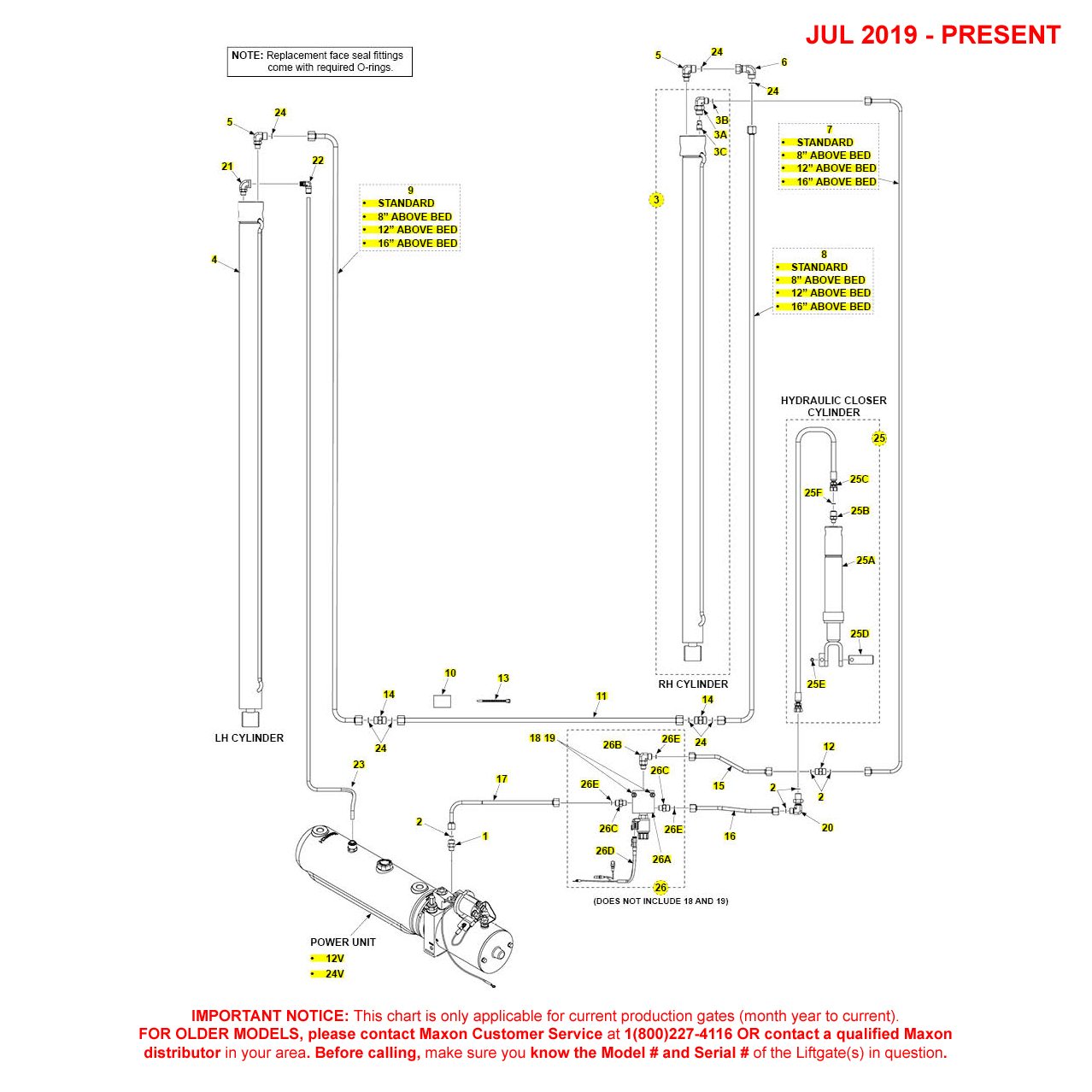

Maxon DMD (Jul 2019 - Present) Hydraulic Systems With Hydraulic Closer Diagram

Maxon DMD (Jul 2019 – Present) Hydraulic Systems With Hydraulic Closer Diagram

SKU: DMD-JUL19-PRES-HYDS-HC-DG Category:
IDImageTitleSKUPriceQuantityAdd to Cart
3Maxon 269413 - Poppet Assembly PCMP FL GPM2.00Maxon 269413 - Poppet Assembly PCMP FL GPM2.00269413-MAXO$33.47
3Maxon 290270 - Elbow 90 SAE6-8 ORFSMaxon 290270 - Elbow 90 SAE6-8 ORFS290270-MAXO$233.07
3Maxon 296916-01 - Master Cylinder 2.016 X 52.31 X 1 InchMaxon 296916-01 - Master Cylinder 2.016 X 52.31 X 1 Inch296916-01-MAXO$1,491.75
3Maxon 906712-02 - O-Ring #6 3/8 ORFS Tube EndMaxon 906712-02 - O-Ring #6 3/8 ORFS Tube End906712-02-MAXO$0.30
4Maxon 296917-01 - Slave Cylinder 2.25 X 52.31 X 1 InchMaxon 296917-01 - Slave Cylinder 2.25 X 52.31 X 1 Inch296917-01-MAXO$1,269.45
5Maxon 905158 - Elbow Straight F/S#-O-R #6Maxon 905158 - Elbow Straight F/S#-O-R #6905158-MAXO$69.20
6Maxon 906800-02 - Elbow SW Nut ORFS M/F #8Maxon 906800-02 - Elbow SW Nut ORFS M/F #8906800-02-MAXO$14.54
7Maxon 297001-01 - F/S Tube Assembly RH 64.13 Inch LG STDMaxon 297001-01 - F/S Tube Assembly RH 64.13 Inch LG STD297001-01-MAXO$78.80
7Maxon 297001-03 - F/S Tube Assembly RH 76.13 Inch LG 12 Inch ABMaxon 297001-03 - F/S Tube Assembly RH 76.13 Inch LG 12 Inch AB297001-03-MAXO$84.39
8Maxon 296994-01 - F/S Tube Assembly Return Line RH STDMaxon 296994-01 - F/S Tube Assembly Return Line RH STD296994-01-MAXO$80.91
8Maxon 296994-03 - F/S Tube Assembly RH 72.88 Inch LGMaxon 296994-03 - F/S Tube Assembly RH 72.88 Inch LG296994-03-MAXO$90.54
12Maxon 905175 - Union F/S #6 M-MMaxon 905175 - Union F/S #6 M-M905175-MAXO$11.66
13Maxon 205780 - Tie Plastic 7 Inch (50 LB)Maxon 205780 - Tie Plastic 7 Inch (50 LB)205780-MAXO$0.30
14Maxon 905161 - Union F/S #8 M-MMaxon 905161 - Union F/S #8 M-M905161-MAXO$11.07
19Maxon 903412-01 - Flat Washer .25 SSMaxon 903412-01 - Flat Washer .25 SS903412-01-MAXO$0.20
20Maxon 905162 - Elbow Bulkhead Union F/S #6Maxon 905162 - Elbow Bulkhead Union F/S #6905162-MAXO$38.60
24Maxon 906712-03 - O-Ring #8 1/2 ORFS Tube EndMaxon 906712-03 - O-Ring #8 1/2 ORFS Tube End906712-03-MAXO$0.39
25Maxon 283204-04 - Pin 1.0 Inch DIA X 2.88 Inch W/HMaxon 283204-04 - Pin 1.0 Inch DIA X 2.88 Inch W/H283204-04-MAXO$13.22
25Maxon 297618-01 - P/F Opener Cylinder Assembly DMDMaxon 297618-01 - P/F Opener Cylinder Assembly DMD297618-01-MAXO$412.59
25Maxon 298487-01 - HC Cylinder Hose Assembly 1/4 Inch ID X 50 Inch LGMaxon 298487-01 - HC Cylinder Hose Assembly 1/4 Inch ID X 50 Inch LG298487-01-MAXO$64.52
25Maxon 904723-04 - Pin Roll .38DIA X 1.5LG SSMaxon 904723-04 - Pin Roll .38DIA X 1.5LG SS904723-04-MAXO$2.94
25Maxon 906712-02 - O-Ring #6 3/8 ORFS Tube EndMaxon 906712-02 - O-Ring #6 3/8 ORFS Tube End906712-02-MAXO$0.30
25Maxon 906759-01 - Connector #6FS #4OR M-MMaxon 906759-01 - Connector #6FS #4OR M-M906759-01-MAXO$16.14
26Maxon 905173 - Connector F/S#6 and O-R#6 M-MMaxon 905173 - Connector F/S#6 and O-R#6 M-M905173-MAXO$3.51
26Maxon 906704-02 - Elbow NPSC SAE #6 F/S O-R M-MMaxon 906704-02 - Elbow NPSC SAE #6 F/S O-R M-M906704-02-MAXO$52.47
26Maxon 906712-02 - O-Ring #6 3/8 ORFS Tube EndMaxon 906712-02 - O-Ring #6 3/8 ORFS Tube End906712-02-MAXO$0.30
26Maxon 906987-01 - 12 VDC 3W2P Valve AssemblyMaxon 906987-01 - 12 VDC 3W2P Valve Assembly906987-01-MAXO$312.18
26Maxon 906987-24 - 24 VDC 3W/2P Valve AssemblyMaxon 906987-24 - 24 VDC 3W/2P Valve Assembly906987-24-MAXO$291.45

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
