| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 1 |  | Maxon 905173 - Connector F/S#6 and O-R#6 M-M | 905173-MAXO | $3.51 | ||
| 3 | | Maxon 269413 - Poppet Assembly PCMP FL GPM2.00 | 269413-MAXO | $33.47 | ||
| 3 | | Maxon 290270 - Elbow 90 SAE6-8 ORFS | 290270-MAXO | $233.07 | ||
| 3 | | Maxon 296916-01 - Master Cylinder 2.016 X 52.31 X 1 Inch | 296916-01-MAXO | $1,491.75 | ||
| 3 | | Maxon 906712-02 - O-Ring #6 3/8 ORFS Tube End | 906712-02-MAXO | $0.30 | ||
| 4 | | Maxon 296917-01 - Slave Cylinder 2.25 X 52.31 X 1 Inch | 296917-01-MAXO | $1,269.45 | ||
| 5 | | Maxon 905158 - Elbow Straight F/S#-O-R #6 | 905158-MAXO | $69.20 | ||
| 6 | | Maxon 906800-02 - Elbow SW Nut ORFS M/F #8 | 906800-02-MAXO | $14.54 | ||
| 7 | | Maxon 297001-01 - F/S Tube Assembly RH 64.13 Inch LG STD | 297001-01-MAXO | $78.80 | ||
| 7 | | Maxon 297001-03 - F/S Tube Assembly RH 76.13 Inch LG 12 Inch AB | 297001-03-MAXO | $84.39 | ||
| 8 | | Maxon 296994-01 - F/S Tube Assembly Return Line RH STD | 296994-01-MAXO | $80.91 | ||
| 8 | | Maxon 296994-03 - F/S Tube Assembly RH 72.88 Inch LG | 296994-03-MAXO | $90.54 | ||
| 13 | | Maxon 905175 - Union F/S #6 M-M | 905175-MAXO | $11.66 | ||
| 14 | | Maxon 205780 - Tie Plastic 7 Inch (50 LB) | 205780-MAXO | $0.30 | ||
| 15 | | Maxon 905161 - Union F/S #8 M-M | 905161-MAXO | $11.07 | ||
| 19 | | Maxon 906712-03 - O-Ring #8 1/2 ORFS Tube End | 906712-03-MAXO | $0.39 |
DMD (Aug 2018 - Present) Diagrams

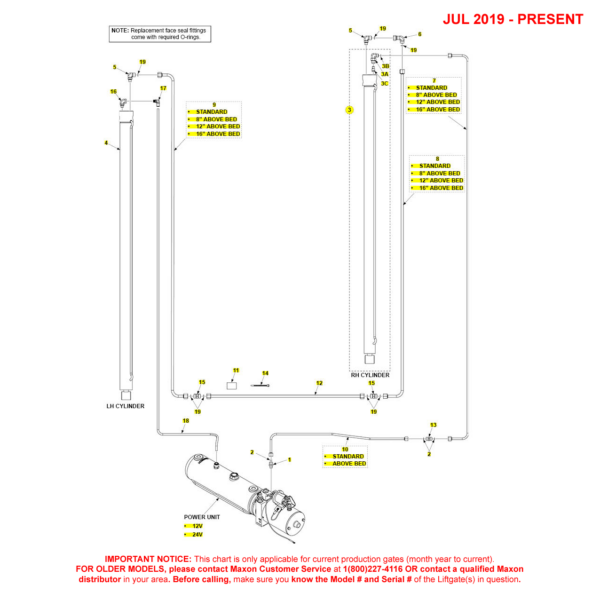

Maxon DMD (Jul 2019 – Present) Hydraulic Systems With Manual Closer Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
