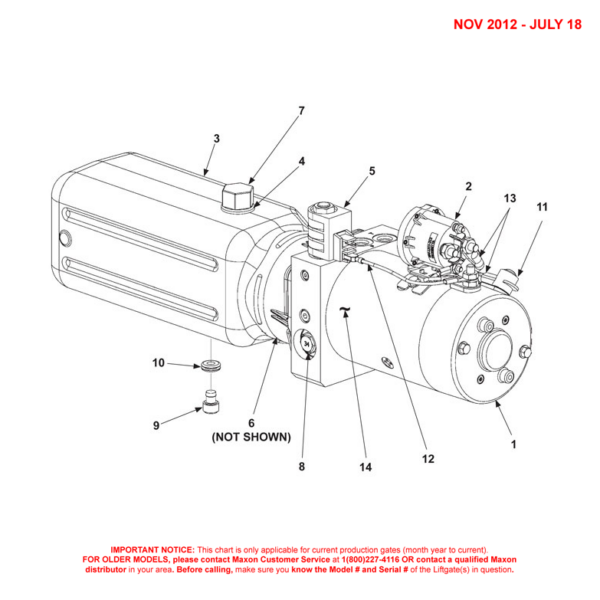

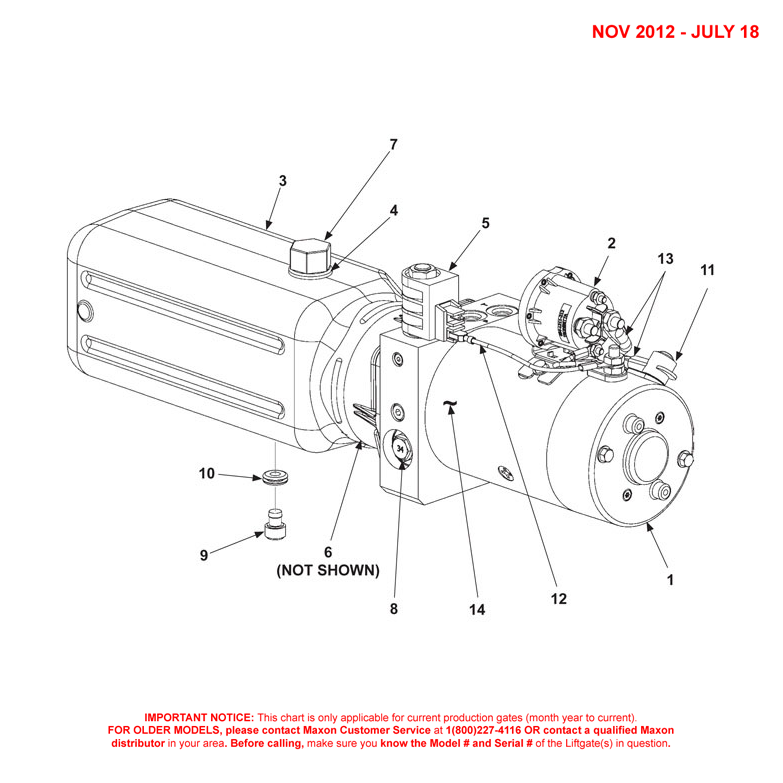

Maxon DMD (Nov 2012 - Jul 2018) 12VDC Power Unit Diagram

Maxon DMD (Nov 2012 – Jul 2018) 12VDC Power Unit Diagram

SKU: DMD-NOV12-JUL18-12VDC-PU-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 269582-01 - Motor 12 VDC Heavy Duty 2 TermMaxon 269582-01 - Motor 12 VDC Heavy Duty 2 Term269582-01-MAXO$784.05
2Maxon 284080-01 - Switch Solenoid AssemblyMaxon 284080-01 - Switch Solenoid Assembly284080-01-MAXO$33.11
3Maxon 905364-01 - Reservoir 4.0 QT PlasticMaxon 905364-01 - Reservoir 4.0 QT Plastic905364-01-MAXO$101.97
4Maxon 908016-01 - Rubber Grommet .60 IDMaxon 908016-01 - Rubber Grommet .60 ID908016-01-MAXO$2.69
5Maxon 906822-01 - 2P2W ValveMaxon 906822-01 - 2P2W Valve906822-01-MAXO$98.40
6Maxon 286192-01 - Pressure-Loaded Pump 201Maxon 286192-01 - Pressure-Loaded Pump 201286192-01-MAXO$452.45
7Maxon 280806-01 - Breather FillerMaxon 280806-01 - Breather Filler280806-01-MAXO$6.32
8Maxon 906737-01 - Cartridge Relief ValveMaxon 906737-01 - Cartridge Relief Valve906737-01-MAXO$39.92
9Maxon 908017-01 - Drain Port PlugMaxon 908017-01 - Drain Port Plug908017-01-MAXO$3.36
10Maxon 908018-01 - Rubber Grommet .31 IDMaxon 908018-01 - Rubber Grommet .31 ID908018-01-MAXO$1.94
13Maxon 280404 - Cable AssemblyMaxon 280404 - Cable Assembly280404-MAXO$9.51
14Maxon 905365-01 - Coupling OLDHAMMaxon 905365-01 - Coupling OLDHAM905365-01-MAXO$23.19

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
