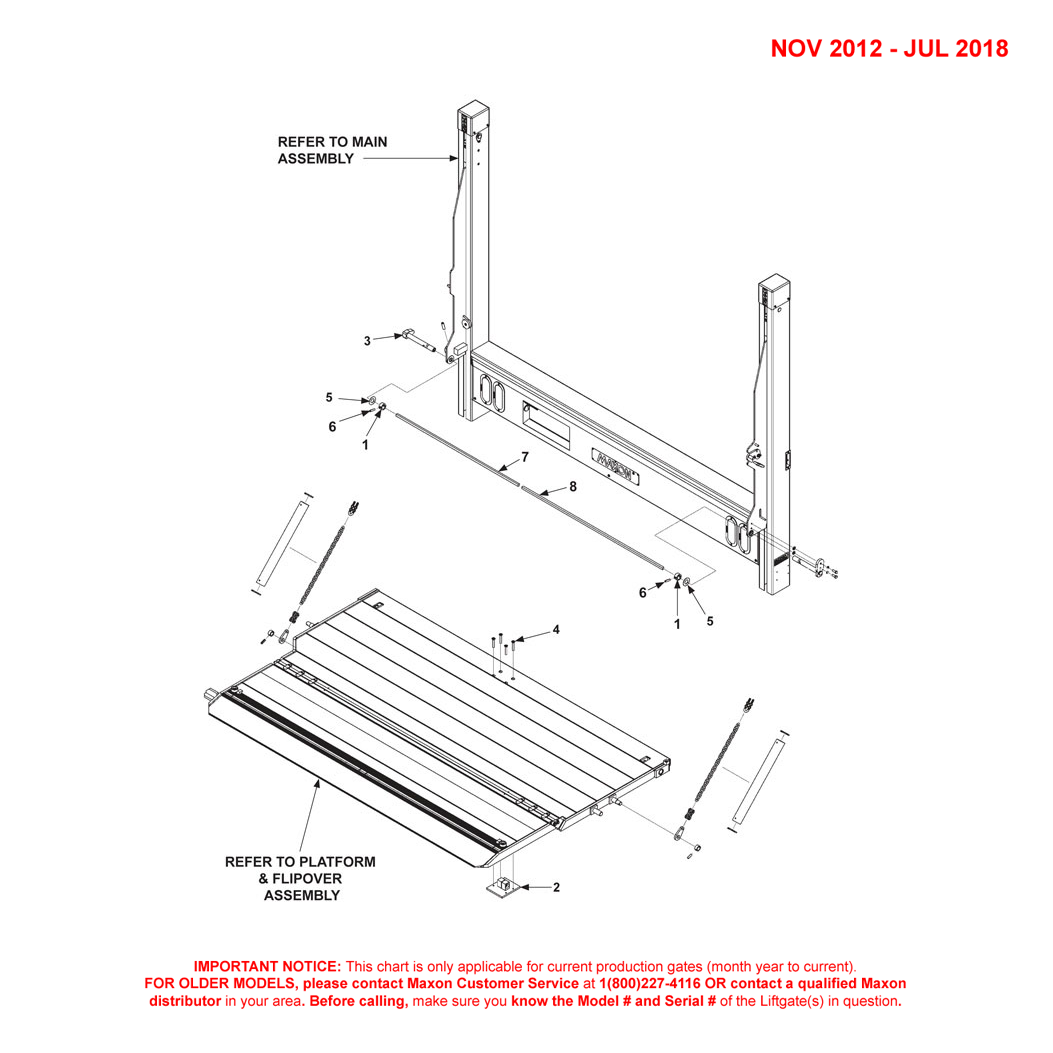

Maxon DMD (Nov 2012 - Jul 2018) 2-Piece Platform Final Assembly Diagram (1 OF 2)

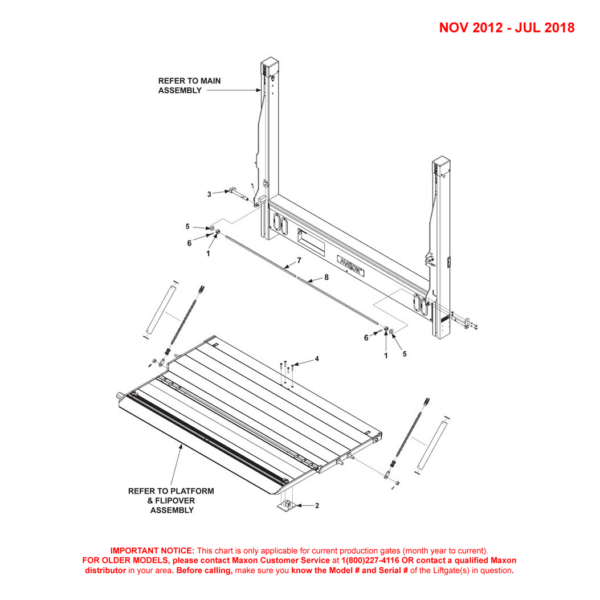

Maxon DMD (Nov 2012 – Jul 2018) 2-Piece Platform Final Assembly Diagram (1 OF 2)

SKU: DMD-NOV12-JUL18-2PCPFFA-DG1 Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 253630 - Pin Collar X 3/4 InchMaxon 253630 - Pin Collar X 3/4 Inch253630-MAXO$20.61
2Maxon 285799-01 - Torsion Bar Housing WeldmentMaxon 285799-01 - Torsion Bar Housing Weldment285799-01-MAXO$128.81
3Maxon 285992-03 - Pin Weldment LP Torsion BarMaxon 285992-03 - Pin Weldment LP Torsion Bar285992-03-MAXO$131.78
4Maxon 900061-10 - Flathead Screw SOC .375-16 2.50 LG SSTMaxon 900061-10 - Flathead Screw SOC .375-16 2.50 LG SST900061-10-MAXO$3.66
5Maxon 905146-03 - Fiberglide Thrust BRG 1.03 Inch ID (USE 908078-01)Maxon 905146-03 - Fiberglide Thrust BRG 1.03 Inch ID (USE 908078-01)905146-03-MAXO$7.62
6Maxon 904723-04 - Pin Roll .38DIA X 1.5LG SSMaxon 904723-04 - Pin Roll .38DIA X 1.5LG SS904723-04-MAXO$2.94
7Maxon 263041-13 - Torsion Bar 27.94 Inch LGMaxon 263041-13 - Torsion Bar 27.94 Inch LG263041-13-MAXO$42.32
8Maxon 263041-11 - Torsion Bar 39.19 Inch LGMaxon 263041-11 - Torsion Bar 39.19 Inch LG263041-11-MAXO$61.13
8Maxon 263041-12 - Torsion Bar 36.19 Inch LGMaxon 263041-12 - Torsion Bar 36.19 Inch LG263041-12-MAXO$84.63
8Maxon 263041-14 - Torsion Bar 50.44 Inch LGMaxon 263041-14 - Torsion Bar 50.44 Inch LG263041-14-MAXO$89.81
8Maxon 263041-15 - Torsion Bar 42.19 Inch LGMaxon 263041-15 - Torsion Bar 42.19 Inch LG263041-15-MAXO$60.89
8Maxon 263041-16 - Torsion Bar 48.19 Inch LGMaxon 263041-16 - Torsion Bar 48.19 Inch LG263041-16-MAXO$90.75
8Maxon 263041-17 - Torsion Bar 45.19 Inch LGMaxon 263041-17 - Torsion Bar 45.19 Inch LG263041-17-MAXO$74.28

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
