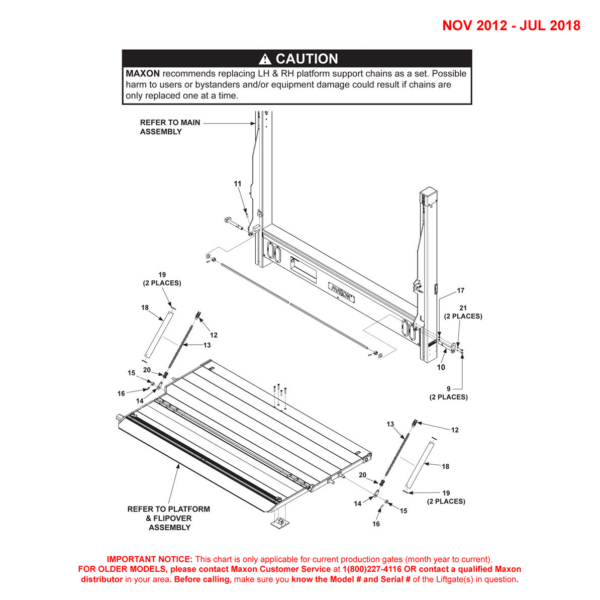

Maxon DMD (Nov 2012 - Jul 2018) 2-Piece Platform Final Assembly Diagram (2 OF 2)

Maxon DMD (Nov 2012 – Jul 2018) 2-Piece Platform Final Assembly Diagram (2 OF 2)

SKU: DMD-NOV12-JUL18-2PCPFFA-DG2 Category:
ID Image Title SKU Price Quantity Add to Cart
9Maxon 900764-06 - Screw Hex Cap .38-16 X 1 Inch SSMaxon 900764-06 - Screw Hex Cap .38-16 X 1 Inch SS900764-06-MAXO$1.64
10Maxon 284070-03 - Pin P/F and Runner 6.44 Inch LG RHMaxon 284070-03 - Pin P/F and Runner 6.44 Inch LG RH284070-03-MAXO$94.86
10Maxon 284070-04 - Pin P/F and Runner 9.44 Inch LG RHMaxon 284070-04 - Pin P/F and Runner 9.44 Inch LG RH284070-04-MAXO$99.60
11Maxon 901209-09 - Screw Set Hex Cup .50-20 X 2 Inch SSMaxon 901209-09 - Screw Set Hex Cup .50-20 X 2 Inch SS901209-09-MAXO$8.03
12Maxon 283721-01 - U-Bolt 3/8-16 X 3.38 Inch LGMaxon 283721-01 - U-Bolt 3/8-16 X 3.38 Inch LG283721-01-MAXO$20.46
13Maxon 283209-02 - Chain (1/4 Inch) X 20 Inch LGMaxon 283209-02 - Chain (1/4 Inch) X 20 Inch LG283209-02-MAXO$29.19
14Maxon 285990-01 - Bracket Chain HolderMaxon 285990-01 - Bracket Chain Holder285990-01-MAXO$20.52
16Maxon 904723-04 - Pin Roll .38DIA X 1.5LG SSMaxon 904723-04 - Pin Roll .38DIA X 1.5LG SS904723-04-MAXO$2.94
17Maxon 903447-01 - Flat Washer .375 X .032 Inch THK SSMaxon 903447-01 - Flat Washer .375 X .032 Inch THK SS903447-01-MAXO$0.14
18Maxon 261609-15 - Sleeve PROT Chain-BMR 34 InchMaxon 261609-15 - Sleeve PROT Chain-BMR 34 Inch261609-15-MAXO$23.87
19Maxon 205780 - Tie Plastic 7 Inch (50 LB)Maxon 205780 - Tie Plastic 7 Inch (50 LB)205780-MAXO$0.30
20Maxon 285989-01 - Chain ShackleMaxon 285989-01 - Chain Shackle285989-01-MAXO$29.91
21Maxon 903448-02 - Washer NORD-Lock .38/M10 SSMaxon 903448-02 - Washer NORD-Lock .38/M10 SS903448-02-MAXO$4.25

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
