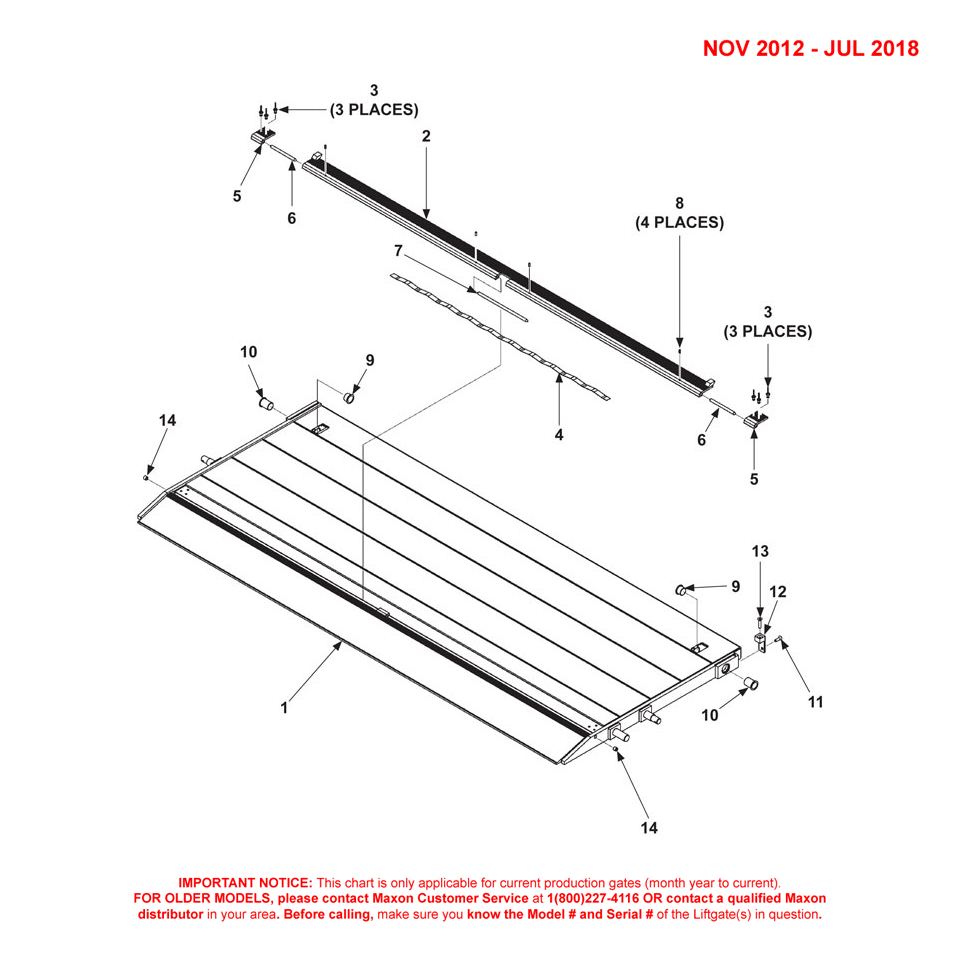

Maxon DMD (Nov 2012 - Jul 2018) Aluminum Platform 1-Piece/Single Cartstop Diagram (1 OF 2)

Maxon DMD (Nov 2012 – Jul 2018) Aluminum Platform 1-Piece/Single Cartstop Diagram (1 OF 2)

SKU: DMD-NOV12-JUL18-ALPF-1P1CS-DG1 Category:
ID Image Title SKU Price Quantity Add to Cart
2Maxon 267092-56 - Cart Stop Weldment 78.13 Inch LGMaxon 267092-56 - Cart Stop Weldment 78.13 Inch LG267092-56-MAXO$141.51
3Maxon 903705-02 - Rivet BLD DOME AL/ST .25 X .6Maxon 903705-02 - Rivet BLD DOME AL/ST .25 X .6903705-02-MAXO$0.36
4Maxon 267581-02 - Spring F/Over C/ST .75 X 42 Inch LGMaxon 267581-02 - Spring F/Over C/ST .75 X 42 Inch LG267581-02-MAXO$92.90
5Maxon 267088-01 - Link - Cart StopMaxon 267088-01 - Link - Cart Stop267088-01-MAXO$15.92
6Maxon 267094-03 - Pin Cart Stop 5 Inch LGMaxon 267094-03 - Pin Cart Stop 5 Inch LG267094-03-MAXO$14.67
7Maxon 267094-04 - Pin Cart Stop 9.75 Inch LGMaxon 267094-04 - Pin Cart Stop 9.75 Inch LG267094-04-MAXO$14.67
8Maxon 904719-03 - Pin Roll .188 X .56 Inch LG SSMaxon 904719-03 - Pin Roll .188 X .56 Inch LG SS904719-03-MAXO$0.27
9Maxon 261837-02 - Bushing - FLNG PLST 1.004 ID X .75 InchMaxon 261837-02 - Bushing - FLNG PLST 1.004 ID X .75 Inch261837-02-MAXO$15.95
10Maxon 261837-08 - Bushing FLNG PLST 1.004 ID X 1.50 InchMaxon 261837-08 - Bushing FLNG PLST 1.004 ID X 1.50 Inch261837-08-MAXO$20.37
11Maxon 900712-02 - Screw SOC FL .312-18 X 1.0 SSMaxon 900712-02 - Screw SOC FL .312-18 X 1.0 SS900712-02-MAXO$1.52
12Maxon 285579-01 - Wear PlateMaxon 285579-01 - Wear Plate285579-01-MAXO$60.50
13Maxon 900712-01 - Screw SOC FL .312-18 X 1.5 SSMaxon 900712-01 - Screw SOC FL .312-18 X 1.5 SS900712-01-MAXO$1.71

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
