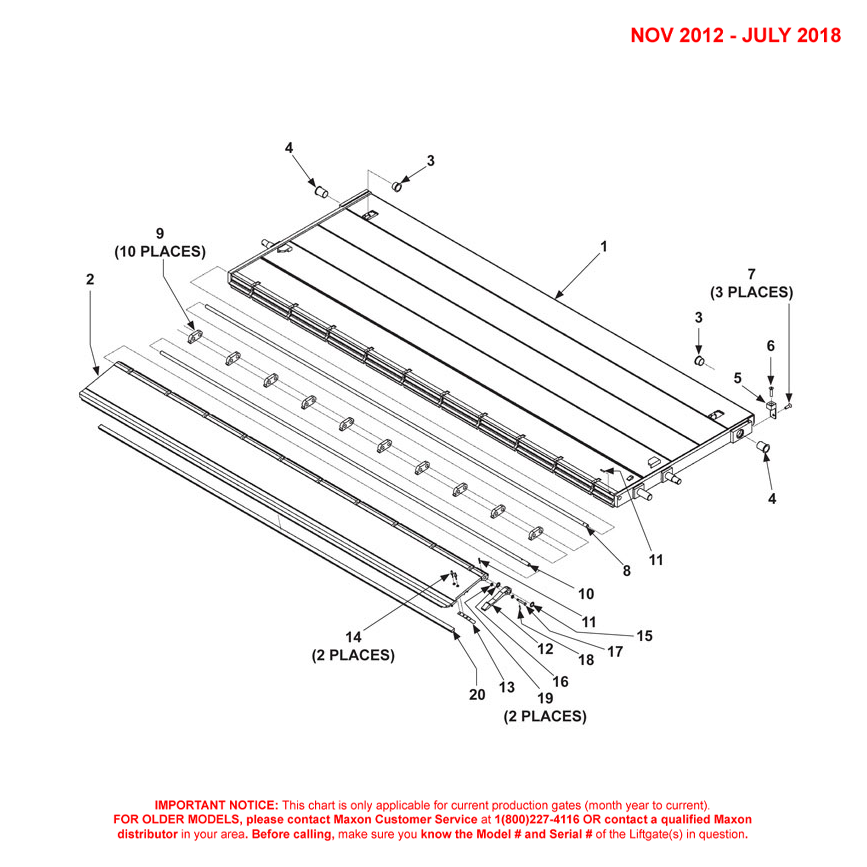

Maxon DMD (Nov 2012 - Jul 2018) Aluminum Platform 1-Piece With Aluminum Retention Ramp Diagram (1 OF 2)

Maxon DMD (Nov 2012 – Jul 2018) Aluminum Platform 1-Piece With Aluminum Retention Ramp Diagram (1 OF 2)

SKU: DMD-NOV12-JUL18-ALPF-1PCALRR-DG1 Category:
ID Image Title SKU Price Quantity Add to Cart
3Maxon 261837-02 - Bushing - FLNG PLST 1.004 ID X .75 InchMaxon 261837-02 - Bushing - FLNG PLST 1.004 ID X .75 Inch261837-02-MAXO$15.95
4Maxon 261837-08 - Bushing FLNG PLST 1.004 ID X 1.50 InchMaxon 261837-08 - Bushing FLNG PLST 1.004 ID X 1.50 Inch261837-08-MAXO$20.37
5Maxon 285579-01 - Wear PlateMaxon 285579-01 - Wear Plate285579-01-MAXO$60.50
6Maxon 900712-01 - Screw SOC FL .312-18 X 1.5 SSMaxon 900712-01 - Screw SOC FL .312-18 X 1.5 SS900712-01-MAXO$1.71
7Maxon 900712-02 - Screw SOC FL .312-18 X 1.0 SSMaxon 900712-02 - Screw SOC FL .312-18 X 1.0 SS900712-02-MAXO$1.52
9Maxon 311022-10 - Hinge F/O Ramp .50LGMaxon 311022-10 - Hinge F/O Ramp .50LG311022-10-MAXO$2.72
11Maxon 905007-07 - Pin Roll .156 X 1.00 Inch ZincMaxon 905007-07 - Pin Roll .156 X 1.00 Inch Zinc905007-07-MAXO$0.24
12Maxon 311038-11 - Hook Retention RampMaxon 311038-11 - Hook Retention Ramp311038-11-MAXO$15.53
13Maxon 267326-01 - Spring Hook Retention RampMaxon 267326-01 - Spring Hook Retention Ramp267326-01-MAXO$13.83
14Maxon 904005-1 - Rivet - Blind Stainless Steel Dome .187 X .44 InchMaxon 904005-1 - Rivet - Blind Stainless Steel Dome .187 X .44 Inch904005-1-MAXO$0.48
15Maxon 903420-01 - Ring Retain SLF/LCK .50 SSMaxon 903420-01 - Ring Retain SLF/LCK .50 SS903420-01-MAXO$1.58
16Maxon 903413-02 - Washer 6/6 Nylon .5 ID X .062 Inch THMaxon 903413-02 - Washer 6/6 Nylon .5 ID X .062 Inch TH903413-02-MAXO$0.18
17Maxon 283951-01 - Clevis Pin 1/4 X 1-5/8 InchMaxon 283951-01 - Clevis Pin 1/4 X 1-5/8 Inch283951-01-MAXO$6.90
18Maxon 905007-03 - Roll Pin DIM .156 X .63 Inch ZincMaxon 905007-03 - Roll Pin DIM .156 X .63 Inch Zinc905007-03-MAXO$0.17
19Maxon 903421-02 - Washer 6/6 Nylon .25 ID X .062 Inch THMaxon 903421-02 - Washer 6/6 Nylon .25 ID X .062 Inch TH903421-02-MAXO$0.18

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
