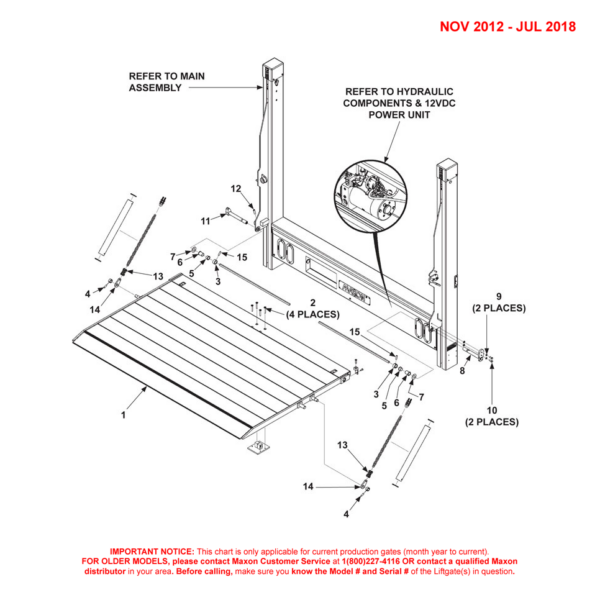

Maxon DMD (Nov 2012 - Jul 2018) Dual Torsion Bar 1-Piece Platform Final Assembly Diagram (1 OF 2)

Maxon DMD (Nov 2012 – Jul 2018) Dual Torsion Bar 1-Piece Platform Final Assembly Diagram (1 OF 2)

SKU: DMD-NOV12-JUL18-2TB1PCPF-FA-DG1 Category:
ID Image Title SKU Price Quantity Add to Cart
2Maxon 900061-10 - Flathead Screw SOC .375-16 2.50 LG SSTMaxon 900061-10 - Flathead Screw SOC .375-16 2.50 LG SST900061-10-MAXO$3.66
3Maxon 253630 - Pin Collar X 3/4 InchMaxon 253630 - Pin Collar X 3/4 Inch253630-MAXO$20.61
4Maxon 904723-04 - Pin Roll .38DIA X 1.5LG SSMaxon 904723-04 - Pin Roll .38DIA X 1.5LG SS904723-04-MAXO$2.94
5Maxon 261837-02 - Bushing - FLNG PLST 1.004 ID X .75 InchMaxon 261837-02 - Bushing - FLNG PLST 1.004 ID X .75 Inch261837-02-MAXO$15.95
6Maxon 261837-08 - Bushing FLNG PLST 1.004 ID X 1.50 InchMaxon 261837-08 - Bushing FLNG PLST 1.004 ID X 1.50 Inch261837-08-MAXO$20.37
7Maxon 905146-03 - Fiberglide Thrust BRG 1.03 Inch ID (USE 908078-01)Maxon 905146-03 - Fiberglide Thrust BRG 1.03 Inch ID (USE 908078-01)905146-03-MAXO$7.62
8Maxon 284070-02 - Pin P/F and Runner 6.44 Inch LG RHMaxon 284070-02 - Pin P/F and Runner 6.44 Inch LG RH284070-02-MAXO$58.50
8Maxon 284070-03 - Pin P/F and Runner 6.44 Inch LG RHMaxon 284070-03 - Pin P/F and Runner 6.44 Inch LG RH284070-03-MAXO$94.86
9Maxon 903448-02 - Washer NORD-Lock .38/M10 SSMaxon 903448-02 - Washer NORD-Lock .38/M10 SS903448-02-MAXO$4.25
10Maxon 900764-06 - Screw Hex Cap .38-16 X 1 Inch SSMaxon 900764-06 - Screw Hex Cap .38-16 X 1 Inch SS900764-06-MAXO$1.64
11Maxon 285992-01 - Pin Weldment Torsion BarMaxon 285992-01 - Pin Weldment Torsion Bar285992-01-MAXO$127.85
12Maxon 901209-09 - Screw Set Hex Cup .50-20 X 2 Inch SSMaxon 901209-09 - Screw Set Hex Cup .50-20 X 2 Inch SS901209-09-MAXO$8.03
13Maxon 285989-01 - Chain ShackleMaxon 285989-01 - Chain Shackle285989-01-MAXO$29.91
14Maxon 285990-01 - Bracket Chain HolderMaxon 285990-01 - Bracket Chain Holder285990-01-MAXO$20.52
15Maxon 904723-03 - Pin Roll .38DIA X 1.25LG SSMaxon 904723-03 - Pin Roll .38DIA X 1.25LG SS904723-03-MAXO$3.36

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
