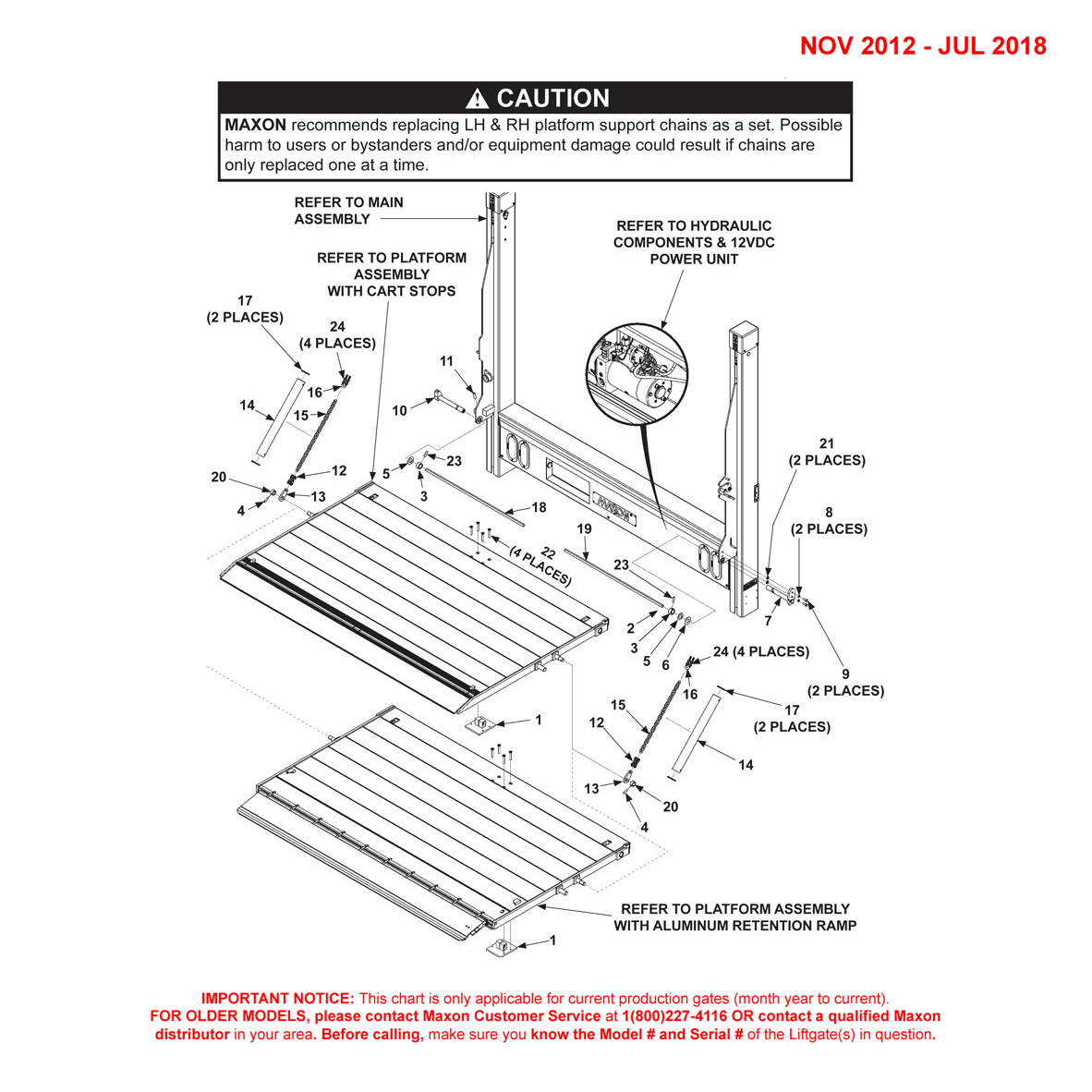

Maxon DMD (Nov 2012 - Jul 2018) Dual Torsion Bar 1-Piece Platform Final Assembly With Cartstop OR Aluminum Retention Ramp Diagram

Maxon DMD (Nov 2012 – Jul 2018) Dual Torsion Bar 1-Piece Platform Final Assembly With Cartstop OR Aluminum Retention Ramp Diagram

SKU: DMD-NOV12-JUL18-2TB1PCPF-FA-CS-ARR-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 285799-01 - Torsion Bar Housing WeldmentMaxon 285799-01 - Torsion Bar Housing Weldment285799-01-MAXO$128.81
2Maxon 285252-01 - Anchor Stop Weldment RHMaxon 285252-01 - Anchor Stop Weldment RH285252-01-MAXO$32.10
3Maxon 253630 - Pin Collar X 3/4 InchMaxon 253630 - Pin Collar X 3/4 Inch253630-MAXO$20.61
4Maxon 904723-04 - Pin Roll .38DIA X 1.5LG SSMaxon 904723-04 - Pin Roll .38DIA X 1.5LG SS904723-04-MAXO$2.94
5Maxon 902000-24 - Washer Flat 1.00 .090 Inch THKMaxon 902000-24 - Washer Flat 1.00 .090 Inch THK902000-24-MAXO$3.41
6Maxon 905146-03 - Fiberglide Thrust BRG 1.03 Inch ID (USE 908078-01)Maxon 905146-03 - Fiberglide Thrust BRG 1.03 Inch ID (USE 908078-01)905146-03-MAXO$7.62
7Maxon 284070-03 - Pin P/F and Runner 6.44 Inch LG RHMaxon 284070-03 - Pin P/F and Runner 6.44 Inch LG RH284070-03-MAXO$94.86
7Maxon 284070-04 - Pin P/F and Runner 9.44 Inch LG RHMaxon 284070-04 - Pin P/F and Runner 9.44 Inch LG RH284070-04-MAXO$99.60
8Maxon 903448-02 - Washer NORD-Lock .38/M10 SSMaxon 903448-02 - Washer NORD-Lock .38/M10 SS903448-02-MAXO$4.25
9Maxon 900764-06 - Screw Hex Cap .38-16 X 1 Inch SSMaxon 900764-06 - Screw Hex Cap .38-16 X 1 Inch SS900764-06-MAXO$1.64
10Maxon 285992-03 - Pin Weldment LP Torsion BarMaxon 285992-03 - Pin Weldment LP Torsion Bar285992-03-MAXO$131.78
11Maxon 901209-09 - Screw Set Hex Cup .50-20 X 2 Inch SSMaxon 901209-09 - Screw Set Hex Cup .50-20 X 2 Inch SS901209-09-MAXO$8.03
12Maxon 285989-01 - Chain ShackleMaxon 285989-01 - Chain Shackle285989-01-MAXO$29.91
13Maxon 285990-01 - Bracket Chain HolderMaxon 285990-01 - Bracket Chain Holder285990-01-MAXO$20.52
15Maxon 283209-02 - Chain (1/4 Inch) X 20 Inch LGMaxon 283209-02 - Chain (1/4 Inch) X 20 Inch LG283209-02-MAXO$29.19
16Maxon 283721-01 - U-Bolt 3/8-16 X 3.38 Inch LGMaxon 283721-01 - U-Bolt 3/8-16 X 3.38 Inch LG283721-01-MAXO$20.46
17Maxon 205780 - Tie Plastic 7 Inch (50 LB)Maxon 205780 - Tie Plastic 7 Inch (50 LB)205780-MAXO$0.30
18Maxon 263041-11 - Torsion Bar 39.19 Inch LGMaxon 263041-11 - Torsion Bar 39.19 Inch LG263041-11-MAXO$61.13
19Maxon 263041-12 - Torsion Bar 36.19 Inch LGMaxon 263041-12 - Torsion Bar 36.19 Inch LG263041-12-MAXO$84.63
19Maxon 263041-16 - Torsion Bar 48.19 Inch LGMaxon 263041-16 - Torsion Bar 48.19 Inch LG263041-16-MAXO$90.75
21Maxon 903447-01 - Flat Washer .375 X .032 Inch THK SSMaxon 903447-01 - Flat Washer .375 X .032 Inch THK SS903447-01-MAXO$0.14
22Maxon 900061-10 - Flathead Screw SOC .375-16 2.50 LG SSTMaxon 900061-10 - Flathead Screw SOC .375-16 2.50 LG SST900061-10-MAXO$3.66
23Maxon 904723-03 - Pin Roll .38DIA X 1.25LG SSMaxon 904723-03 - Pin Roll .38DIA X 1.25LG SS904723-03-MAXO$3.36
24Maxon 902019-5 - Washer Lock S/ST .680 OD X .385 ID InchMaxon 902019-5 - Washer Lock S/ST .680 OD X .385 ID Inch902019-5-MAXO$0.45

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
