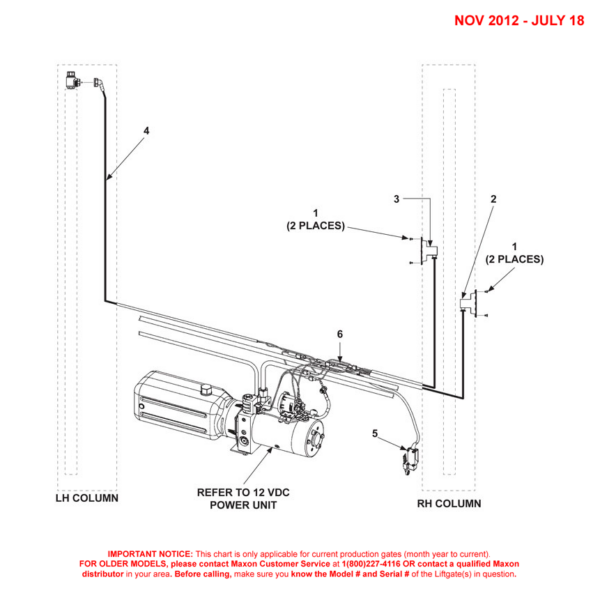

Maxon DMD (Nov 2012 - Jul 2018) Electrical Components Diagram

Maxon DMD (Nov 2012 – Jul 2018) Electrical Components Diagram

SKU: DMD-NOV12-JUL18-EC-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 900766-01 - Screw Self Tap 10-24 X .38 PH SSMaxon 900766-01 - Screw Self Tap 10-24 X .38 PH SS900766-01-MAXO$0.14
2Maxon 288638-01 - Switch and Cable Assembly U/DMaxon 288638-01 - Switch and Cable Assembly U/D288638-01-MAXO$152.46
3Maxon 288638-03 - Switch and Cable Assembly U/D ICMaxon 288638-03 - Switch and Cable Assembly U/D IC288638-03-MAXO$144.26
4Maxon 283554-01 - KOSTAL Connector Assembly 138 Inch LGMaxon 283554-01 - KOSTAL Connector Assembly 138 Inch LG283554-01-MAXO$94.92
6Maxon 283557-01 - Wire Assembly 16 GA BlackMaxon 283557-01 - Wire Assembly 16 GA Black283557-01-MAXO$17.60

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
