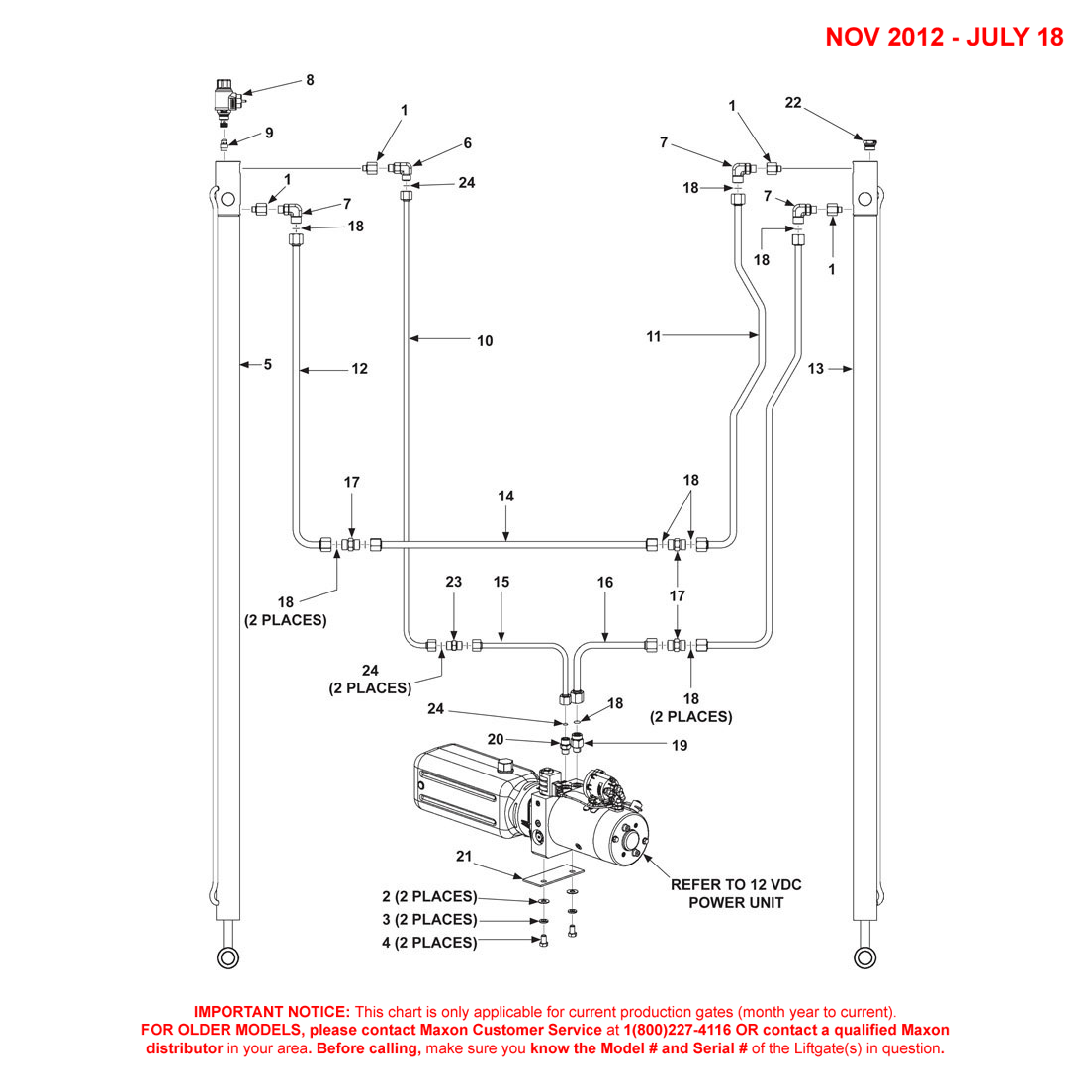

Maxon DMD (Nov 2012 - Jul 2018) Hydraulic Components Diagram

Maxon DMD (Nov 2012 – Jul 2018) Hydraulic Components Diagram

SKU: DMD-NOV12-JUL18-HYDC-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 906761-01 - Connector OR #4 OR #6 M-FMaxon 906761-01 - Connector OR #4 OR #6 M-F906761-01-MAXO$11.10
2Maxon 903409-03 - Washer - FEND .41 X .88 Inch OD SSMaxon 903409-03 - Washer - FEND .41 X .88 Inch OD SS903409-03-MAXO$0.14
3Maxon 902019-5 - Washer Lock S/ST .680 OD X .385 ID InchMaxon 902019-5 - Washer Lock S/ST .680 OD X .385 ID Inch902019-5-MAXO$0.45
5Maxon 287856-01 - Master Cylinder 1.50 X 52.31 X .63Maxon 287856-01 - Master Cylinder 1.50 X 52.31 X .63287856-01-MAXO$2,344.88
6Maxon 906704-02 - Elbow NPSC SAE #6 F/S O-R M-MMaxon 906704-02 - Elbow NPSC SAE #6 F/S O-R M-M906704-02-MAXO$52.47
7Maxon 905158 - Elbow Straight F/S#-O-R #6Maxon 905158 - Elbow Straight F/S#-O-R #6905158-MAXO$69.20
8Maxon 5-30036 - 12V Logic ValveMaxon 5-30036 - 12V Logic Valve5-30036-MAXO$195.32
9Maxon 906717-02 - Flow Control Valve 1.5 GPMMaxon 906717-02 - Flow Control Valve 1.5 GPM906717-02-MAXO$112.17
10Maxon 286440-01 - F/S Tube Assembly 63.38 Inch LGMaxon 286440-01 - F/S Tube Assembly 63.38 Inch LG286440-01-MAXO$51.39
11Maxon 285405-01 - 3/8 F/S Tube Assembly SSMaxon 285405-01 - 3/8 F/S Tube Assembly SS285405-01-MAXO$711.77
12Maxon 283212-05 - Return Line Assembly LH CLMNMaxon 283212-05 - Return Line Assembly LH CLMN283212-05-MAXO$53.84
17Maxon 905161 - Union F/S #8 M-MMaxon 905161 - Union F/S #8 M-M905161-MAXO$11.07
18Maxon 906712-03 - Tube End O-Ring #8 1/2 ORFSMaxon 906712-03 - Tube End O-Ring #8 1/2 ORFS906712-03-MAXO$1.39
19Maxon 906762-01 - Connector M-M (0.562-18 X 0.812-16 Inches)Maxon 906762-01 - Connector M-M (0.562-18 X 0.812-16 Inches)906762-01-MAXO$5.45
20Maxon 905173 - Connector F/S#6 and O-R#6 M-MMaxon 905173 - Connector F/S#6 and O-R#6 M-M905173-MAXO$3.51
22Maxon 906864-01 - Hex Head Plug M20X1.5 THRDMaxon 906864-01 - Hex Head Plug M20X1.5 THRD906864-01-MAXO$12.87
23Maxon 905175 - Union F/S #6 M-MMaxon 905175 - Union F/S #6 M-M905175-MAXO$11.66
24Maxon 906712-02 - Tube End O-Ring #6 3/8 ORFSMaxon 906712-02 - Tube End O-Ring #6 3/8 ORFS906712-02-MAXO$1.30

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
