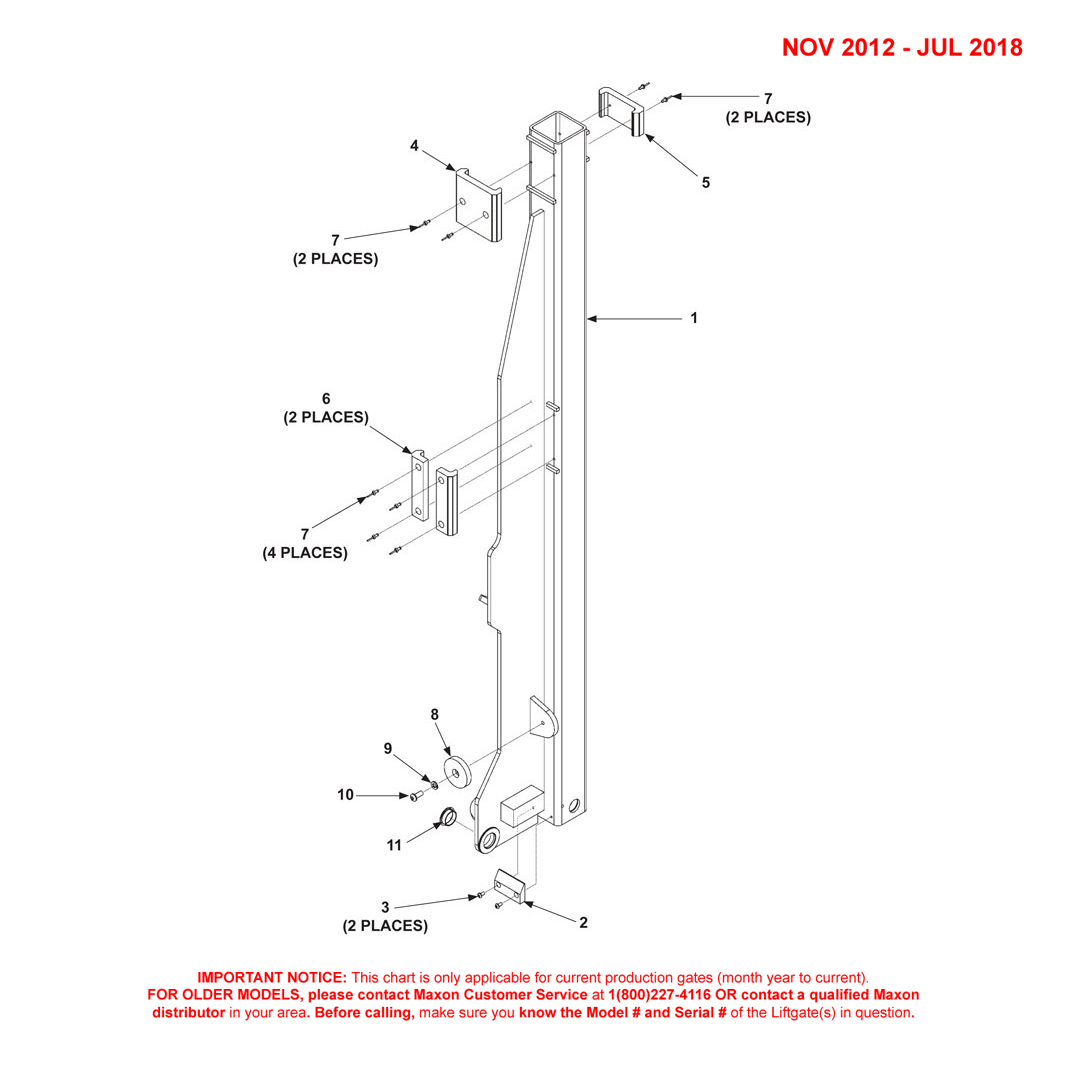

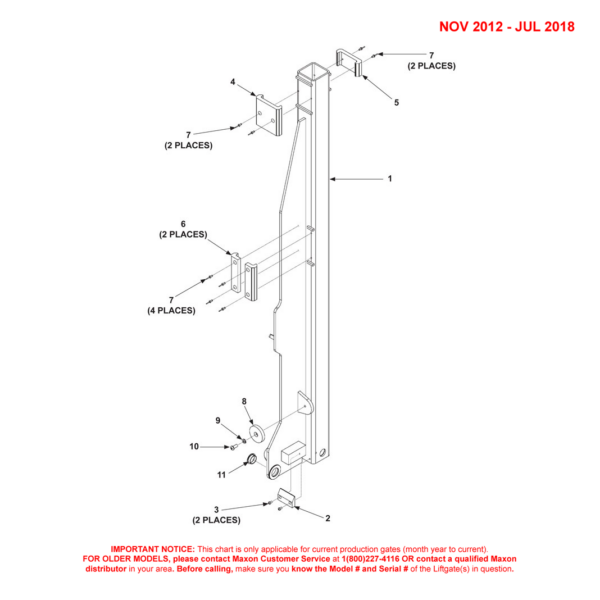

Maxon DMD (Nov 2012 - Jul 2018) LH Runner 2-Piece Platform Diagram

Maxon DMD (Nov 2012 – Jul 2018) LH Runner 2-Piece Platform Diagram

SKU: DMD-NOV12-JUL18-LHR-2PCPF-DG Category:
ID Image Title SKU Price Quantity Add to Cart
2Maxon 284285-01 - Runner BumperMaxon 284285-01 - Runner Bumper284285-01-MAXO$16.16
3Maxon 900722-02 - Screw BTN 10-24 X .38 Inch SSMaxon 900722-02 - Screw BTN 10-24 X .38 Inch SS900722-02-MAXO$2.00
4Maxon 283232-01 - Wear Pad 4.0 Inch LG W/CHAMFERMaxon 283232-01 - Wear Pad 4.0 Inch LG W/CHAMFER283232-01-MAXO$35.21
5Maxon 283232-03 - Wear Pad 2 Inch LGMaxon 283232-03 - Wear Pad 2 Inch LG283232-03-MAXO$30.60
6Maxon 283233-01 - Wear Pad 5 Inch LGMaxon 283233-01 - Wear Pad 5 Inch LG283233-01-MAXO$44.70
7Maxon 903706-04 - Rivet BLD Dome AL/AL .156 X .53Maxon 903706-04 - Rivet BLD Dome AL/AL .156 X .53903706-04-MAXO$0.12
9Maxon 902019-4 - Washer Lock S/ST .583 OD X .322 ID InchMaxon 902019-4 - Washer Lock S/ST .583 OD X .322 ID Inch902019-4-MAXO$0.12
10Maxon 900763-03 - Screw BTN .31-18 X .63 SSMaxon 900763-03 - Screw BTN .31-18 X .63 SS900763-03-MAXO$0.41
11Maxon 265062 - Bearing Self LUB 1.0 DIA X .375 Inch LGMaxon 265062 - Bearing Self LUB 1.0 DIA X .375 Inch LG265062-MAXO$13.10

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
