| ID | Image | Title | SKU | Price | Quantity | Add to Cart |
|---|---|---|---|---|---|---|
| 3 |  | Maxon 903705-02 - Rivet BLD DOME AL/ST .25 X .6 | 903705-02-MAXO | $0.36 | ||
| 4 | | Maxon 267581-02 - Spring F/Over C/ST .75 X 42 Inch LG | 267581-02-MAXO | $92.90 | ||
| 5 | | Maxon 267094-04 - Pin Cart Stop 9.75 Inch LG | 267094-04-MAXO | $14.67 | ||
| 6 | | Maxon 267088-01 - Link - Cart Stop | 267088-01-MAXO | $15.92 | ||
| 7 | | Maxon 267094-03 - Pin Cart Stop 5 Inch LG | 267094-03-MAXO | $14.67 | ||
| 8 | | Maxon 905314-05 - Bumper CYL w/ Washer 1.5 X .75 Inch | 905314-05-MAXO | $4.59 | ||
| 9 | | Maxon 904719-03 - Pin Roll .188 X .56 Inch LG SS | 904719-03-MAXO | $0.27 | ||
| 10 | | Maxon 903409-07 - Washer FEND .28 X 1.25 Inch OD SS | 903409-07-MAXO | $0.41 | ||
| 12 | | Maxon 903705-06 - Rivet BLD Dome AL/ST .25 X 1.2 Inch | 903705-06-MAXO | $0.78 |
DMD (Nov 2012 - Jul 2018) Diagrams

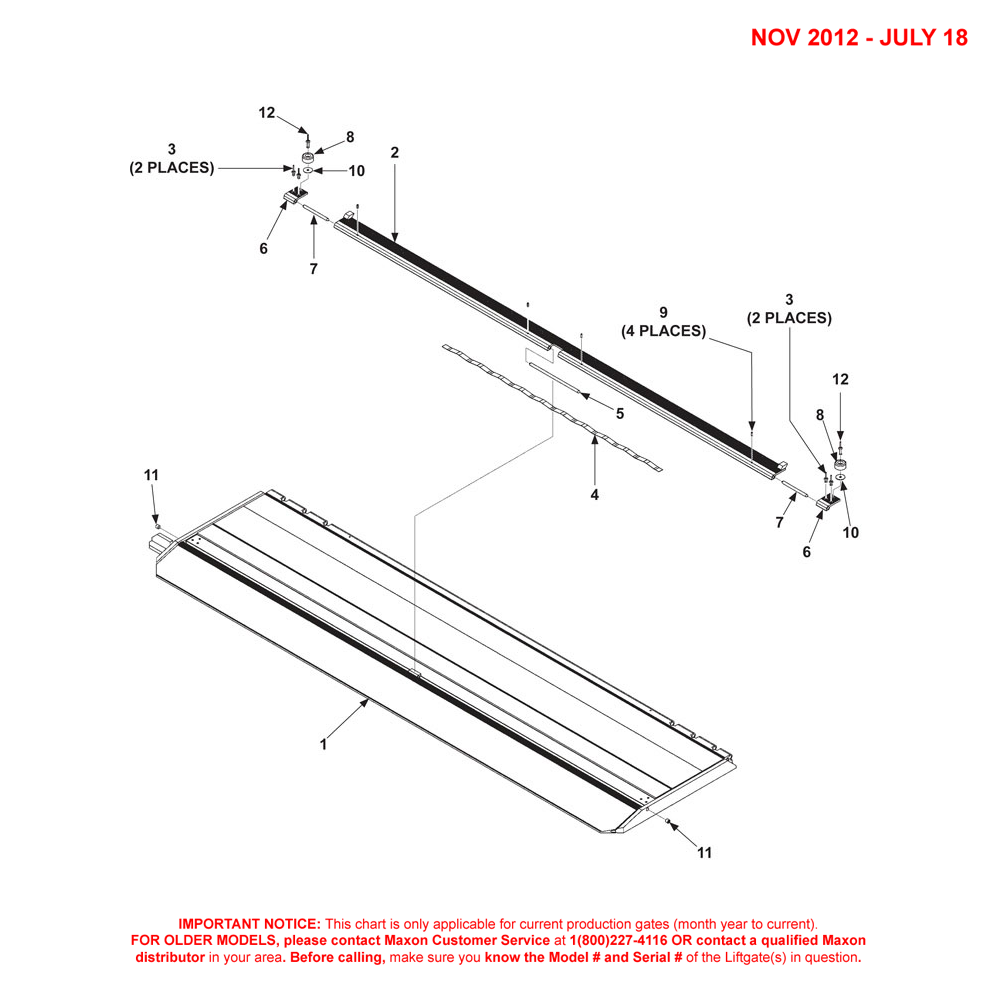

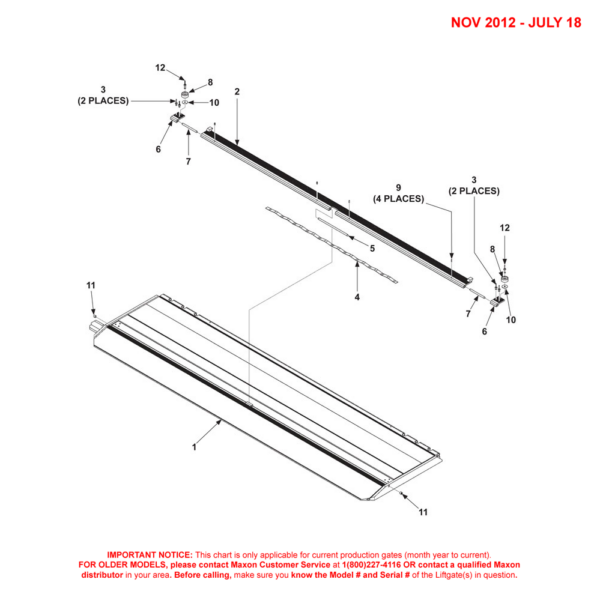

Maxon DMD (Nov 2012 – Jul 2018) Platform And Flipover Assembly With Single Cartstop Diagram
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:
- LOCATE YOUR SERIAL PLATE on your Liftgate.
- LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
- IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
- IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!
DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
