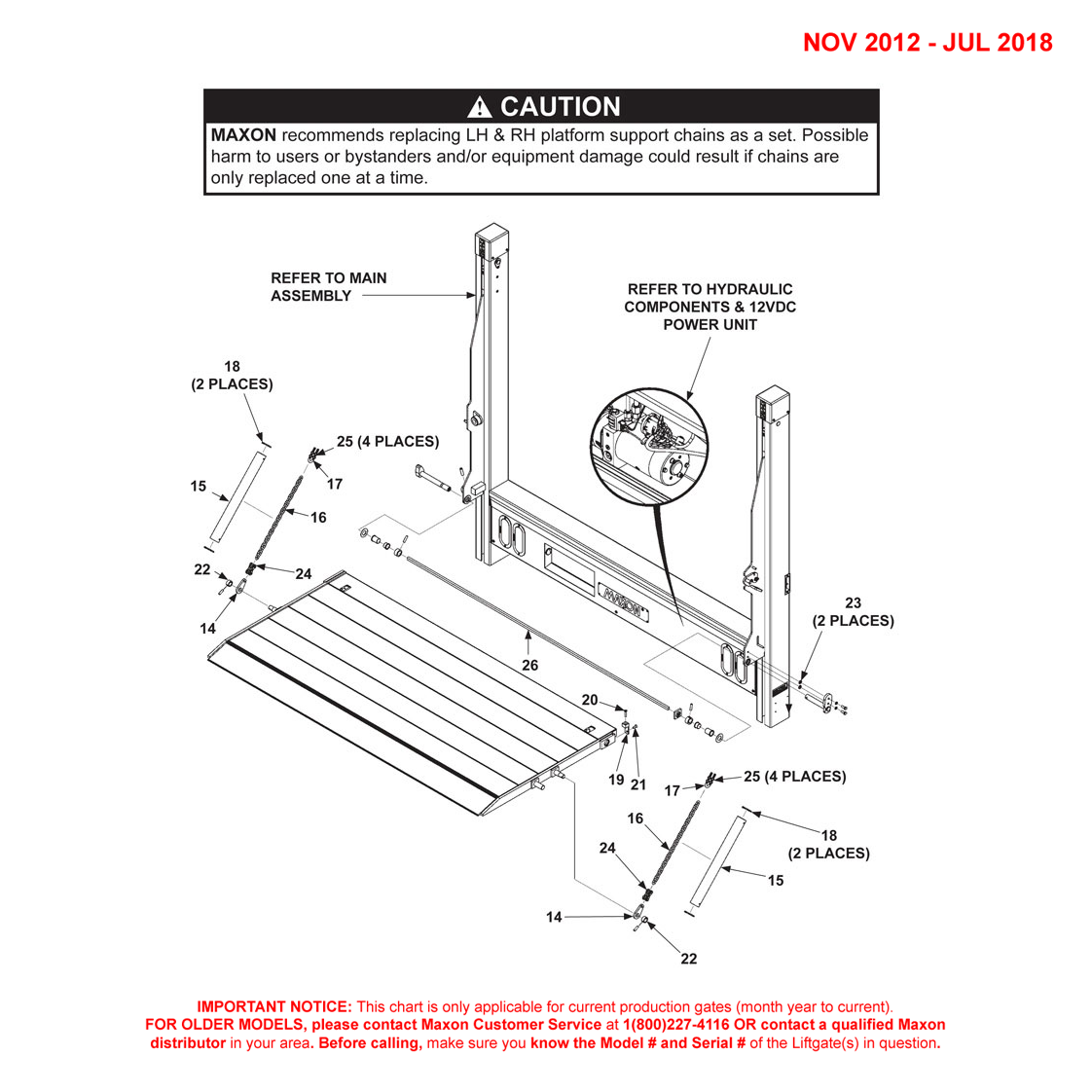

Maxon DMD (Nov 2012 - Jul 2018) Single Torsion Bar 1-Piece Platform Final Assembly Diagram (2 OF 2)

Maxon DMD (Nov 2012 – Jul 2018) Single Torsion Bar 1-Piece Platform Final Assembly Diagram (2 OF 2)

SKU: DMD-NOV12-JUL18-1TB1PCPF-FA-DG2 Category:
ID Image Title SKU Price Quantity Add to Cart
14Maxon 285990-01 - Bracket Chain HolderMaxon 285990-01 - Bracket Chain Holder285990-01-MAXO$20.52
16Maxon 283209-02 - Chain (1/4 Inch) X 20 Inch LGMaxon 283209-02 - Chain (1/4 Inch) X 20 Inch LG283209-02-MAXO$29.19
17Maxon 283721-01 - U-Bolt 3/8-16 X 3.38 Inch LGMaxon 283721-01 - U-Bolt 3/8-16 X 3.38 Inch LG283721-01-MAXO$20.46
18Maxon 205780 - Tie Plastic 7 Inch (50 LB)Maxon 205780 - Tie Plastic 7 Inch (50 LB)205780-MAXO$0.30
19Maxon 285579-01 - Wear PlateMaxon 285579-01 - Wear Plate285579-01-MAXO$60.50
20Maxon 900712-01 - Screw SOC FL .312-18 X 1.5 SSMaxon 900712-01 - Screw SOC FL .312-18 X 1.5 SS900712-01-MAXO$1.71
21Maxon 900712-02 - Screw SOC FL .312-18 X 1.0 SSMaxon 900712-02 - Screw SOC FL .312-18 X 1.0 SS900712-02-MAXO$1.52
23Maxon 903447-01 - Flat Washer .375 X .032 Inch THK SSMaxon 903447-01 - Flat Washer .375 X .032 Inch THK SS903447-01-MAXO$0.14
24Maxon 285989-01 - Chain ShackleMaxon 285989-01 - Chain Shackle285989-01-MAXO$29.91
25Maxon 902019-5 - Washer Lock S/ST .680 OD X .385 ID InchMaxon 902019-5 - Washer Lock S/ST .680 OD X .385 ID Inch902019-5-MAXO$0.45
26Maxon 263041-08 - Torsion Bar 72.63 LGMaxon 263041-08 - Torsion Bar 72.63 LG263041-08-MAXO$172.53
26Maxon 263041-09 - Torsion Bar 78.63 LGMaxon 263041-09 - Torsion Bar 78.63 LG263041-09-MAXO$230.33
26Maxon 263041-10 - Torsion Bar 84.63 LGMaxon 263041-10 - Torsion Bar 84.63 LG263041-10-MAXO$163.68

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
