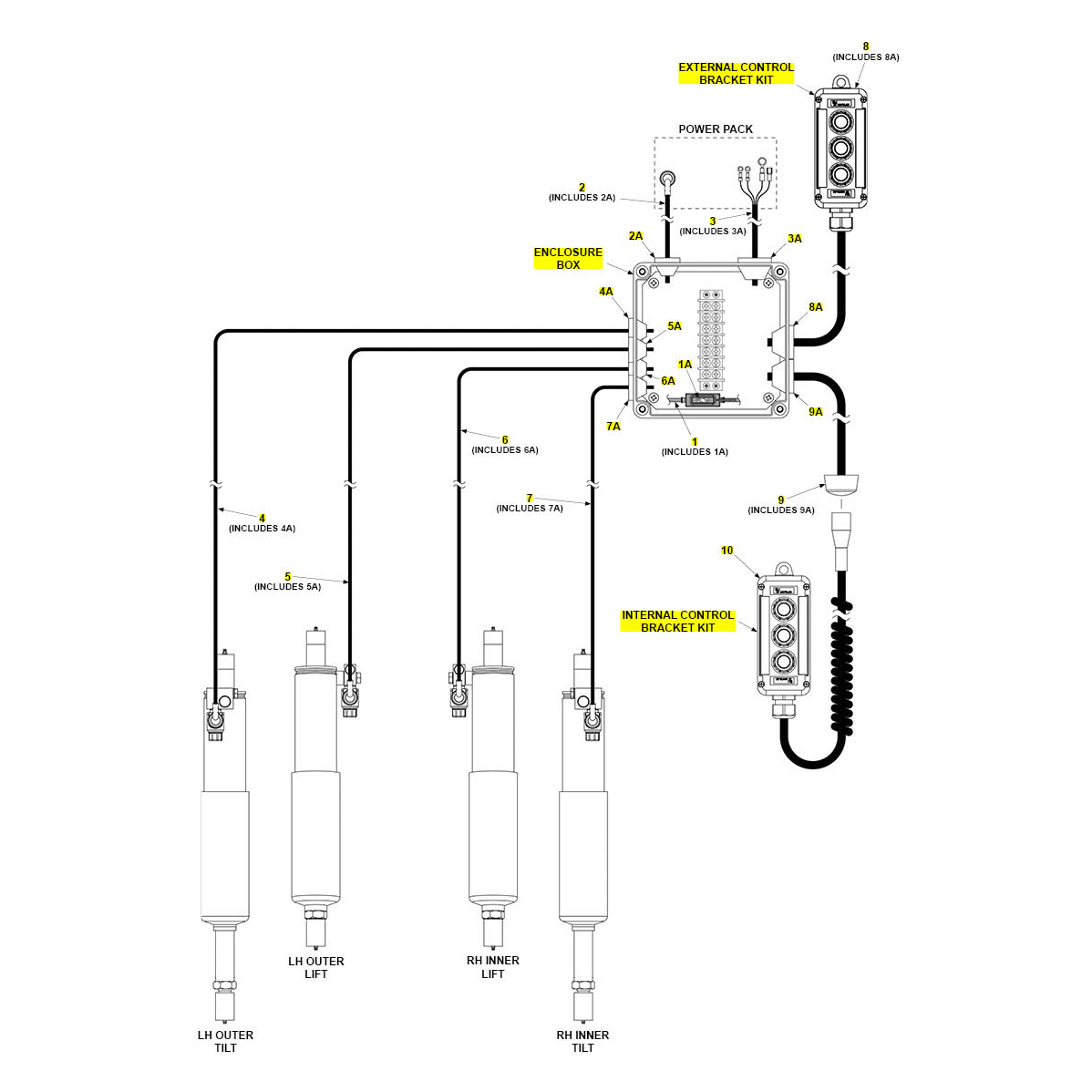

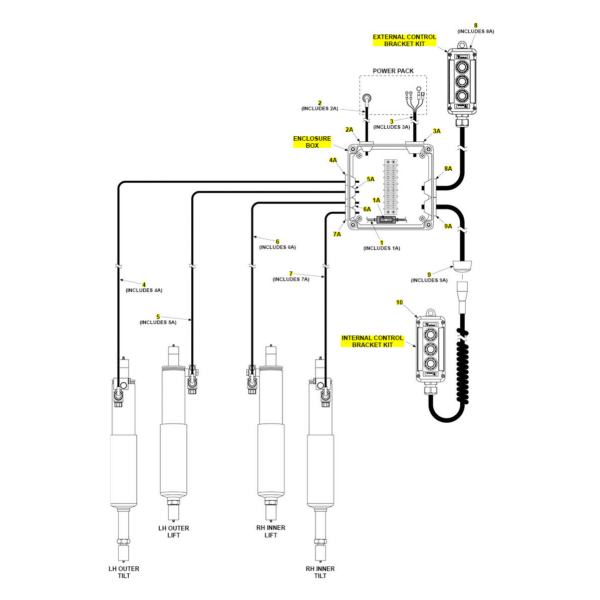

Maxon GPC (Dec 2018 - Present) Electrical Systems With Auto-Tilt Diagram

Maxon GPC (Dec 2018 – Present) Electrical Systems With Auto-Tilt Diagram

SKU: GPC-DEC18-PRES-ELECSYSWAUTO-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 269076-01 - In Line Fuse Assembly 10 AMPMaxon 269076-01 - In Line Fuse Assembly 10 AMP269076-01-MAXO$18.33
1Maxon 7-10004-05 - Fuse 10 AMPMaxon 7-10004-05 - Fuse 10 AMP7-10004-05-MAXO$3.53
2Maxon 284126-01 - KOSTAL ConnectorMaxon 284126-01 - KOSTAL Connector284126-01-MAXO$83.28
2Maxon 5-60025 - TET 5-7 Rubber GrommetMaxon 5-60025 - TET 5-7 Rubber Grommet5-60025-MAXO$8.76
4Maxon 284186-01 - KOSTAL CONNEC Outer Tilt 116 InchMaxon 284186-01 - KOSTAL CONNEC Outer Tilt 116 Inch284186-01-MAXO$103.76
5Maxon 284186-02 - KOSTAL Connector Inner Lift 112.5 Inch LGMaxon 284186-02 - KOSTAL Connector Inner Lift 112.5 Inch LG284186-02-MAXO$103.70
5Maxon 5-60025 - TET 5-7 Rubber GrommetMaxon 5-60025 - TET 5-7 Rubber Grommet5-60025-MAXO$8.76
6Maxon 284186-03 - KOSTAL Connector Inner Lift 65.5 Inch LGMaxon 284186-03 - KOSTAL Connector Inner Lift 65.5 Inch LG284186-03-MAXO$93.51
6Maxon 5-60025 - TET 5-7 Rubber GrommetMaxon 5-60025 - TET 5-7 Rubber Grommet5-60025-MAXO$8.76
7Maxon 284186-04 - KOSTAL Connector Outer Tilt 63 Inch LGMaxon 284186-04 - KOSTAL Connector Outer Tilt 63 Inch LG284186-04-MAXO$77.37
7Maxon 5-60025 - TET 5-7 Rubber GrommetMaxon 5-60025 - TET 5-7 Rubber Grommet5-60025-MAXO$8.76
8Maxon 269079-02 - EXT Control Assembly AUTOTILTMaxon 269079-02 - EXT Control Assembly AUTOTILT269079-02-MAXO$401.78
8Maxon 5-60023 - TET 10-14 Rubber GrommetMaxon 5-60023 - TET 10-14 Rubber Grommet5-60023-MAXO$1.83
9Maxon 269138-02 - Cable Wire INTER CNTRL Auto TiltMaxon 269138-02 - Cable Wire INTER CNTRL Auto Tilt269138-02-MAXO$131.88
9Maxon 284126-01 - KOSTAL ConnectorMaxon 284126-01 - KOSTAL Connector284126-01-MAXO$83.28
10Maxon 269140-01 - INT Hand Held CNTL GPCMaxon 269140-01 - INT Hand Held CNTL GPC269140-01-MAXO$750.09

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
