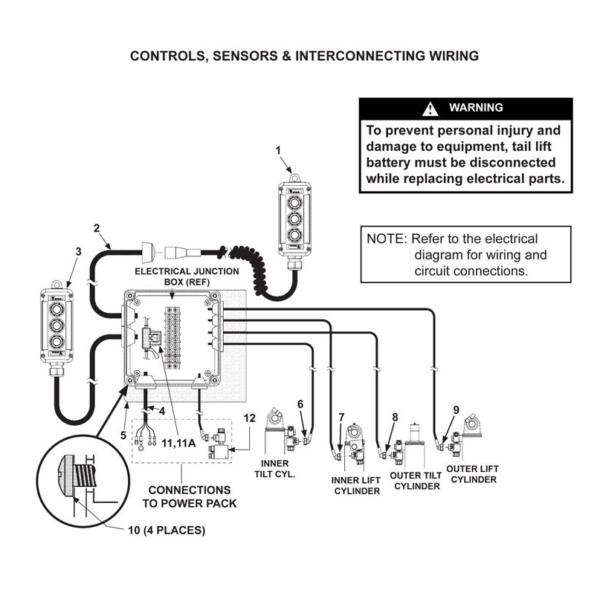

Maxon GPC (Oct 2012 - Nov 2018) Hydraulic Components Without Auto-Tilt Diagram From ITEParts.com

ID	Title	SKU	Price
1	Maxon 269140-01 - INT Hand Held CNTL GPC	269140-01-MAXO	$750.09
2	Maxon 269138-01 - Cable Wire Internal Control	269138-01-MAXO	$155.22
3	Maxon 269079-01 - External Control Assembly	269079-01-MAXO	$372.51
5	Maxon 3-100817 - PCB Mounting Angle	3-100817-MAXO	$14.84
6	Maxon 284186-03 - KOSTAL Connector Inner Lift 65.5 Inch LG	284186-03-MAXO	$93.51
7	Maxon 284186-04 - KOSTAL Connector Outer Tilt 63 Inch LG	284186-04-MAXO	$77.37
8	Maxon 284186-01 - KOSTAL CONNEC Outer Tilt 116 Inch	284186-01-MAXO	$103.76
9	Maxon 284186-02 - KOSTAL Connector Inner Lift 112.5 Inch LG	284186-02-MAXO	$103.70
11	Maxon 269076-01 - In Line Fuse Assembly 10 AMP	269076-01-MAXO	$18.33
11	Maxon 7-10004-05 - Fuse 10 AMP	7-10004-05-MAXO	$3.53
12	Maxon 284126-01 - KOSTAL Connector	284126-01-MAXO	$83.28

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

LOCATE YOUR SERIAL PLATE on your Liftgate.
LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.
