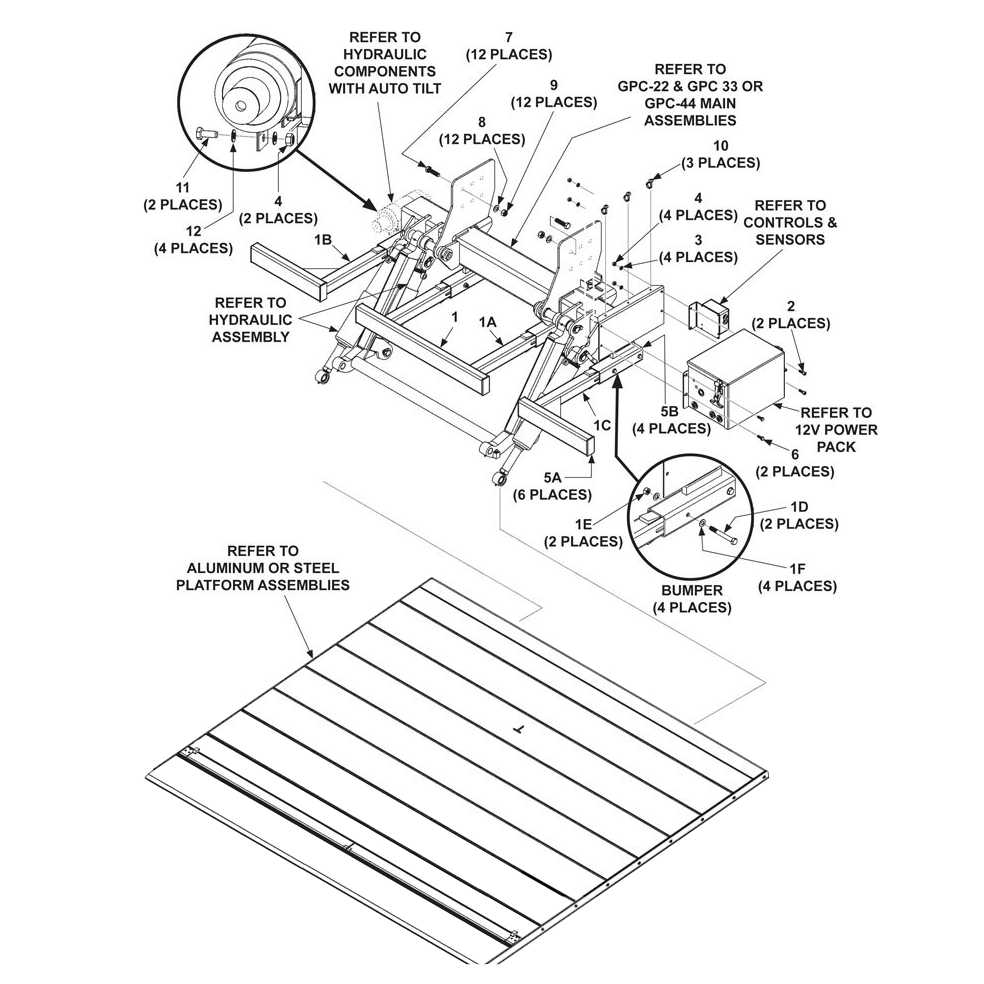

Maxon GPC (Oct 2012 - Nov 2018) Main Assembly With Standard Underrun Bumper Diagram

Maxon GPC (Oct 2012 – Nov 2018) Main Assembly With Standard Underrun Bumper Diagram

SKU: GPC-OCT12-NOV18-MASURB-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 3-100866-03 - STD Underrun Bumper w/ SlotMaxon 3-100866-03 - STD Underrun Bumper w/ Slot3-100866-03-MAXO$1,138.80
1Maxon 4-100869-02 - Underrun STD N/S Weld 2400 MMMaxon 4-100869-02 - Underrun STD N/S Weld 2400 MM4-100869-02-MAXO$249.72
1Maxon 4-100870-03 - Underrun STD O/S Weld W/SlotMaxon 4-100870-03 - Underrun STD O/S Weld W/Slot4-100870-03-MAXO$333.74
3Maxon 903435-06 - Washer Nord-Lock .38/M10 ZCMaxon 903435-06 - Washer Nord-Lock .38/M10 ZC903435-06-MAXO$2.60
5Maxon 5-13024 - 100 X 50 Plastic End CapsMaxon 5-13024 - 100 X 50 Plastic End Caps5-13024-MAXO$6.12
5Maxon 5-13090 - 60 X 60 Black Plastic End CapsMaxon 5-13090 - 60 X 60 Black Plastic End Caps5-13090-MAXO$10.89

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
