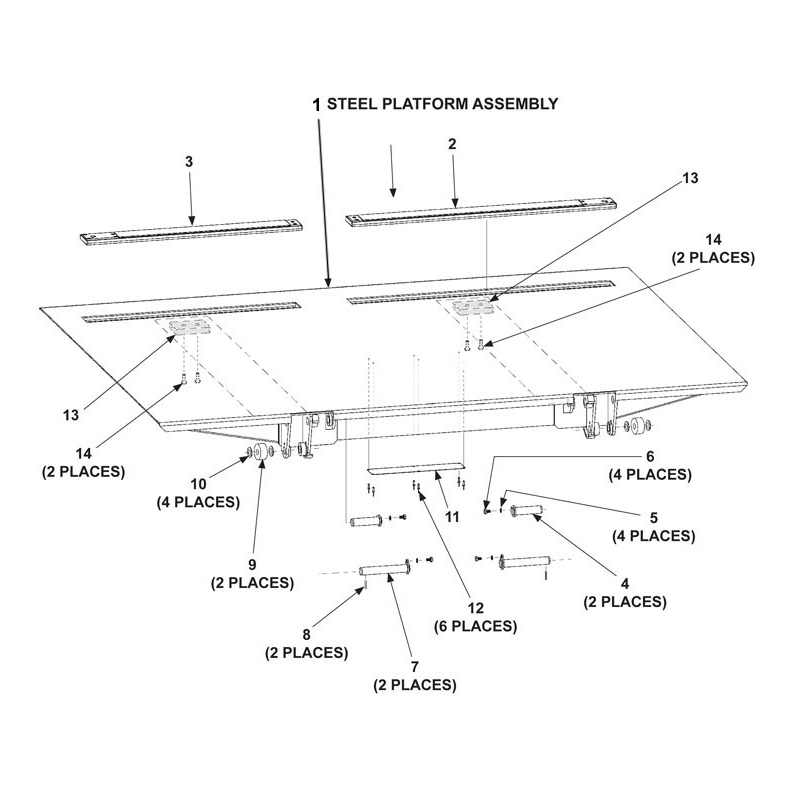

Maxon GPC (Oct 2012 - Nov 2018) Steel Platform Assembly Diagram

Maxon GPC (Oct 2012 – Nov 2018) Steel Platform Assembly Diagram

SKU: GPC-OCT12-NOV18-SPFA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 7-10100-2400 - P/F DCS ST 96 Inch - 73 X 94.5 InchMaxon 7-10100-2400 - P/F DCS ST 96 Inch - 73 X 94.5 Inch7-10100-2400-MAXO$5,118.75
2Maxon 3-99238 - Nearside T/S Assembly For 900MM FLMaxon 3-99238 - Nearside T/S Assembly For 900MM FL3-99238-MAXO$626.39
3Maxon 3-99237 - Offside Trolley Stop ASY 700MMMaxon 3-99237 - Offside Trolley Stop ASY 700MM3-99237-MAXO$578.78
4Maxon 4-100895 - Pin Assembly Header/Lift FULCRUMMaxon 4-100895 - Pin Assembly Header/Lift FULCRUM4-100895-MAXO$45.51
5Maxon 903435-06 - Washer Nord-Lock .38/M10 ZCMaxon 903435-06 - Washer Nord-Lock .38/M10 ZC903435-06-MAXO$2.60
6Maxon NB13510-16S - M10 X 16 Hex Head Set ScrewMaxon NB13510-16S - M10 X 16 Hex Head Set ScrewNB13510-16S-MAXO$0.84
7Maxon 4-101883 - Anti-Skid Roller Pin WeldmentMaxon 4-101883 - Anti-Skid Roller Pin Weldment4-101883-MAXO$53.64
8Maxon 5-05018 - SELLOC Pin 6MM X 40MM LGMaxon 5-05018 - SELLOC Pin 6MM X 40MM LG5-05018-MAXO$5.15
9Maxon 3-101880 - Anti-Skid UHMW RollerMaxon 3-101880 - Anti-Skid UHMW Roller3-101880-MAXO$50.48
10Maxon NB13530-W - Flat Washer 30MM DIAMaxon NB13530-W - Flat Washer 30MM DIANB13530-W-MAXO$1.58
12Maxon 207644 - Rivet BLND 0.19 X.58 DomeMaxon 207644 - Rivet BLND 0.19 X.58 Dome207644-MAXO$0.32
13Maxon DL0223 - Side PadMaxon DL0223 - Side PadDL0223-MAXO$42.42

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
