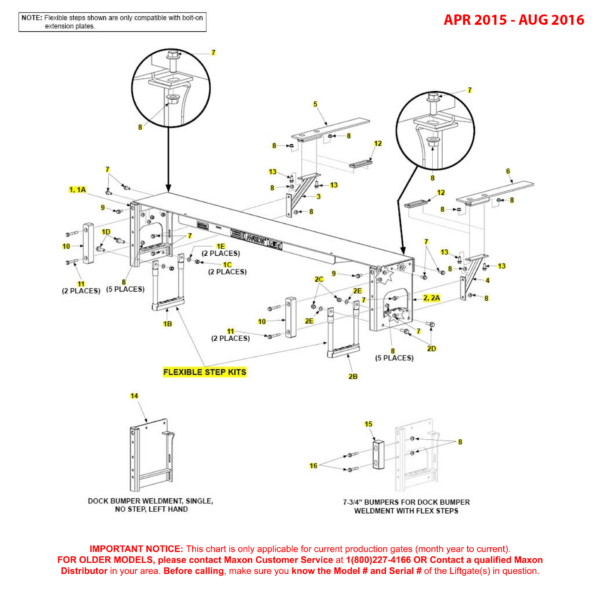

Maxon GPT-25/3/4/5 (Apr 2015 - Aug 2016) Flexible Step Kits Diagram

Maxon GPT-25/3/4/5 (Apr 2015 – Aug 2016) Flexible Step Kits Diagram

SKU: GPT25-GPT3-GPT4-GPT5-APR15-AUG16-FSK-DG Category:
ID Image Title SKU Price Quantity Add to Cart
0Maxon 287040-01G - Kit D/Step W/LWR FLX STP and 2 Inch PE Bumper GMaxon 287040-01G - Kit D/Step W/LWR FLX STP and 2 Inch PE Bumper G287040-01G-MAXO$2,543.78
0Maxon 287040-02G - Kit D/Step W/LWR FLX STP and 2 Inch Rubber Bumper GMaxon 287040-02G - Kit D/Step W/LWR FLX STP and 2 Inch Rubber Bumper G287040-02G-MAXO$2,457.00
0Maxon 287040-02 - Kit D/Step W/LWR FLX STP and 2 Inch Rubber BumperMaxon 287040-02 - Kit D/Step W/LWR FLX STP and 2 Inch Rubber Bumper287040-02-MAXO$2,102.10
1Maxon 287041-01G - D/Step Assembly W/LWR FLX Step GPTB LH GALMaxon 287041-01G - D/Step Assembly W/LWR FLX Step GPTB LH GAL287041-01G-MAXO$898.28
1Maxon 287041-01 - D/Step Assembly W/LWR FLX Step GPTB LHMaxon 287041-01 - D/Step Assembly W/LWR FLX Step GPTB LH287041-01-MAXO$702.81
1Maxon 287042-01G - Dock Bumper Weldment Single W/FLX Step LH GMaxon 287042-01G - Dock Bumper Weldment Single W/FLX Step LH G287042-01G-MAXO$330.81
1Maxon 287042-01 - Dock Bumper Weldment Single W/FLX Step LHMaxon 287042-01 - Dock Bumper Weldment Single W/FLX Step LH287042-01-MAXO$298.37
2Maxon 286736-01 - BOT Step Weldment Wire Rope GPTMaxon 286736-01 - BOT Step Weldment Wire Rope GPT286736-01-MAXO$470.54
2Maxon 287041-02G - D/Step Assembly W/LWR FLX Step GPTB RH GALMaxon 287041-02G - D/Step Assembly W/LWR FLX Step GPTB RH GAL287041-02G-MAXO$898.28
2Maxon 287041-02 - D/Step Assembly W/LWR FLX Step GPTB RHMaxon 287041-02 - D/Step Assembly W/LWR FLX Step GPTB RH287041-02-MAXO$683.75
2Maxon 287042-02G - Dock Bumper Weldment Single W/FLX Step RH GMaxon 287042-02G - Dock Bumper Weldment Single W/FLX Step RH G287042-02G-MAXO$337.73
2Maxon 901023-04 - Flange Lock Nut 63-11 ZCMaxon 901023-04 - Flange Lock Nut 63-11 ZC901023-04-MAXO$1.82
2Maxon 901615-04 - Bolt Hex Flange .63-11 X 2 Inch LGMaxon 901615-04 - Bolt Hex Flange .63-11 X 2 Inch LG901615-04-MAXO$3.24
2Maxon 902000-18 - Flat Washer .625 .063 THKMaxon 902000-18 - Flat Washer .625 .063 THK902000-18-MAXO$0.38
3Maxon 286738-01G - Support Weldment LH GALVMaxon 286738-01G - Support Weldment LH GALV286738-01G-MAXO$104.49
3Maxon 286738-01 - Support Weldment LHMaxon 286738-01 - Support Weldment LH286738-01-MAXO$108.74
4Maxon 286738-02G - Support Weldment RH GALVMaxon 286738-02G - Support Weldment RH GALV286738-02G-MAXO$104.49
4Maxon 286738-02 - Support Weldment RHMaxon 286738-02 - Support Weldment RH286738-02-MAXO$108.74
5Maxon 286734-01G - Channel Mounting Weldment LH GALVMaxon 286734-01G - Channel Mounting Weldment LH GALV286734-01G-MAXO$120.54
5Maxon 286734-01 - Channel Mounting Weldment - Left HandMaxon 286734-01 - Channel Mounting Weldment - Left Hand286734-01-MAXO$88.32
6Maxon 286734-02G - Channel Mounting Weldment RH GALVMaxon 286734-02G - Channel Mounting Weldment RH GALV286734-02G-MAXO$112.64
6Maxon 286734-02 - Channel Mounting Weldment RHMaxon 286734-02 - Channel Mounting Weldment RH286734-02-MAXO$88.29
7Maxon 901024-1 - Bolt Hex Frame .5-13 X 1.25 Inch LGMaxon 901024-1 - Bolt Hex Frame .5-13 X 1.25 Inch LG901024-1-MAXO$2.37
8Maxon 901023 - Flange Lock NutMaxon 901023 - Flange Lock Nut901023-MAXO$1.29
9Maxon 901024-5 - Bolt Hex Frame 0.5-13 X 1.50 Inch LGMaxon 901024-5 - Bolt Hex Frame 0.5-13 X 1.50 Inch LG901024-5-MAXO$1.55
10Maxon 285492-02 - Bumper - 2 X 2 X 11 Inch LGMaxon 285492-02 - Bumper - 2 X 2 X 11 Inch LG285492-02-MAXO$86.18
11Maxon 901024-6 - Bolt Hex Frame .5-13 X 3.25 Inch LGMaxon 901024-6 - Bolt Hex Frame .5-13 X 3.25 Inch LG901024-6-MAXO$4.44
12Maxon 289696-01 - Spacer Jumper .75 Inch ThickMaxon 289696-01 - Spacer Jumper .75 Inch Thick289696-01-MAXO$32.72
13Maxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LGMaxon 901024-7 - Bolt Hex Frame 0.5-13 X 2.00 Inch LG901024-7-MAXO$1.83
14Maxon 287042-03G - Dock Bumper Weldment Single No Step LH GMaxon 287042-03G - Dock Bumper Weldment Single No Step LH G287042-03G-MAXO$385.94
15Maxon 905316-01 - Bumper 2.44 X 7.75 InchMaxon 905316-01 - Bumper 2.44 X 7.75 Inch905316-01-MAXO$28.98

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
