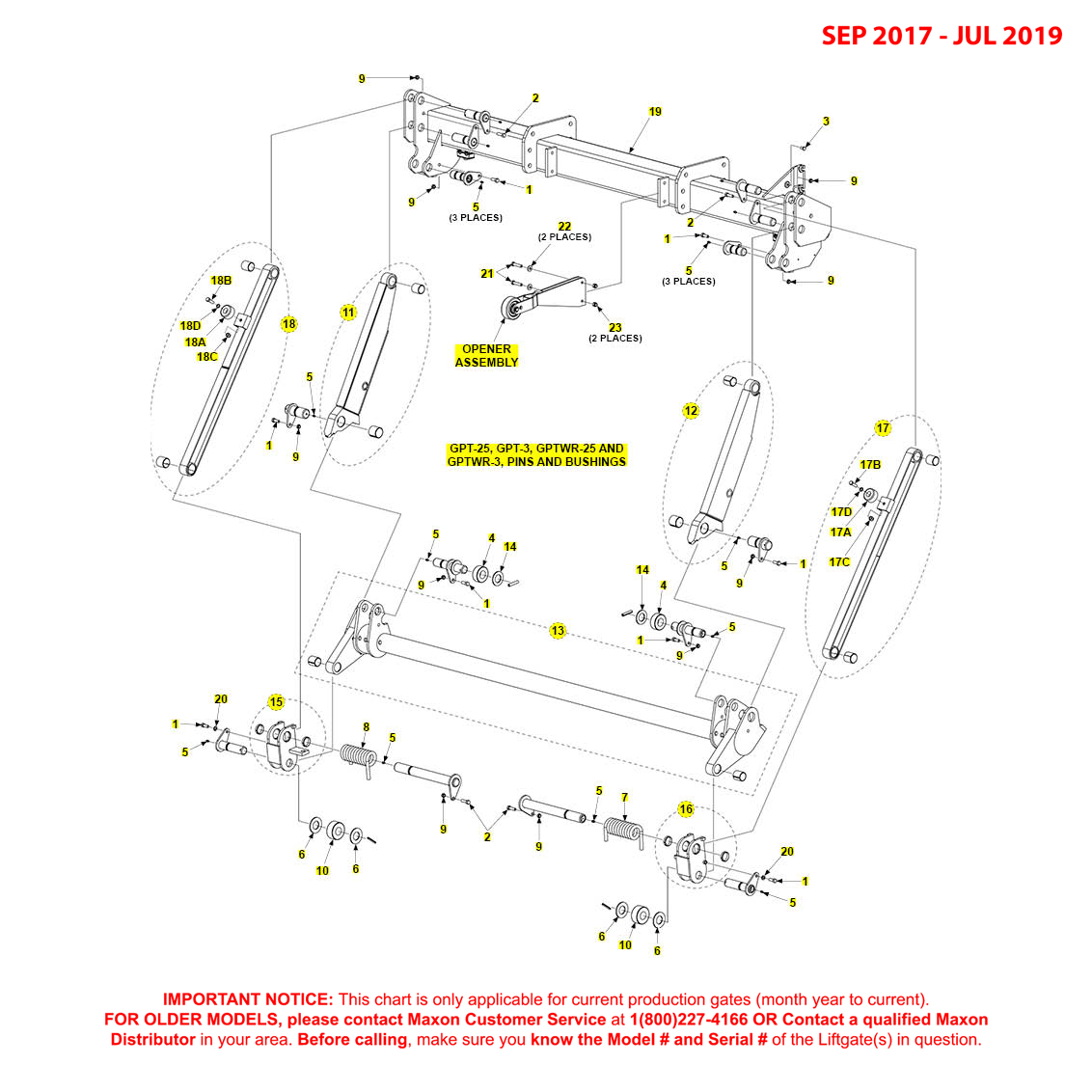

Maxon GPT-25/3 And GPTWR-25/3 (Sep 2017 - Jul 19) Main Assembly Diagram
,

Maxon GPT-25/3 And GPTWR-25/3 (Sep 2017 – Jul 19) Main Assembly Diagram

SKU: GPT25-GPT3-GPTWR25-GPTWR3-SEP17-JUL19-MA-DG Categories: ,
ID Image Title SKU Price Quantity Add to Cart
3Maxon 900009-1 - Screw Cap 5/16-18 X 5/8 Inch GR8 ZCMaxon 900009-1 - Screw Cap 5/16-18 X 5/8 Inch GR8 ZC900009-1-MAXO$0.30
4Maxon 282780-01 - Roller P/F SPRT 2.5 OD X 1.27 ID Inch GPT-25/3Maxon 282780-01 - Roller P/F SPRT 2.5 OD X 1.27 ID Inch GPT-25/3282780-01-MAXO$9.63
5Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
6Maxon 902013-20 - Washer Flat 1-1/4 Inch ZCMaxon 902013-20 - Washer Flat 1-1/4 Inch ZC902013-20-MAXO$2.51
7Maxon 226363-01 - Torsion Spring (LH)Maxon 226363-01 - Torsion Spring (LH)226363-01-MAXO$70.67
8Maxon 226363-02 - Torsion Spring (RH)Maxon 226363-02 - Torsion Spring (RH)226363-02-MAXO$70.67
9Maxon 226941 - Nut Nylon Lock 3/8-24 Thin ZincMaxon 226941 - Nut Nylon Lock 3/8-24 Thin Zinc226941-MAXO$0.33
10Maxon 282780-03 - Roller Shackle 2.75 OD X 1.27 ID GPT-25/3Maxon 282780-03 - Roller Shackle 2.75 OD X 1.27 ID GPT-25/3282780-03-MAXO$12.33
11Maxon 285630-01G - Lift Arm Assembly LH GPT-25/3 GALVMaxon 285630-01G - Lift Arm Assembly LH GPT-25/3 GALV285630-01G-MAXO$473.37
12Maxon 285630-02G - Lift Arm Assembly RH GPT-25/3 GALVMaxon 285630-02G - Lift Arm Assembly RH GPT-25/3 GALV285630-02G-MAXO$473.37
13Maxon 285631-01G - GPT-25/3 Galvanized Lift Frame AssemblyMaxon 285631-01G - GPT-25/3 Galvanized Lift Frame Assembly285631-01G-MAXO$1,613.63
14Maxon 264272 - Flat Washer 2.25 OD X 1.28 ID InchMaxon 264272 - Flat Washer 2.25 OD X 1.28 ID Inch264272-MAXO$1.94
15Maxon 283645-01G - Shackle Assembly LH GALMaxon 283645-01G - Shackle Assembly LH GAL283645-01G-MAXO$193.32
16Maxon 283645-02G - Shackle Assembly RH GALMaxon 283645-02G - Shackle Assembly RH GAL283645-02G-MAXO$193.32
17Maxon 267712-04 - PRL Arm and F/S Stop Assembly RH GALVMaxon 267712-04 - PRL Arm and F/S Stop Assembly RH GALV267712-04-MAXO$314.09
18Maxon 267708-01 - Nylon BumperMaxon 267708-01 - Nylon Bumper267708-01-MAXO$24.17
18Maxon 267712-03 - PRL ARM and F/S Stop Assembly LH GALVMaxon 267712-03 - PRL ARM and F/S Stop Assembly LH GALV267712-03-MAXO$296.87
18Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZCMaxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC900014-5-MAXO$0.72
18Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
18Maxon 902000-10 - Washer Flat .375 X .063 THKMaxon 902000-10 - Washer Flat .375 X .063 THK902000-10-MAXO$0.36
19Maxon 298787-01G - Main Frame Weldment GPT-25/3 GMaxon 298787-01G - Main Frame Weldment GPT-25/3 G298787-01G-MAXO$1,680.90
20Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
21Maxon 900014-7 - Screw Hex Cap 0.38-16 X 1.75 Inch - G8 - ZCMaxon 900014-7 - Screw Hex Cap 0.38-16 X 1.75 Inch - G8 - ZC900014-7-MAXO$0.90
22Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18
23Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
