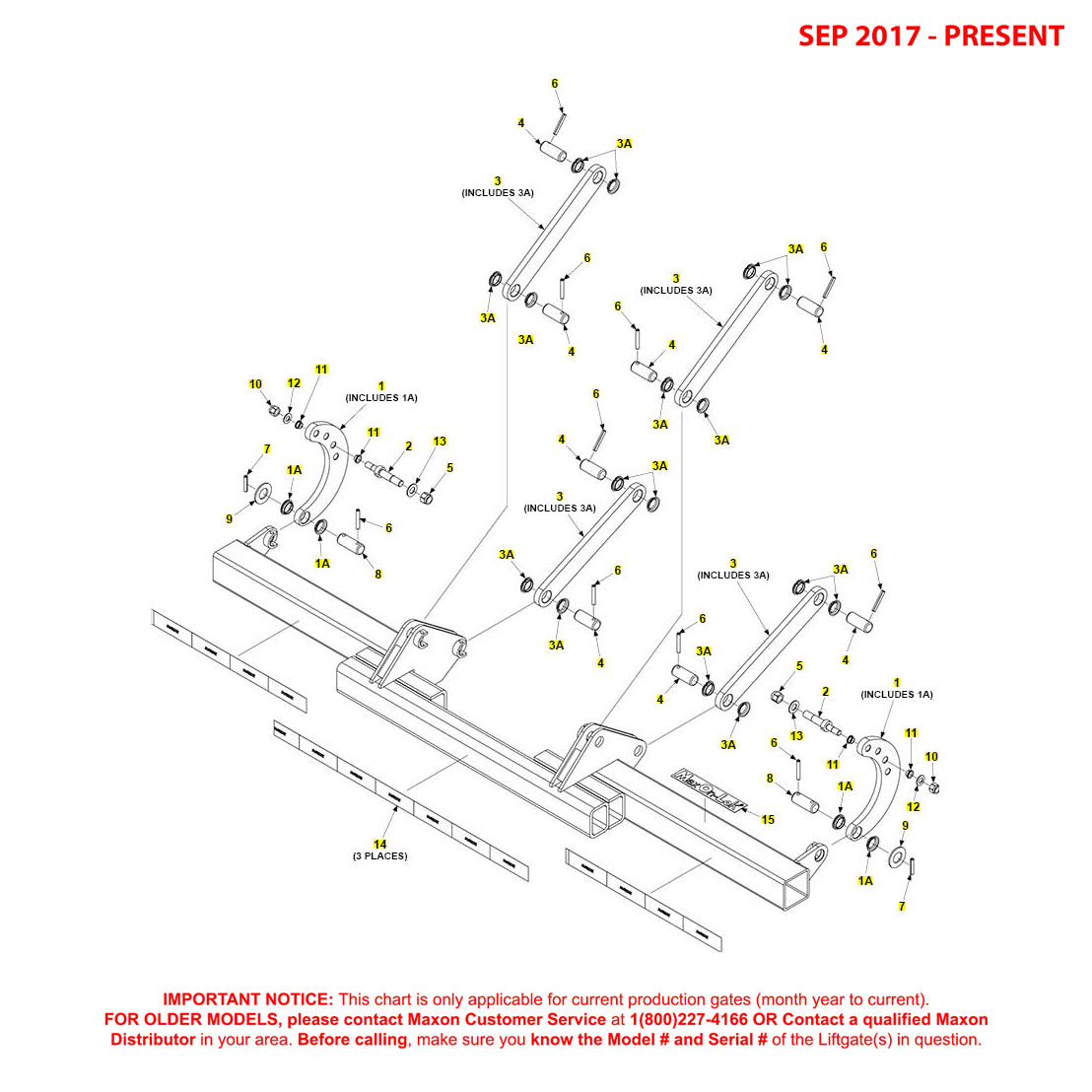

Maxon GPT-25 And GPT-3 (Sep 2017 - Present) DOK-LOK Diagram
, , ,

Maxon GPT-25 And GPT-3 (Sep 2017 – Present) DOK-LOK Diagram

SKU: GPT25-GPT3-SEP17-PRES-DL-DG Categories: , , ,
ID Image Title SKU Price Quantity Add to Cart
0Maxon 269900-01G-101 - Kit DOK-LOK 96 Inch GPT-25/3 GMaxon 269900-01G-101 - Kit DOK-LOK 96 Inch GPT-25/3 G269900-01G-101-MAXO$4,432.35
0Maxon 269900-02G-101 - Kit DOK-LOK 102 Inch GPT-25/3 GMaxon 269900-02G-101 - Kit DOK-LOK 102 Inch GPT-25/3 G269900-02G-101-MAXO$4,493.78
2Maxon 269681-02 - Pin Bracket HolderMaxon 269681-02 - Pin Bracket Holder269681-02-MAXO$50.06
3Maxon 908007-01 - Bearing Flanged 1.25 SHFTMaxon 908007-01 - Bearing Flanged 1.25 SHFT908007-01-MAXO$56.97
4Maxon 281746-02 - Pin 1.25 X 3.0 LGMaxon 281746-02 - Pin 1.25 X 3.0 LG281746-02-MAXO$21.98
5Maxon 903127-01 - Nut Nylon Insert .75-10UNC GR8 ZCMaxon 903127-01 - Nut Nylon Insert .75-10UNC GR8 ZC903127-01-MAXO$1.23
6Maxon 904717-08 - Roll Pin - 0.38 X 2.5 ZincMaxon 904717-08 - Roll Pin - 0.38 X 2.5 Zinc904717-08-MAXO$0.93
7Maxon 904717-06 - ZN Roll Pin - 0.38 x 2 InchesMaxon 904717-06 - ZN Roll Pin - 0.38 x 2 Inches904717-06-MAXO$0.60
9Maxon 902013-20 - Washer Flat 1-1/4 Inch ZCMaxon 902013-20 - Washer Flat 1-1/4 Inch ZC902013-20-MAXO$2.51
11Maxon 908217-01 - Bearing FLNGD Self LUB .63 DIA SH X .38 LGMaxon 908217-01 - Bearing FLNGD Self LUB .63 DIA SH X .38 LG908217-01-MAXO$5.06
12Maxon 902000-18 - Flat Washer .625 .063 THKMaxon 902000-18 - Flat Washer .625 .063 THK902000-18-MAXO$0.38
13Maxon 902000-20 - Flat Washer - .750 .090 Inch THKMaxon 902000-20 - Flat Washer - .750 .090 Inch THK902000-20-MAXO$1.31
14Maxon 908150-01 - Tape - Conspicuity - Maxon (UOM ROLL 150FT PER)Maxon 908150-01 - Tape - Conspicuity - Maxon (UOM ROLL 150FT PER)908150-01-MAXO$342.27

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
