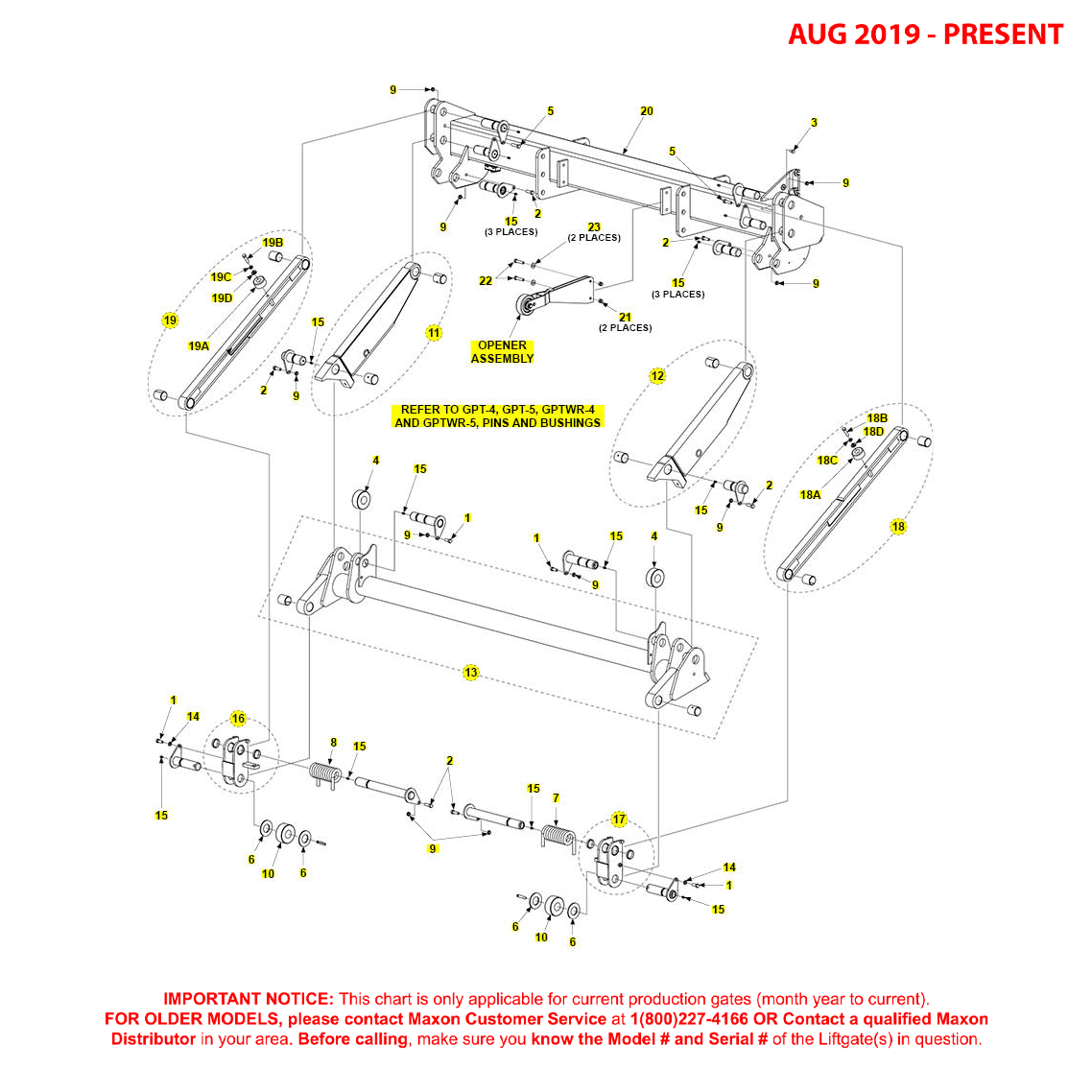

Maxon GPT-4/5 And GPTWR-4/5 (Aug 2019 - Present) Main Assembly Diagram
,

Maxon GPT-4/5 And GPTWR-4/5 (Aug 2019 – Present) Main Assembly Diagram

SKU: GPT4-GPT5-GPTWR4-GPTWR5-AUG19-PRES-MA-DG Categories: ,
ID Image Title SKU Price Quantity Add to Cart
3Maxon 900009-1 - Screw Cap 5/16-18 X 5/8 Inch GR8 ZCMaxon 900009-1 - Screw Cap 5/16-18 X 5/8 Inch GR8 ZC900009-1-MAXO$0.30
4Maxon 282780-02 - Roller P/F SPRT 3.13 OD X 1.4 ID GPT-4/5Maxon 282780-02 - Roller P/F SPRT 3.13 OD X 1.4 ID GPT-4/5282780-02-MAXO$16.46
6Maxon 902013-21 - Flat Washer 1-3/8 Inch ZCMaxon 902013-21 - Flat Washer 1-3/8 Inch ZC902013-21-MAXO$4.53
7Maxon 226363-01 - Torsion Spring (LH)Maxon 226363-01 - Torsion Spring (LH)226363-01-MAXO$70.67
8Maxon 226363-02 - Torsion Spring (RH)Maxon 226363-02 - Torsion Spring (RH)226363-02-MAXO$70.67
9Maxon 226941 - Nut Nylon Lock 3/8-24 Thin ZincMaxon 226941 - Nut Nylon Lock 3/8-24 Thin Zinc226941-MAXO$0.33
10Maxon 282780-04 - Roller Shackle 3.25 OD X 1.40 ID GPT-4/5Maxon 282780-04 - Roller Shackle 3.25 OD X 1.40 ID GPT-4/5282780-04-MAXO$19.16
11Maxon 295912-01G - Lift Arm Assembly LH GPT-4/5 GALVMaxon 295912-01G - Lift Arm Assembly LH GPT-4/5 GALV295912-01G-MAXO$444.65
12Maxon 295912-02G - Lift Arm Assembly RH GPT-4/5 GALVMaxon 295912-02G - Lift Arm Assembly RH GPT-4/5 GALV295912-02G-MAXO$434.40
13Maxon 295909-01G - Lift Frame Assembly GPTB-4/5 GMaxon 295909-01G - Lift Frame Assembly GPTB-4/5 G295909-01G-MAXO$1,476.15
15Maxon 224342 - 1/4 Self Drill Grease FittingMaxon 224342 - 1/4 Self Drill Grease Fitting224342-MAXO$0.45
16Maxon 287025-01G - Shackle Assembly LH GPTB-4/5 GALMaxon 287025-01G - Shackle Assembly LH GPTB-4/5 GAL287025-01G-MAXO$212.37
17Maxon 287025-02G - Shackle Assembly RH GPTB-4/5 GALMaxon 287025-02G - Shackle Assembly RH GPTB-4/5 GAL287025-02G-MAXO$212.37
18Maxon 268232-02G - Parallel Arm Assembly RH GALMaxon 268232-02G - Parallel Arm Assembly RH GAL268232-02G-MAXO$233.81
18Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
19Maxon 267708-01 - Nylon BumperMaxon 267708-01 - Nylon Bumper267708-01-MAXO$24.17
19Maxon 268232-01G - Parallel Arm Assembly LH GALMaxon 268232-01G - Parallel Arm Assembly LH GAL268232-01G-MAXO$233.81
19Maxon 900014-6 - Screw Hex Cap .38-16 X 1.50 Inch G8 ZCMaxon 900014-6 - Screw Hex Cap .38-16 X 1.50 Inch G8 ZC900014-6-MAXO$0.65
19Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
21Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
22Maxon 900014-7 - Screw Hex Cap 0.38-16 X 1.75 Inch - G8 - ZCMaxon 900014-7 - Screw Hex Cap 0.38-16 X 1.75 Inch - G8 - ZC900014-7-MAXO$0.90
23Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
