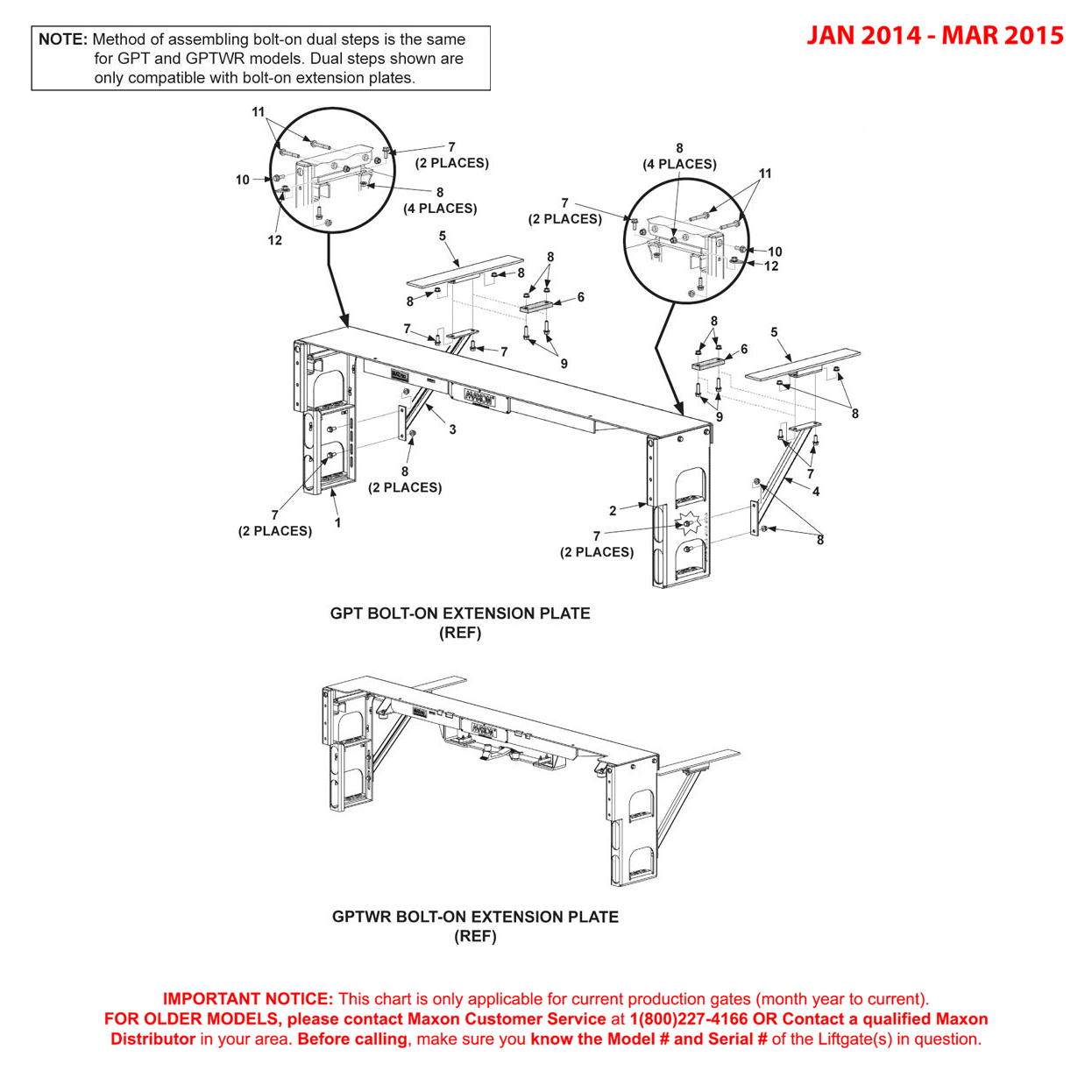

Maxon GPT And GPTWR (Jan 2014 - Mar 2015) Dual Steps With Oval Lights And NO Bumpers Diagram
,

Maxon GPT And GPTWR (Jan 2014 – Mar 2015) Dual Steps With Oval Lights And NO Bumpers Diagram

SKU: GPT-GPTWR-JAN14-MAR15-DS-OL-NOB-DG Categories: ,
ID Image Title SKU Price Quantity Add to Cart
1Maxon 287034-01G - Dock Bumper Weldment D/Step OVL Light GPTB LH GALMaxon 287034-01G - Dock Bumper Weldment D/Step OVL Light GPTB LH GAL287034-01G-MAXO$601.79
1Maxon 287034-01 - Dock Bumper Weldment - D/Step - Oval Light - GPTB - LHMaxon 287034-01 - Dock Bumper Weldment - D/Step - Oval Light - GPTB - LH287034-01-MAXO$445.91
2Maxon 287034-02G - Dock Bumper Weldment D/Step OVL Light GPTB RH GALMaxon 287034-02G - Dock Bumper Weldment D/Step OVL Light GPTB RH GAL287034-02G-MAXO$601.79
2Maxon 287034-02 - Dock Bumper Weldment - D/Step - Oval Light - GPTB - RHMaxon 287034-02 - Dock Bumper Weldment - D/Step - Oval Light - GPTB - RH287034-02-MAXO$445.91
3Maxon 283990-01 - Support Weldment - Left HandMaxon 283990-01 - Support Weldment - Left Hand283990-01-MAXO$126.68
3Maxon 283990-03 - Support Weldment LH GALVMaxon 283990-03 - Support Weldment LH GALV283990-03-MAXO$109.38
4Maxon 283990-02 - Support Weldment - Right HandMaxon 283990-02 - Support Weldment - Right Hand283990-02-MAXO$126.68
4Maxon 283990-04 - Support Weldment RH GALVMaxon 283990-04 - Support Weldment RH GALV283990-04-MAXO$110.97
5Maxon 283993-01G - Channel Mounting Weldment - GalvanizedMaxon 283993-01G - Channel Mounting Weldment - Galvanized283993-01G-MAXO$113.61
5Maxon 283993-01 - Channel Mounting WeldmentMaxon 283993-01 - Channel Mounting Weldment283993-01-MAXO$98.72
6Maxon 283998-01 - Spacer JumperMaxon 283998-01 - Spacer Jumper283998-01-MAXO$36.96
6Maxon 283998-02 - Spacer Jumper - GalvanizedMaxon 283998-02 - Spacer Jumper - Galvanized283998-02-MAXO$53.03
7Maxon 901024-1 - Bolt Hex Frame .5-13 X 1.25 Inch LGMaxon 901024-1 - Bolt Hex Frame .5-13 X 1.25 Inch LG901024-1-MAXO$2.37
8Maxon 901023 - Flange Lock NutMaxon 901023 - Flange Lock Nut901023-MAXO$1.29
9Maxon 901024-3 - Bolt Hex Frame .5-13 X 2.25 Inch LGMaxon 901024-3 - Bolt Hex Frame .5-13 X 2.25 Inch LG901024-3-MAXO$5.97
10Maxon 901024-5 - Bolt Hex Frame 0.5-13 X 1.50 Inch LGMaxon 901024-5 - Bolt Hex Frame 0.5-13 X 1.50 Inch LG901024-5-MAXO$1.55
11Maxon 901024-10 - Bolt Hex Frame 0.5-13 X 3.5 Inch LGMaxon 901024-10 - Bolt Hex Frame 0.5-13 X 3.5 Inch LG901024-10-MAXO$2.73
12Maxon 283700-01 - Tear Drop WeldmentMaxon 283700-01 - Tear Drop Weldment283700-01-MAXO$5.93

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
