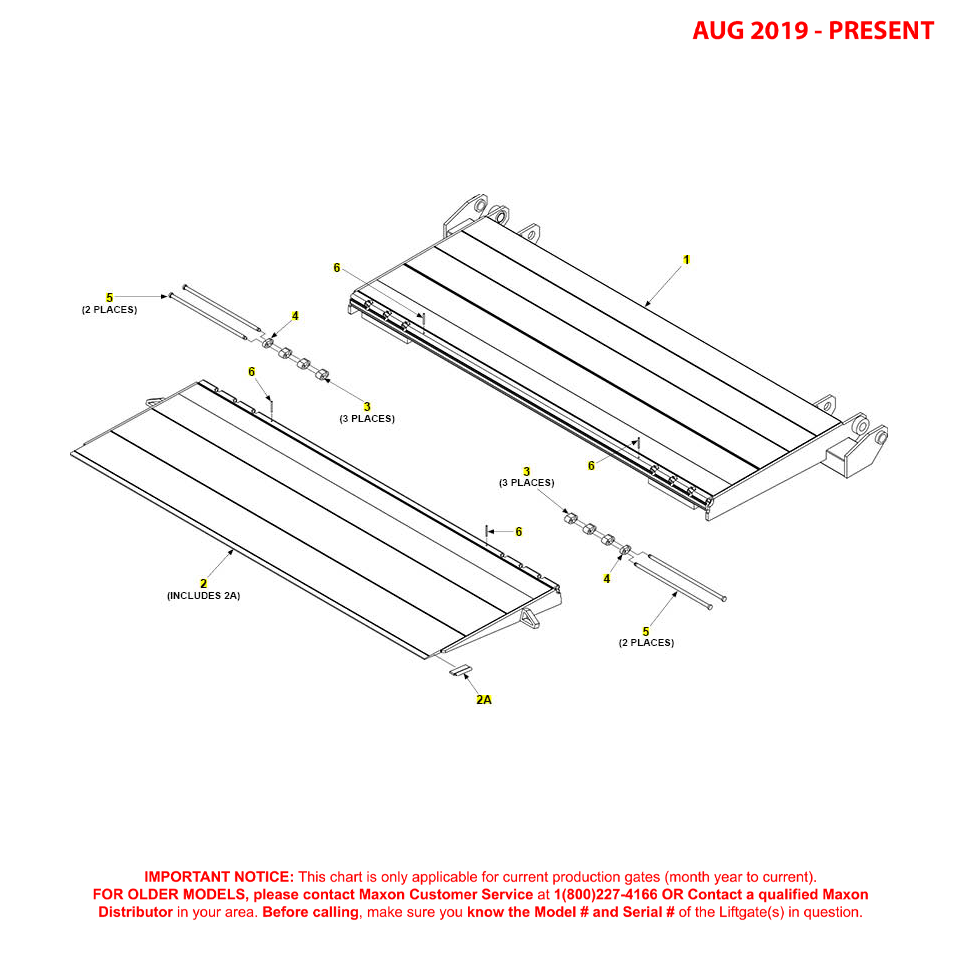

Maxon GPT (Aug 2019 - Present) Platform Flipover Assembly Diagram
,

Maxon GPT (Aug 2019 – Present) Platform Flipover Assembly Diagram

SKU: GPT-AUG19-PRES-PFFOA-DG Categories: ,
ID Image Title SKU Price Quantity Add to Cart
0Maxon 286100-101 - Aluminum Platform Fold-Out Assembly (No Cart Stops) KNRLMaxon 286100-101 - Aluminum Platform Fold-Out Assembly (No Cart Stops) KNRL286100-101-MAXO$3,311.10
1Maxon 286101-101 - P/F Weldment AL GPT MaxGripMaxon 286101-101 - P/F Weldment AL GPT MaxGrip286101-101-MAXO$1,857.38
2Maxon 265819-01 - Handle-Weldment AL F/OMaxon 265819-01 - Handle-Weldment AL F/O265819-01-MAXO$20.94
2Maxon 286103-101 - F/O Weldment AL NO C/S GPT MaxGripMaxon 286103-101 - F/O Weldment AL NO C/S GPT MaxGrip286103-101-MAXO$2,004.60
3Maxon 311046-10 - Link Spacer 1 LGMaxon 311046-10 - Link Spacer 1 LG311046-10-MAXO$8.37
4Maxon 311046-11 - Link Spacer .50 LGMaxon 311046-11 - Link Spacer .50 LG311046-11-MAXO$7.44
5Maxon 285963-02 - Pin Hinge Assembly 16.76Maxon 285963-02 - Pin Hinge Assembly 16.76285963-02-MAXO$56.31
6Maxon 904719-17 - Pin Roll .188 X 2 Inch LG SSMaxon 904719-17 - Pin Roll .188 X 2 Inch LG SS904719-17-MAXO$0.69

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
