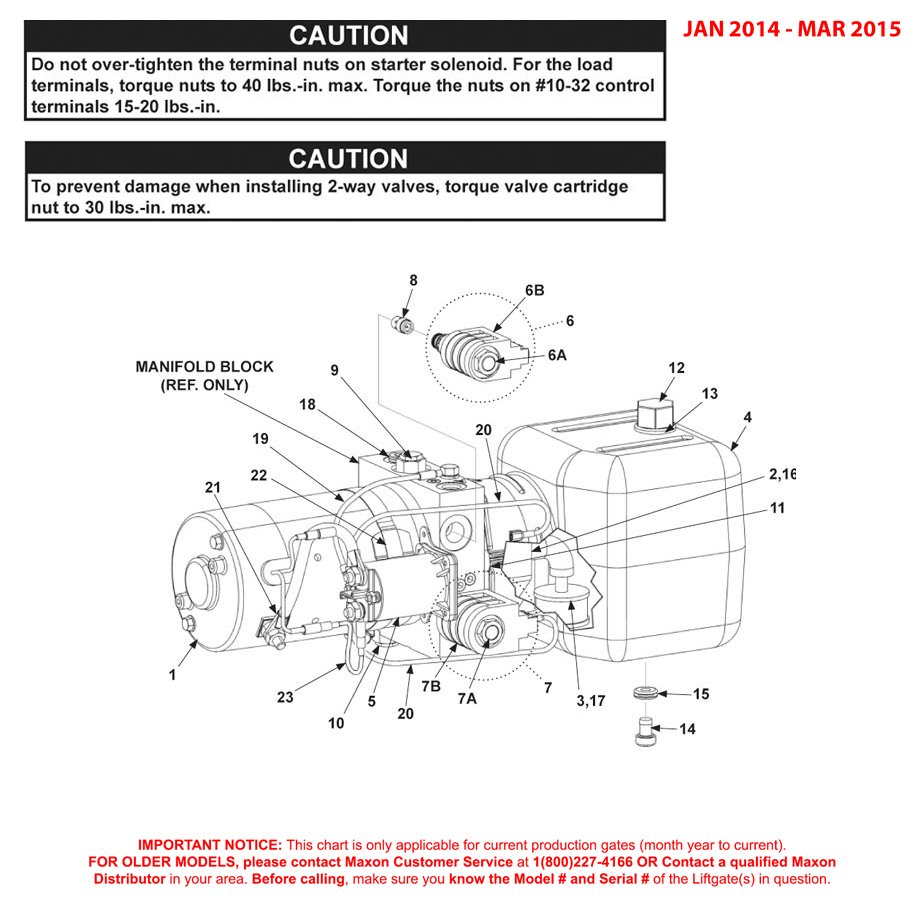

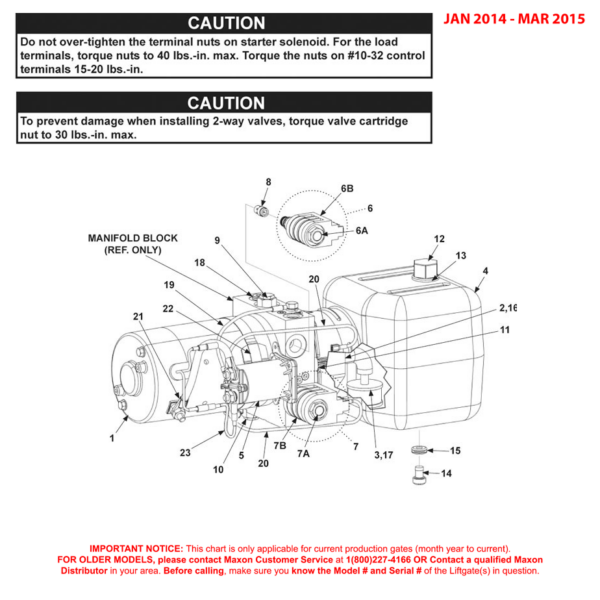

Maxon GPT (Jan 2014 - Mar 2015) 12VDC Power Unit Diagram

Maxon GPT (Jan 2014 – Mar 2015) 12VDC Power Unit Diagram

SKU: GPT-JAN14-MAR15-12VDC-PU-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 268011-01 - Motor 12VDC Heavy DutyMaxon 268011-01 - Motor 12VDC Heavy Duty268011-01-MAXO$520.70
3Maxon 290034 - Filter Pump InletMaxon 290034 - Filter Pump Inlet290034-MAXO$9.54
4Maxon 268020-01 - Reservoir SQ CUT HORIZ 1GALMaxon 268020-01 - Reservoir SQ CUT HORIZ 1GAL268020-01-MAXO$82.17
5Maxon 284080-01 - Switch Solenoid AssemblyMaxon 284080-01 - Switch Solenoid Assembly284080-01-MAXO$33.11
6Maxon 290043 - Valve Assembly 2 Way Double SpadeMaxon 290043 - Valve Assembly 2 Way Double Spade290043-MAXO$134.27
6Maxon 290044 - Valve Poppet 2 Way N/ClosedMaxon 290044 - Valve Poppet 2 Way N/Closed290044-MAXO$117.47
6Maxon 290045 - Coil Double Spade 2WAYMaxon 290045 - Coil Double Spade 2WAY290045-MAXO$33.81
7Maxon 290046 - Valve Assembly 4WAY Double SpadeMaxon 290046 - Valve Assembly 4WAY Double Spade290046-MAXO$161.58
7Maxon 290047 - Valve Cartridge 4 WayMaxon 290047 - Valve Cartridge 4 Way290047-MAXO$158.60
7Maxon 290048 - Coil Double Spade 3/4 WayMaxon 290048 - Coil Double Spade 3/4 Way290048-MAXO$52.19
8Maxon 268017-01 - Valve Flow Control 4GPMMaxon 268017-01 - Valve Flow Control 4GPM268017-01-MAXO$54.87
9Maxon 906738-02 - Cartridge Relief Valve HPMaxon 906738-02 - Cartridge Relief Valve HP906738-02-MAXO$48.44
10Maxon 268174-01 - Relief Valve Adjust 1100PSIMaxon 268174-01 - Relief Valve Adjust 1100PSI268174-01-MAXO$46.68
11Maxon 290061 - Seal Square Cut PL ReservoirMaxon 290061 - Seal Square Cut PL Reservoir290061-MAXO$5.70
12Maxon 280806-01 - Breather FillerMaxon 280806-01 - Breather Filler280806-01-MAXO$6.32
13Maxon 908016-01 - Rubber Grommet .60 IDMaxon 908016-01 - Rubber Grommet .60 ID908016-01-MAXO$2.69
14Maxon 908017-01 - Drain Port PlugMaxon 908017-01 - Drain Port Plug908017-01-MAXO$3.36
15Maxon 908018-01 - Rubber Grommet .31 IDMaxon 908018-01 - Rubber Grommet .31 ID908018-01-MAXO$1.94
16Maxon 260261 - Oil Seal - PumpMaxon 260261 - Oil Seal - Pump260261-MAXO$6.32
17Maxon 290020 - O-Ring Kepner Check ValveMaxon 290020 - O-Ring Kepner Check Valve290020-MAXO$7.14
18Maxon 261067 - Plug SAE #6 O RingMaxon 261067 - Plug SAE #6 O Ring261067-MAXO$6.81
19Maxon 268027-01 - Wire Assembly 18GA #10RING-.31RINGMaxon 268027-01 - Wire Assembly 18GA #10RING-.31RING268027-01-MAXO$4.95
20Maxon 268016-01 - Wire Assembly #10 Ring/Q.DISCMaxon 268016-01 - Wire Assembly #10 Ring/Q.DISC268016-01-MAXO$9.05
21Maxon 280543 - Cable AssemblyMaxon 280543 - Cable Assembly280543-MAXO$7.53
22Maxon 268019-01 - Band Clamp Start Switch MountMaxon 268019-01 - Band Clamp Start Switch Mount268019-01-MAXO$10.79

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
