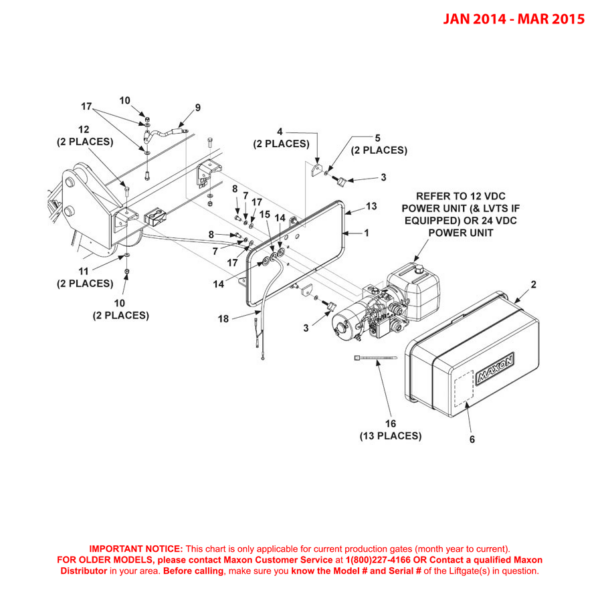

Maxon GPT (Jan 2014 - Mar 2015) Pump Assembly Diagram

Maxon GPT (Jan 2014 – Mar 2015) Pump Assembly Diagram

SKU: GPT-JAN14-MAR15-PA-DG Category:
ID Image Title SKU Price Quantity Add to Cart
1Maxon 287012-01G - PL Weldment GPTB Pump Mount GMaxon 287012-01G - PL Weldment GPTB Pump Mount G287012-01G-MAXO$210.47
1Maxon 287012-01 - PL Weldment GPTB Pump MountMaxon 287012-01 - PL Weldment GPTB Pump Mount287012-01-MAXO$180.83
2Maxon 281038-02 - Horizontal Pump CoverMaxon 281038-02 - Horizontal Pump Cover281038-02-MAXO$47.03
3Maxon 286729-01 - Knob/Stud AssemblyMaxon 286729-01 - Knob/Stud Assembly286729-01-MAXO$19.61
4Maxon 281062-02 - Flat Holder 1.56 LGMaxon 281062-02 - Flat Holder 1.56 LG281062-02-MAXO$6.17
5Maxon 902013-10 - Washer Flat 5/16 Inch SAE ZCMaxon 902013-10 - Washer Flat 5/16 Inch SAE ZC902013-10-MAXO$0.18
7Maxon 902011-4 - Washer Lock 3/8 X .094 ZCMaxon 902011-4 - Washer Lock 3/8 X .094 ZC902011-4-MAXO$0.15
8Maxon 900014-3 - Screw Hex Head .38-16 X .75 Inch G8 ZCMaxon 900014-3 - Screw Hex Head .38-16 X .75 Inch G8 ZC900014-3-MAXO$0.54
9Maxon 251871-05 - Cable Assembly X 16 Inch LGMaxon 251871-05 - Cable Assembly X 16 Inch LG251871-05-MAXO$26.88
10Maxon 901002 - Nut Nylon 3/8-16 ZincMaxon 901002 - Nut Nylon 3/8-16 Zinc901002-MAXO$0.36
11Maxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZCMaxon 902001-2 - Flat Washer 3/8 X 1/16 Inch ZC902001-2-MAXO$0.18
12Maxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZCMaxon 900014-5 - Screw Hex Cap - .38-16 X 1.25 G8 ZC900014-5-MAXO$0.72
13Maxon 093203-10 - Neoprene Bulb - Trim Seal - 59.5 Inch LGMaxon 093203-10 - Neoprene Bulb - Trim Seal - 59.5 Inch LG093203-10-MAXO$46.20
14Maxon 266428-04 - Grommet 1.0 Diaph .38 HoleMaxon 266428-04 - Grommet 1.0 Diaph .38 Hole266428-04-MAXO$2.91
15Maxon 266428-12 - Grom 1 DIA PH .374/.31 HolesMaxon 266428-12 - Grom 1 DIA PH .374/.31 Holes266428-12-MAXO$2.75
16Maxon 208153 - Plastic Tie 4 Inch - 18 LBMaxon 208153 - Plastic Tie 4 Inch - 18 LB208153-MAXO$0.11
17Maxon 902013-11 - Flat Washer 3/8 Inch ZCMaxon 902013-11 - Flat Washer 3/8 Inch ZC902013-11-MAXO$0.18
18Maxon 282625-01 - Cable Assembly L/Valve 16/2 X 56 InchMaxon 282625-01 - Cable Assembly L/Valve 16/2 X 56 Inch282625-01-MAXO$83.16

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
