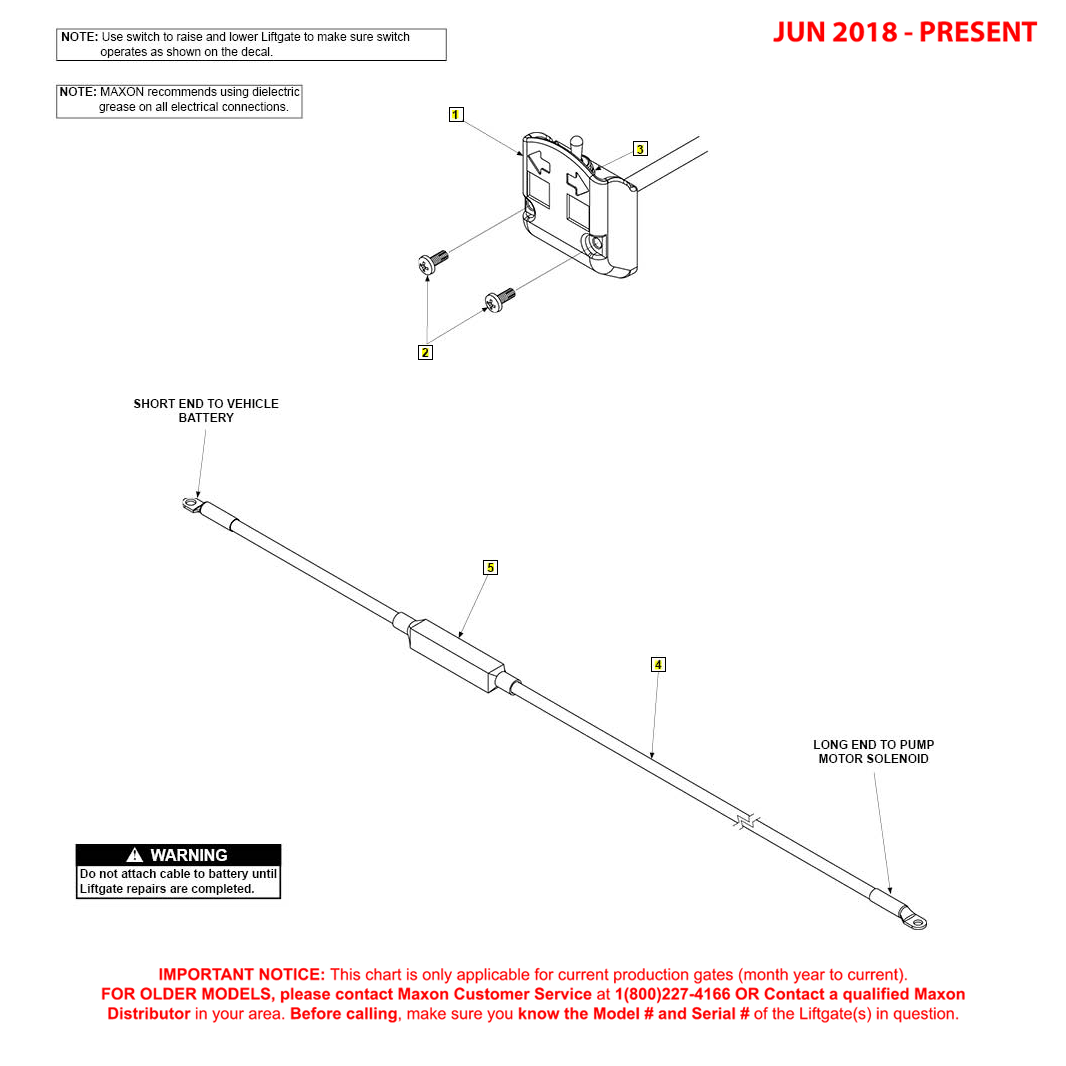

Maxon GPT (Jun 2018 - Present) Control Switch And Power Cable Diagram
,

Maxon GPT (Jun 2018 – Present) Control Switch And Power Cable Diagram

SKU: GPT-JUN18-PRES-CSPC-DG Categories: ,
ID Image Title SKU Price Quantity Add to Cart
1Maxon 296855-01 - Toggle Switch Assembly 138 Inch LGMaxon 296855-01 - Toggle Switch Assembly 138 Inch LG296855-01-MAXO$152.81
2Maxon 900057-7 - Screw Self Tap 10-24 X 1-1/2 Inch PH ZCMaxon 900057-7 - Screw Self Tap 10-24 X 1-1/2 Inch PH ZC900057-7-MAXO$0.15
4Maxon 264422 - Cable Assembly 175 AMPS 38FTMaxon 264422 - Cable Assembly 175 AMPS 38FT264422-MAXO$344.22
5Maxon 264687 - Kit Mega FUSEN 175 AMPSMaxon 264687 - Kit Mega FUSEN 175 AMPS264687-MAXO$47.12

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING! TO HELP YOU IDENTIFY THE DATE RANGE:

  1. LOCATE YOUR SERIAL PLATE on your Liftgate.
  2. LOOK FOR THE ‘SERIAL #’ FIELD and identify the first four digits.
  3. IF your Liftgate was manufactured BEFORE JUNE 2014, your plate will show the Month then the Year.
  4. IF your Liftgate was manufactured AFTER JUNE 2014, your plate will show the Year then the Month.

INCLUDE MODEL AND SERIAL NUMBER WHEN ORDERING!

DUE TO PRODUCTION AND SHIPPING RESTRICTIONS, THERE IS AN $80.00 MINIMUM ORDER REQUIREMENT FOR MAXON PARTS. THIS TOTAL DOES NOT INCLUDE PARTS ORDERED FROM OTHER MANUFACTURERS!
